Chapter 3 DEBIX Installation Guide
A standalone DEBIX enclosure does not include DEBIX product and power adapter, If you
install it by yourself, you need to purchase an additional DEBIX single board computer and
power adapter.
3.1. Installation
The steps for DEBIX installation into the DEBIX enclosure are as follows:
1.

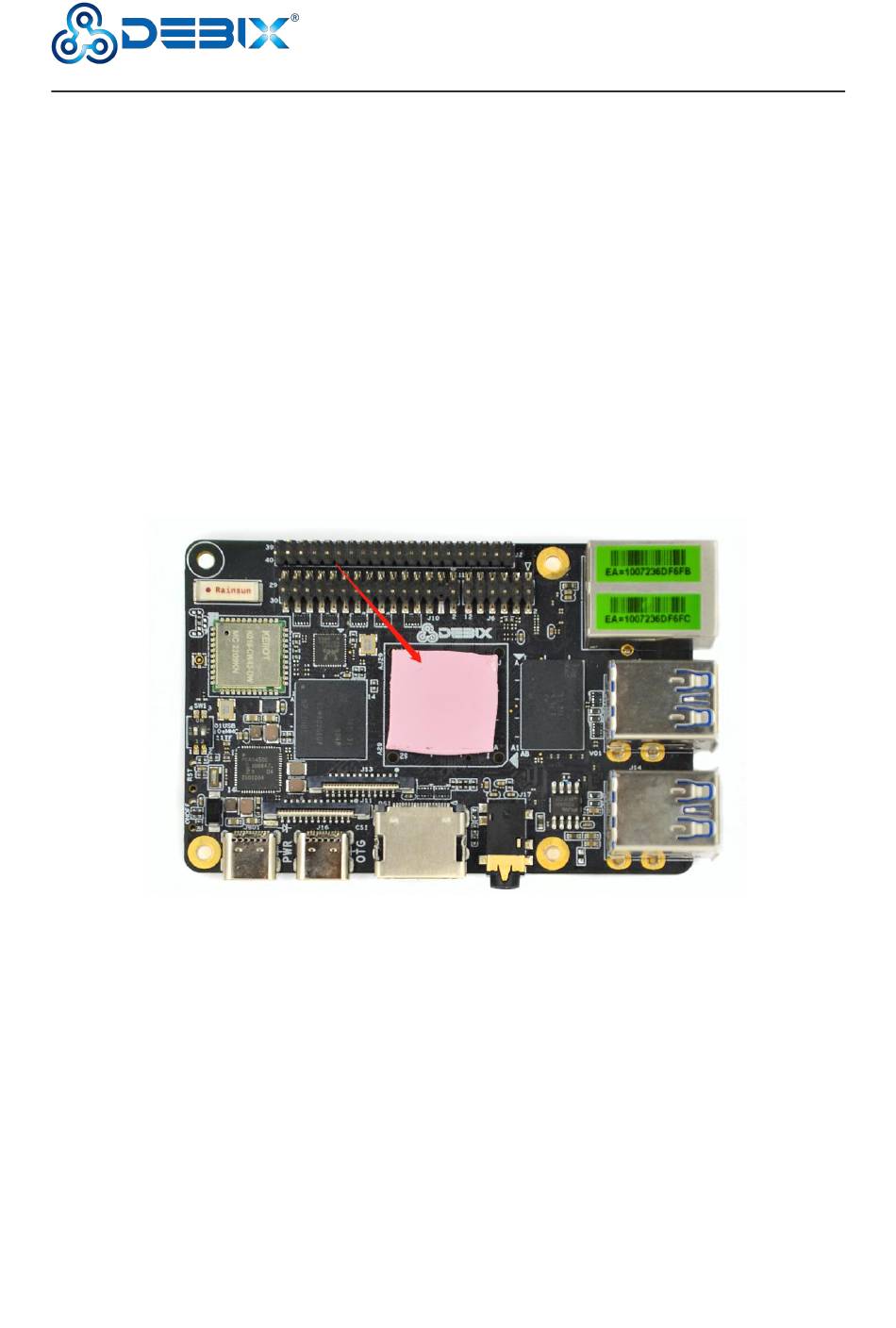

First, paste the CPU thermal conductive rubber pad on the front of the DEBIX board, as
shown in the figure below:
2.
Align with the appropriate and corresponding mounting holes, place the single board
computer into the enclosure, then fix in place with four PM2.5X6 screws, as shown in the
figure below:
www.debix.io
Polyhex Technology Company Limited
Figure 12
15 / 28
