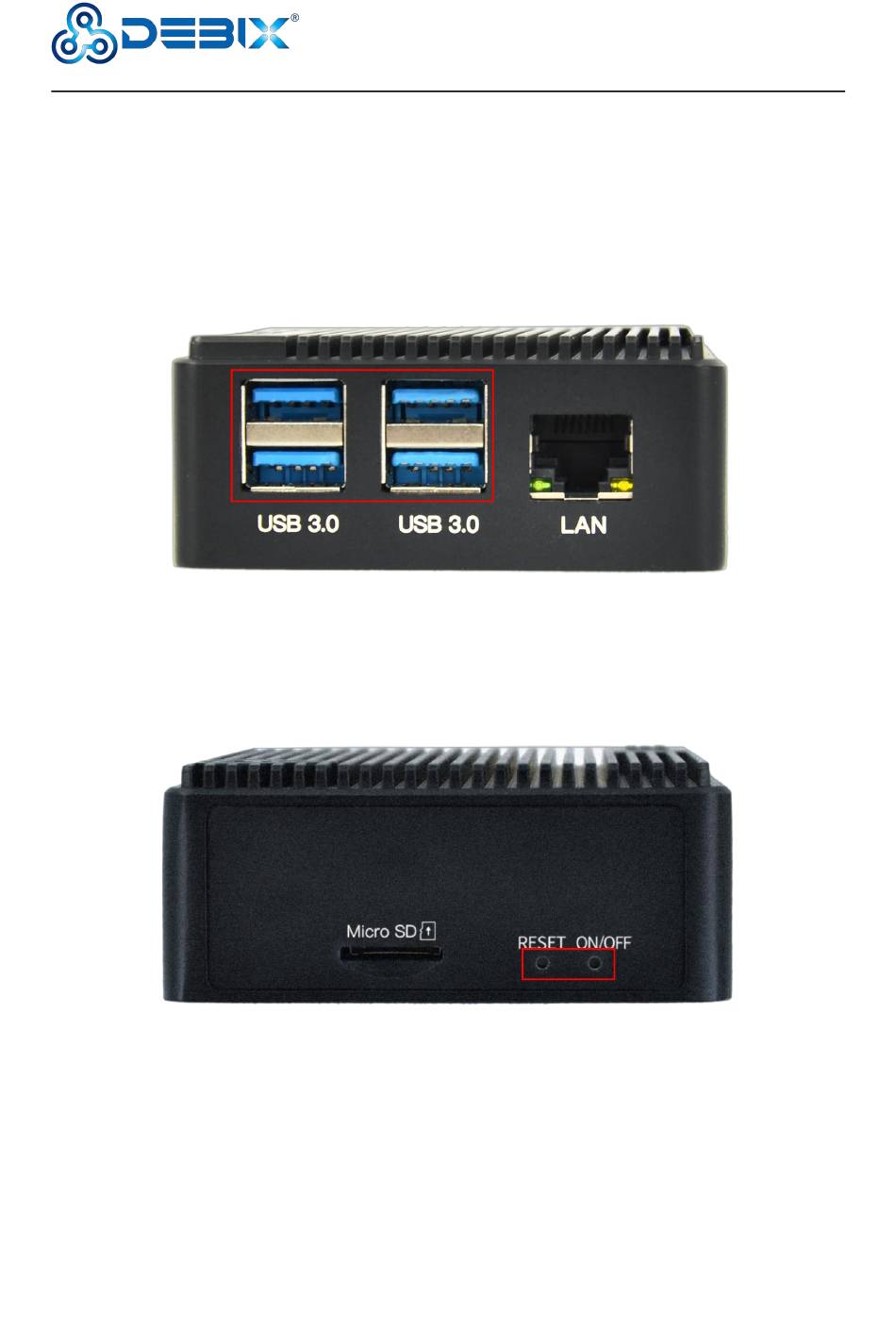

2.3.6. USB Interface
BPC-iMX8MP-01 Industrial Computer has six USB interfaces, supports USB 3.0 and 2.0.
There are two USB 2.0 interfaces with Type-C connectors, one for DC 5V power input and
one for OTG (Figure 7). And another four USB 3.0 interfaces with dual-layer Type-A
connectors, as shown in the figure below.
2.3.7. Key
Reset button: short press to reset the system.
ON/OFF button: short press to hibernate or wake up, long press to power off or on.
www.debix.io
Polyhex Technology Company Limited
Figure 10
Figure 11
14 / 28
