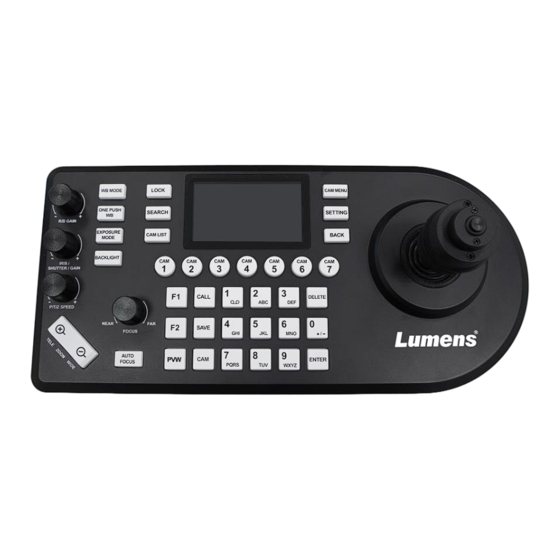

- Page 1 VS-KB21/ VS-KB21N Keyboard controller (Keyboard Controller) User Manual – English Ver. VYI101 [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens https://www.MyLumens.com/support...
-
Page 2: Table Of Contents
Contents Copyright Information ..............................2 Chapter 1 Safety Instructions ............................ 3 Chapter 2 Product Overview ............................4 I/O Introduction ..............................4 Panel function introduction ..........................5 LCD screen display description ........................... 6 Chapter 3 LCD function menu description ....................... 7 Chapter 4 Camera connection .......................... -
Page 3: Copyright Information
Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. -
Page 4: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Always follow these safety instructions when setting up and using this product: 1. Use attachments only as recommended. 2. Use the type of power source indicated on the Keyboard Controller. If you are not sure of the type of power available, consult your distributor or local electricity company for advice. -
Page 5: Chapter 2 Product Overview
Chapter 2 Product Overview 2.1 I/O Introduction No Item Function Descriptions 1 RS-422 port Connect the RS-422 adapter cable that can control up to 7 cameras 2 RS-232 port Connect the RS-232 adapter cable that can control up to 7 cameras Update the keyboard control firmware via a USB disk 3 USB port Use format “FAT32”, “capacity less than 32G”... -
Page 6: Panel Function Introduction
2.2 Panel function introduction No Item Function Descriptions Automatic/manual white balance switch When the setting is automatic white balance, the AUTO indicator will turn on ONE PUSH WB One push white balance EXPOSURE Auto, Iris PRI, Shutter PRI BACKLIGHT Turn on/off back light compensation Lock the control of all image adjustment and rotary buttons LOCK Press and hold for 3 seconds to enable the lock;... -
Page 7: Lcd Screen Display Description
No Item Function Descriptions Letter and number CALL a camera; call a preset position; key in the camera name (LCD menu) keyboard 0 ~ 7 Control LCD menu to execute “delete” action 25 DELETE Control LCD menu to execute “confirm” action 26 ENTER 27 PTZ joystick Control the camera PTZ operation... -
Page 8: Chapter 3 Lcd Function Menu Description
Chapter 3 LCD function menu description 3.1 Access LCD function menu Press the SETTING button on the keyboard to access the LCD function menu Hot Key Camera Item Settings Description Assign the camera number; 7 units can be set at most ... - Page 9 DNS 1 192.168.0.1 Set DNS 1 information DNS 2 8.8.8.8 Set DNS 2 information KEYS Item Settings Description None Home Power Mute Picture Freeze Picture Flip Picture LR_Reverse F1 ~ F2 buttons can be set as shortcut keys separately Tracking Mode Functions may be set as the list displayed to the left F1 ~ F2 Framing Mode...
- Page 10 Joystick Item Settings Description Zoom Enable On / Off Enable/Disable the Joystick control for Zoom On / Off Pan Reverse Enable/Disable the horizontal inversion On / Off Tilt Reverse Enable/Disable the vertical inversion Correction Correct the Joystick direction Tally Item Settings Description Enable the Tally light...
-
Page 11: Chapter 4 Camera Connection
RJ45 to RS-232 / 1. Please refer to the RJ-45 to RS-232 and camera Mini Din RS-232 pin definitions to complete the cable connection This is compatible with Lumens optional accessory VC-AC07, which can be connected via network cable. 2. Camera settings ... -
Page 12: How To Connect Rs-422
4.3 How to Connect RS-422 The 1st Camera The 2nd RJ45 to RS-422 Camera The 7th Camera 1. Please refer to the RJ-45 to RS-422 and camera RS-422 pin definitions to complete the cable connection 2. Camera settings Protocol set to VISCA ... - Page 13 Only VS-KB21N support NDI Press [SEARCH] and select search mode Select the target camera and set the camera information Click [Save] at the bottom and you can check the saved camera at [CAM List] 2. Manual Add ...
-
Page 14: Chapter 5 Web Interface
1. Open the browser, and enter the IP address of the keyboard in the address bar 2. Enter administrator’s account and password For the first-time login, please refer to 5.3.8 System- User Management to change the default password Lumens Keyboard Controller User Name：admin Password：9999(預設) English -... -
Page 15: Web
5.3 Web Page Functions 5.3.1 Login page ○ ○ ○ ○ ○ Item Description User Name Enter user login account (default: admin) Enter user password (default: 9999) User Password For the first-time login, please refer to 5.3.8 System- User Management to change the default password Remember Me Save user name and password. - Page 16 CAM1~7 Support hot key camera 1~7 Click to open the settings page. Setting page Following settings can be configured depending on the protocols. VISCA Alias: Edit camera name Address: Set the address. Baudrate: Set the Baudrate Set Camera Address: When cameras are connected daisy chain, you can set camera address.
- Page 17 Stream URL: Display the stream URL RTSP Auth: Enable/ Disable RTSP authentication User Name: Name for RTSP Auth Password: Password for RTSP Auth ONVIF Alias: Edit camera name IP Address: Enter IP address Account: Enable/ Disable ONVIF account. Support to preview(PVW) camera image when it enabled.
- Page 18 5.3.3 Device Management ○ ○ ○ Item Description Device List Display the device list, and click on a device to edit. Ignored List Display the ignored list, and click on a device to edit. Device List: According to the protocols, enter related information to add a camera.
- Page 19 5.3.5 Network Description Keyboard controller network settings. When the DHCP function is disabled, Network settings can be edited. 5.3.6 Firmware Update Description Display the current firmware version. User can upload a file to update the firmware. Update process takes approximately 3 minutes Do not operate or power off the device during the update to prevent firmware update failure.
- Page 20 5.3.7 System- Configuration File Description Save the configuration as a file. User can import/ export the configuration file. 5.3.8 System-User Management Description Add/ Edit/ Delete user account The default administrator cannot be deleted. Support up to 8 user accounts (administrator + common users). ...
- Page 21 5.3.9 About Description Display device firmware version, serial number, and related information. For technical support, please scan the QRcode at the bottom right for assistance English -...
-
Page 22: Chapter 6 Common Functions
Chapter 6 Common Functions 6.1 Call the camera 6.1.1 Use the number keyboard to call the camera 1. Key in the camera number to be called via the keyboard 2. Press the “CAM” button 6.2 Setup/call/cancel preset position. 6.2.1 Save the preset position 1. -
Page 23: Set The Camera Osd Menu Via The Keyboard
6.3 Set the camera OSD menu via the keyboard 1. Press the “CAM MENU” button on the keyboard 2. Set the camera OSD menu via the PTZ joystick Move the joystick up and down. Switch the menu items/Tune the parameter values ... -
Page 24: Chapter 7 Troubleshooting
Chapter 7 Troubleshooting This Chapter describes questions frequently asked during the use of VS-KB21/ VS-KB21N and suggests methods and solutions. Problems Solutions 1. Please check whether the power button on the back is pressed down After plugging in the power...
