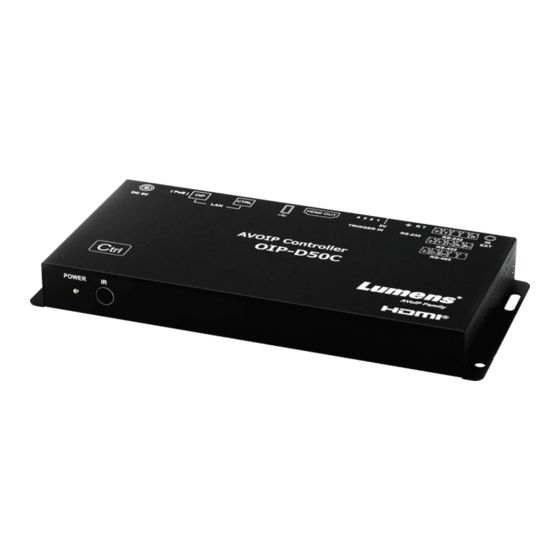

OIP-D50C Telnet_RS-232 command set
No Issue Date
1 2021/07/26 First Version.
2 2021/09/03 Correct the commands.
*Notice:
1. The Telnet_RS-232 command list is for OIP-D50C
2. The yellow highlight
3. The blue highlight
Description
means the latest update.
means the deleted item.
RS154 - OIP-D50C Telnet_RS-232 command set
Apply Firmware
v0.36L
Advertisement
Table of Contents
Related Manuals for Lumens OIP-D50C
Summary of Contents for Lumens OIP-D50C
- Page 1 Apply Firmware 1 2021/07/26 First Version. v0.36L 2 2021/09/03 Correct the commands. *Notice: 1. The Telnet_RS-232 command list is for OIP-D50C 2. The yellow highlight means the latest update. 3. The blue highlight means the deleted item. RS154 - OIP-D50C Telnet_RS-232 command set...
- Page 2 <Note 2> If the unit's IP address is changed then the IP address required for Telnet access will also change accordingly. <Note 3> Commands will not be executed unless followed by a carriage return. Commands are not case-sensitive. RS154 - OIP-D50C Telnet_RS-232 command set...
- Page 3 Show the specified LAN port’s current IP address. Available values for N1: get lan N1 ipaddr 1 [OIP LAN] 2 [CTRL LAN] Show the specified LAN port’s current netmask. get lan N1 netmask Available values for N1: RS154 - OIP-D50C Telnet_RS-232 command set...
- Page 4 1 [3-pin serial port] 2 [5-pin serial port] Set the baud rate of the specified serial port. Available values for N1: set uart N1 baudrate N2 1 [3-pin serial port] 2 [5-pin serial port] RS154 - OIP-D50C Telnet_RS-232 command set...
- Page 5 Set the parity of the specified serial port. Available values for N1: 1 [3-pin serial port] 2 [5-pin serial port] set uart N1 parity N2 Available values for N2: 0 [None] 1 [Odd] 2 [Even] RS154 - OIP-D50C Telnet_RS-232 command set...
- Page 6 Transmit the specified command data via the serial port on the specified Encoder. set tx N1 uart 1 command [N2] N1 = 1~128 [Encoder device ID] N2 = {Command data} [ASCII text] Note: To transmit hex data, each ASCII hex pair (octet) must be RS154 - OIP-D50C Telnet_RS-232 command set...
- Page 7 N1 = {IR ASCII hex data} [Pronto format IR data] Transmit the specified IR data via the IR outputs on all Decoders. set all rx ir command [N1] N1 = {IR ASCII hex data} [Pronto format IR data] RS154 - OIP-D50C Telnet_RS-232 command set...
- Page 8 N1 = 1~128 [Video wall group ID] Execute the specific multiview preset. set multiview preset N1 N1 = 1~128 [Multiview preset ID] Execute the specified macro immediately. set macro N1 run N1 = 1~16 [Macro ID] RS154 - OIP-D50C Telnet_RS-232 command set...
