- Page 1 VS-KB30 Keyboard Controller User Manual - English [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens http://www.MyLumens.com...
-
Page 2: Table Of Contents
How to Connect RS-422 ..............15 How to Connect IP ................15 Chapter 5 Camera Setting Description ............16 Power on VS-KB30 ................16 Instruction on RS-232 Setting ............16 Instruction on RS-422 Setting ............17 Instruction on IP Setting ..............17 Chapter 6 Descriptions of Major Functions .......... - Page 3 Set the PELCO-D Or ONVIF-IP Camera OSD Menu via Keyboard 21 RS422 Set A, Set B Switching ............22 Chapter 7 Troubleshooting................23 upplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information .. 24 English -...
-
Page 4: Copyright Information
Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. -
Page 5: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Always follow these safety instructions when setting up and using the HD Camera: 1. Use attachments only as recommended. 2. Use the type of power source indicated on this product. If you are not sure of the type of power available, consult your distributor or local electricity company for advice. - Page 6 Caution Risk of Electric Shock Please do not open it by yourself. Caution: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to licensed service personnel. This symbol indicates that This symbol indicates that this equipment may contain there are important...
-
Page 7: Chapter 2 Product Overview
Chapter 2 Product Overview 2.1 I/O Introduction No Item Function Descriptions 1 Power button Turn on/off keyboard power 12 V DC power Connect the included DC power supply adapter and the port power cable Firmware update Enable the firmware update mode on the keyboard button Kensington safety Use the safety lock to lock the keyboard for anti-theft... -
Page 8: Panel Function Introduction

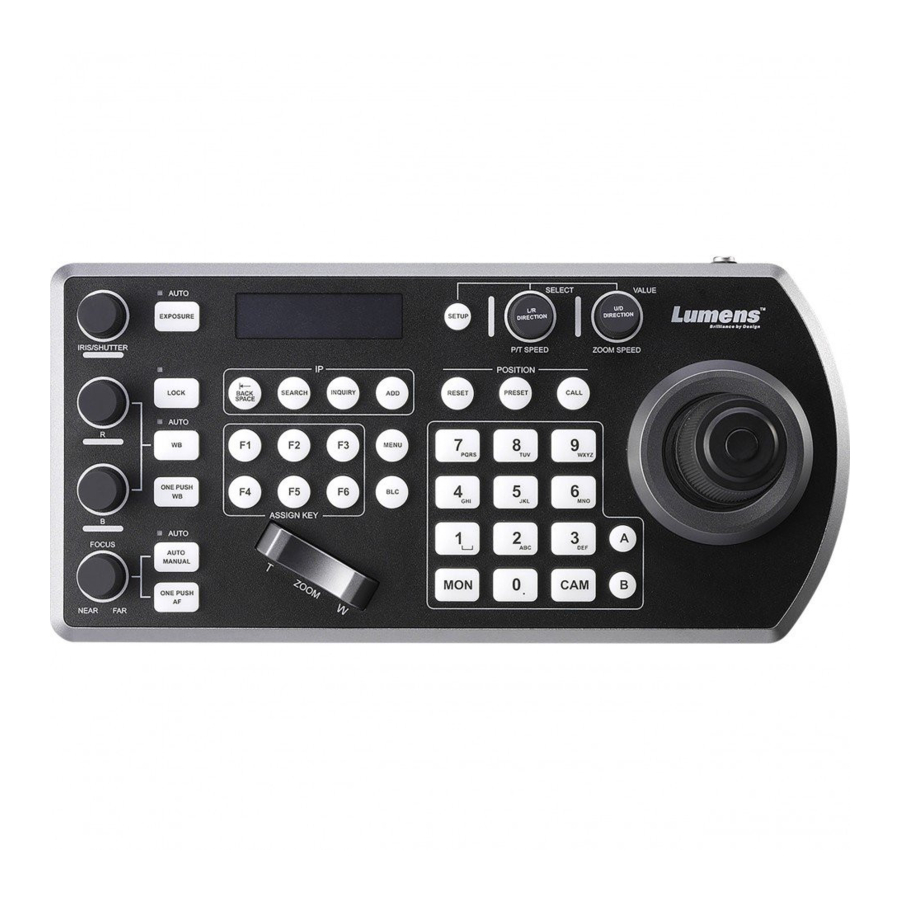

2.2 Panel Function Introduction No Item Function Descriptions Automatic/manual white balance switch When the setting is automatic white balance, the AUTO indicator will turn on Lock the control of all image adjustment and rotary buttons LOCK Press and hold for 3 seconds to enable the lock; press and hold for 3 seconds again to cancel the lock EXPOSURE Auto, Aperture PRI, Shutter PRI... - Page 9 No Item Function Descriptions 10 CALL Call the camera preset position (number key + CALL) Rotate: Adjust the zoom speed/adjustment value (on screen menu) ZOOM SPEED Press: Save (on screen menu) (U/D DIRECTION) Press and hold: Tilt up and down and to reverse the direction 12 IRIS / SHUTTER Adjust the aperture or shutter...
-
Page 10: Lcd Screen Display Description
2.3 LCD Screen Display Description No Item Function Descriptions Camera ID and Display the camera currently under control and the protocol protocol currently in use 2 Camera name Display the specified camera name currently in use 3 IP address Current IP address of the camera If “OK”... -
Page 11: Chapter 3 Lcd Function Menu Description
Chapter 3 LCD Function Menu Description 3.1 Access LCD Function Menu Press the SETUP button on the keyboard to access the LCD function menu. ※ When configuring the LCD menu setting, you must key in the password every time (initial password is 0000) =>... -
Page 12: Keyboard Setting
Item Settings Description User Name admin Access the camera account Password admin Set the camera password Port Select a port to be used by the camera 3.3 Keyboard setting IP Configuration Menu Item Settings Description Specify a static IP or let DHCP to assign an Type STATIC / DHCP IP to the keyboard... - Page 13 FACTORY DEFAULT Item Settings Description Execute the factory reset on the keyboard LCD menu functions After the reset is completed, “Succeed” will FACTORY Yes / No DEFAULT be displayed ※ When executing the factory reset, do not move the PTZ joystick and the ZOOM in/out button ...
- Page 14 MODEL INFO Item Description Display the IP address that controls the keyboard and FW version English -...
-
Page 15: Chapter 4 Camera Connection Description
Din RS232 pin definitions to complete the cable connection [Remark] Please make sure that SYSTEM SWITCH DIP1 and DIP3 on the bottom of Lumens camera are set as OFF (RS232 & baud rate 9600) [Note] VC-AC07 is optional and can be connected via network cable... -
Page 16: How To Connect Rs-422
Lumens camera are set as ON and OFF respectively (RS422 & baud rate 9600) 4.4 How to Connect IP Cat5 network cable Cat5 network cable Cat5 network cable Cat5 network cable Camera 1. Use network cables to connect VS-KB30 and IP camera to the router English -... -
Page 17: Chapter 5 Camera Setting Description
Chapter 5 Camera Setting Description 5.1 Power on VS-KB30 Two types of power supply can be used by VS-KB30 DC 12 V power supply: Please use the included DC power supply adapter and power cable, and press the power button... -
Page 18: Instruction On Rs-422 Setting
Port is set as RS422 Press EXIT to exit 5.4 Instruction on IP Setting 5.4.1 Set VS-KB30 IP address Press SETUP, and select KEYBOARD SETTING => IP CONFIGURATION Type: Select STATIC or DHCP IP Address: If select STATIC, use P/T SPEED to choose the location, input IP address via numbers on the keyboard. - Page 19 If the setting is ONVIF, the user name and password need to be input again. ※If connecting Lumens VC-A50P, the account and password information is as follows: User name: admin Password: 9999 ※ If connecting to other brands of IP cameras, please obtain the account and password from the camera user manuals ...
-
Page 20: Chapter 6 Descriptions Of Major Functions
Chapter 6 Descriptions of Major Functions 6.1 Call the Camera 6.1.1 Use the digital keyboard to call the camera 1. Key in the camera number to be called via keyboard 2. Press the “CAM” button 6.1.2 Call the IP camera via device list 1. -
Page 21: Setup/Call/Cancel Preset Position
6.2 Setup/Call/Cancel Preset Position. 6.2.1 Specify the preset position 1. Relocate the camera to the desired position 2. Enter the desired preset position number, then press and hold the PRESET button for 3 seconds to save Press 3 seconds 6.2.2 Call the preset position 1. -
Page 22: Set The Non-Ip Camera Osd Menu Via Keyboard
Press “RESET” 6.3 Set the Non-IP Camera OSD Menu via Keyboard 1. Press the “MENU” button on the keyboard 2. Set the camera OSD menu via PTZ joystick Move the joystick up and down. Switch the menu items/Tune the parameter values ... - Page 23 6.5 RS422 Set A, Set B Switching 1. Press the A or B buttons to switch between RS422 sets (buttons of the set in use will be lit) English -...
- Page 24 Chapter 7 Troubleshooting This Chapter describes questions frequently asked during the use of VS-KB30 and suggests methods and solutions. Problems Solutions 1. Please check whether the power button on the back is pressed down After plugging in the power correctly supply, VS-KB30 power is not 2.
- Page 25 Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information Manufacturer: Lumens Digital Optics Inc. Product Name: VS-KB30 Model Number: Keyboard Controller Responsible Party - U.S. Contact Information Supplier: Lumens Integration, Inc. 4116 Clipper Court, Fremont, CA 94538, United States e-mail : support@mylumens.com...
