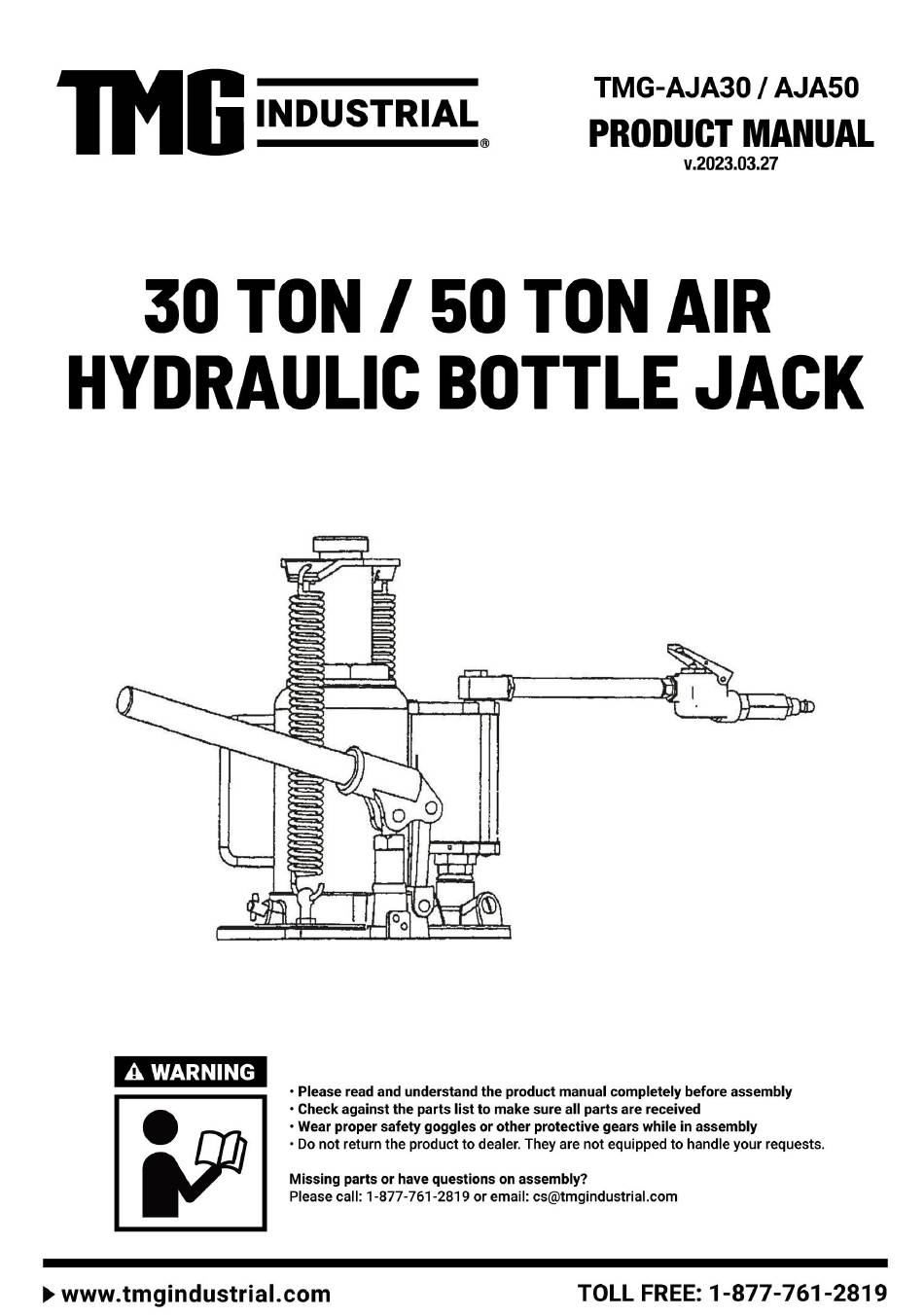

- Page 1 ► www.tmgindustrial.com TOLL FREE:1-877-761-2819...
- Page 2 OPERATION LIFTING 1. Assemble 2 pc. Handle, ensure that spring clips align with slots. 2. Secure the load to prevent inadvertent shifting and movement. 3. Position the jack near desired lift point. 4. Close the release valve by turning it clockwise until it is firmly closed. CAUTION: USE THE HANDLE PROVIDED WITH THIS PRODUCT OR AN AUTHORIZED REPLACEMENT HANDLE TO ENSURE PROPER RELEASE VALVE OPERATION DO NOT USE AN EXTENDER ON THE AIR HOSE NOR THE OPERATING HANDLE.
- Page 3 MAINTENANCE Important: Use only a good grade hydraulic jack oil. Avoid mixing different types of fluid and NEVER use brake fluid, turbine oil, transmission fluid, motor oil or glycerin. Improper fluid can cause premature failure of the jack and the potential for sudden and immediate loss of load.
- Page 4 LIFTING LIFTING REGULATING MODEL CAPACITY PRESSURE ALTITUDE(MM) ALTITUDE(MM) ALTITUDE(MM) WEIGHT(KG) (TON) RANGE(MPA) TMG-AJA30 250+25 0.8-1 TMG-AJA50 270+25 0.8-1 ► www.tmgindustrial.com TOLL FREE:1-877-761-2819...
- Page 5 ► www.tmgindustrial.com TOLL FREE:1-877-761-2819...
- Page 6 DESCRIPTION DESCRIPTION Hose connector Release valve seal Connecting nut Steel ball 6.35 Air filter “O” ring 18*24 Valve spring Connector Filler plug Valve body Screw Spring Plug screw Packing Plug washer Throttle Overload valve screw 1.10 “O” ring 3*1.6 Safety valve spring 1.11 “O”...
- Page 7 AIR MOTOR PARTS NAME TUVE CONNECTOR “O”RING 10*1.8 REMOVABLE BASE SPLIT WASHER HEX-SOCKET SCREW COVER WASHER AIR PUMP BODY SPRING WASHER SEAL “O” RING 63.5*3.55 SQUARE RING PISTON NUT M5 BLOCK PLUNGER SPRING PACKING GUIDE NL RETAINER “Y” SEAL COVER ADJUSTING NUT PLUNGER COVER ►...
