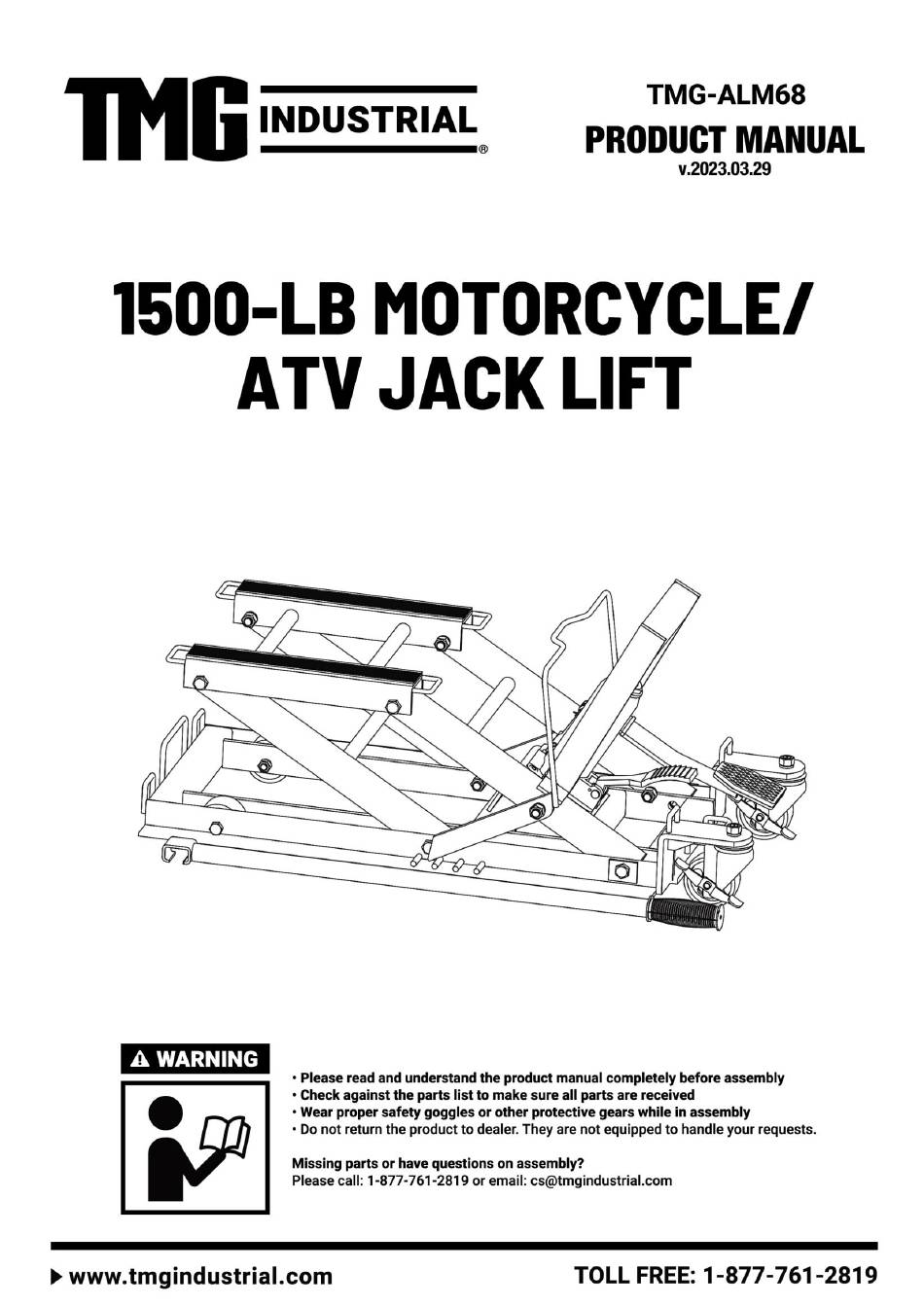

- Page 1 WARNINGS-SAFE USAGE INSTRUCTIONS ► www.tmgindustrial.com TOLL FREE:1-877-761-2819...
- Page 2 ⚠ WARNING This Hydraulic Jack is designed for use by professional auto mechanics. It is designed for lifting and lowering a vehicle load. The bottle Jack should not be used as a stand to hold load for any prolonged period. Use the safety arm to support weight.
- Page 3 ASSEMBLY 1. Insert the hydraulic ram head into the lifting frame then secure ram base to the lift base with M8*20 screws. 2. Secure safety bar with M8 nuts. HYDRAULIC RAM LIFTING BASE LIFTING BASE LIFTING BASE M8 X 20 SCREWS MΦ8 NUTS RATCHET STRAPS HANDLE...
- Page 4 PARTS BREAKDOWN AND LIST PARTS NO. PARTS DESCRIPTION PARTS NO. PARTS DESCRIPTION Bolt M12x80 outer thimble Saddle BOLT M12x110 lock washer 12 block nut M12 handle front lifting arm caster assembly base lifting frame nut M10 hydraulic parts lock washer 10 BOLT M8x25 front wheel lock washer 8...
- Page 5 USE AND OPERATION 1. To raise jack, centre it directly below vehicle to be lifted. Lock release valve by turning fully clockwise. Pump the foot pedal repeatedly until the saddle fully takes up the weight and the tyres just leave the floor. Adjust position if required ensuring vehicle is centred, balanced and in no danger of slipping or tipping once fully raised.
- Page 6 MAINTENANCE Lubricate the moving parts on the jack regularly with SAE 30W oil. Moving parts include saddle, linkage on foot pedal, front & rear lifting arm joints. Always store jack in the fully lowered position. MAINTENANCE SYMPTOM CAUSE CORRECTIVE ACTION Air in the hydraulic system Purge the air as per page 4 Release valve not tightened...
