Summary of Contents for TMG 6600-LB

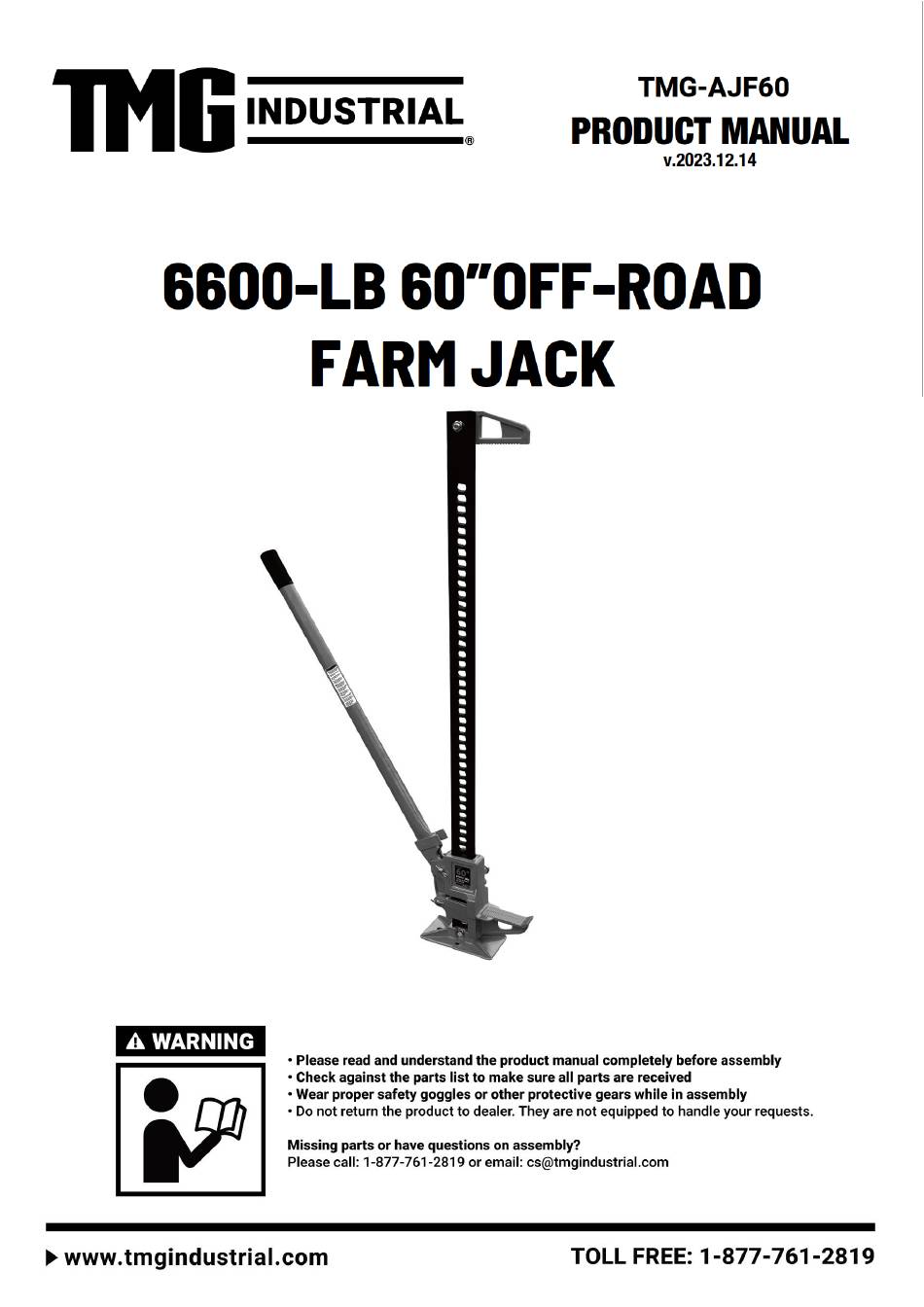

- Page 1 ► www.tmgindustrial.com TOLL FREE:1-877-761-2819...
- Page 2 SPECIFICATIONS SPECIFICATIONS 60” Capacity: 3Ton Minimum Lift Height: 125mm Maximum Lift Height: 1330mm Saddle Size: 114mm x 38mm Base size: 180 mm x 100 mm Handle Length 768mm Dimensions: 1520mmx267mmx101.6mm Net Weight 14.5kgs. SAFETY PRECAUTIONS Be sure base of jack is on firm and level ground Be sure jack will not slip after load is applied Be sure lifting arm is fully under load is applied Be sure the load is stabilized before lifting so that will not shift when lifting or lowering...
- Page 3 IMPORTANT Do not use extensions on the handle Always keep a firm hold on the handle. To raise a load To lower a load LOWERING A STATIONARY LOAD Always keep your head away from the jack handle path of movement. Make sure the handle is up against the standard(column) and the handle clip spring engages the standard.
- Page 4 PARTS LIST DESCRIPTION DESCRIPTION Lifting Arm Base Steel Rail Bolt M8*35 Connecting Rod Spring Handle Assembly Reverse Rod Pin R-Clip Reverse Rod Spring Screw Small Runner Washer Flat Washer φ 8 Reversing Lever-Silver Screw M12*40 Reversing Latch -Silver Stop Block Flat Washer φ...
