Summary of Contents for Milesight TrafficX TS5511-GH

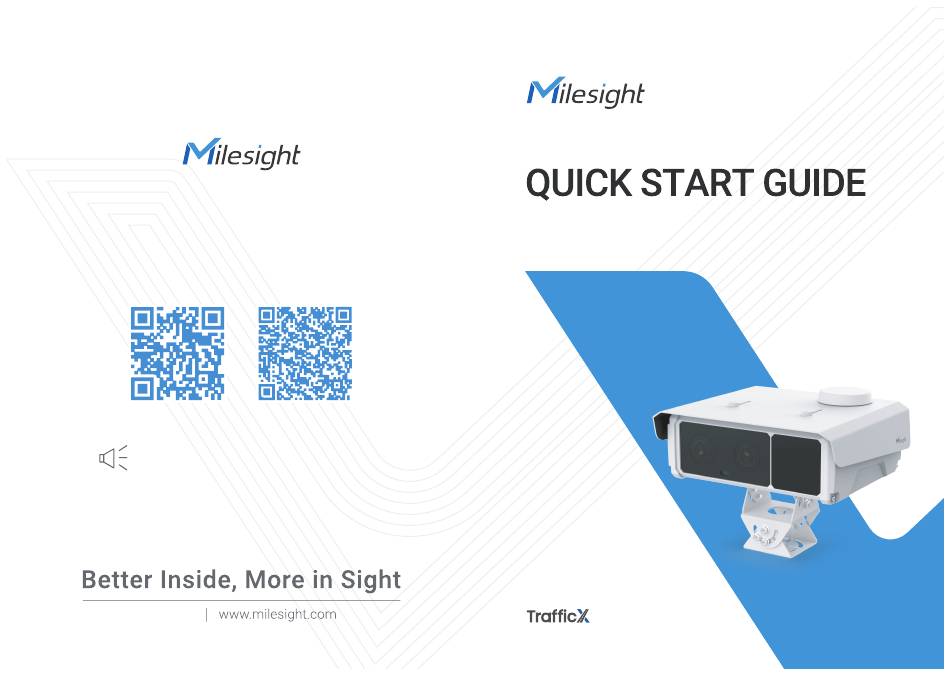

- Page 1 TrafficX Camera User Manual Datasheet All Software & files can be downloaded from https://www.milesight.com/support/download Milesight...
- Page 2 2. Hardware Overview ....................3. Dimensions ......................4. Installation ......................5. Assigning an IP Address by Using Smart Tools ..........6. Assigning an IP Address via Browser ..............7. Accessing from the Web Browser ............... 8. FCC Statement ..................... www.milesight.com...
- Page 3 Drill Diameter(φ26mm) Mounting Hole Drill Diameter(3-φ8) SD Card A92 Wall Perforation-assisted Screw Packet x 1 Screw Packet x 1 Mount x 1 Sticker x 1 (available with A01 purchase only) Optional Power Adapter Power Supply Adapter x 1 www.milesight.com www.milesight.com...
- Page 4 Step 1: Use a screwdriver to open the back cover at the bottom of the camera. Insert the SD card and SIM card. Close the back cover and tighten the screws securely. SD Card SIM Card www.milesight.com www.milesight.com...
- Page 5 To adjust the camera angle, loosen the screws indicated on the bracket as shown in the diagram. The bracket can then be rotated for adjustment. Once it is properly adjusted, tighten the screws to secure the bracket in place. www.milesight.com www.milesight.com...
- Page 6 To adjust the camera angle, loosen the screws indicated on the bracket as shown in the diagram. The bracket can then be rotated for adjustment. Once it is properly adjusted, tighten the screws to secure the bracket in place. www.milesight.com www.milesight.com...
- Page 7 Gray ALARM OUT respective positions, and tighten the threaded connectors. Pink RS485 A Green RS485 B Light Blue Strobe Out1 Brown Strobe Out2 Purple Strobe GND Red&White SYNC Black&White SYNC GND www.milesight.com www.milesight.com...
- Page 8 Red & White Power (+) Fixing Ring Black & Blue Screw Bolt Rubber Ring Screw Nut Power (-) Step 3: Insert the Ethernet port into the interface and tighten the waterproof protective cover. Power Cable Power Supply Adapter www.milesight.com www.milesight.com...
- Page 9 IP address, MAC address, Port number, Netmask, and Gateway, then all related Milesight network cameras in the same network that will be shown. 1. This device may not cause harmful interference. 2) Select a camera or multiple cameras according to the MAC addresses.
- Page 10 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. www.milesight.com...
