  • Page 1 X1 Sensing Camera SC541 User Guide...
  • Page 2 Safety Precautions Milesight will not shoulder responsibility for any loss or damage resulting from not following the instructions of this operating guide. The device must not be disassembled or remodeled in any way.  To avoid risk of fire and electric shock, do keep the product away from rain and moisture ...
  • Page 3 Revision History Date Doc Version Description March 15, 2023 V 1.0 Initial version...

  • Page 4: Table Of Contents

    Contents 1. Product Introduction ......................... 5 1.1 Overview ...........................5 1.2 Key Features ..........................5 2. Hardware Introduction ........................5 2.1 Packing List ..........................5 2.2 Hardware Overview ......................... 6 2.3 Button and LED Patterns ......................6 2.4 Dimensions (mm) ........................6 3. Power Supply ............................. 7 4.

  • Page 5: Product Introduction

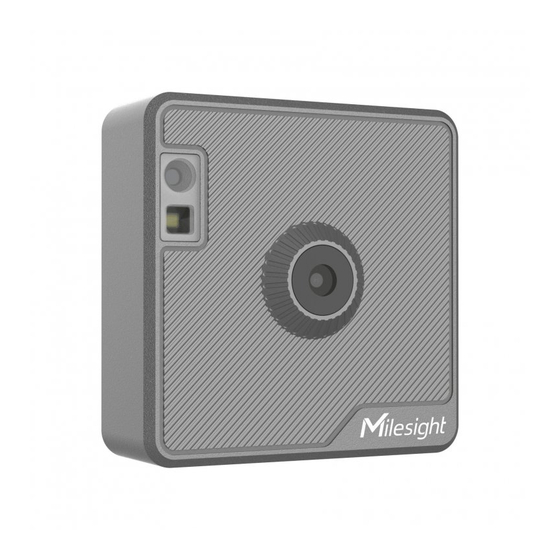

    1. Product Introduction 1.1 Overview X1 Sensing Camera SC541 is a creative AIoT product with applicable and intelligent applications. By capturing pictures, SC541 can replace human inspection in multiple scenarios and economize manpower. High-quality picture-capturing function and embedded supplement light make it more competitive and useful under different environmental conditions.

  • Page 6: Hardware Overview

    2.2 Hardware Overview 2.3 Button and LED Patterns Function Action LED Indication Device Weak-up Press the button once. Off → Static On After device wakes up, capture the picture by pressing Capture button once triggering alarm Blinks twice Picture input/software. When the device is not being connected for 1 minute Enter Sleep Mode or there’s no operation on the device for 5 minutes...

  • Page 7: Power Supply

    3. Power Supply 1. Unscrew the battery case and remove the battery cover, insert the two new AA/LR6 alkaline batteries into the battery case of device with correct direction. After inserting, the device will be powered on automatically. 2. Put the battery cover back and fix it with the screw. Note: SC541 can also be powered via USB type-C port(5V/1A).

  • Page 8: Access The Camera

    5. Access the Camera SC541 provides user-friendly web GUI for configuration and users can access it via Wi-Fi connection. The recommended browsers are Chrome, Microsoft Edge, and Safari. The default IP of camera is 192.168.1.1, and default SSID is SC541_XXXXXX (can be found on the label). Step 1: Install the batteries to power on the device, press the button on the device to wake it up.
  • Page 9 Image Adjustment Parameters Description Set supplement light mode. Auto: when environment light value is lower than light threshold, turn on the light Supplement Light Customize: set the time range to turn on the light Always on: turn on the light continuously Always off: turn off the light continuously Brightness Adjust the brightness of the live image stream.
  • Page 10 Enable to press the button to capture the picture when the device has Enable Capture Button been woke up. Step 3: Set the address and keep other settings as default to connect device to Milesight AIoT Sensing platform via MQTT. When the device captures a picture, it will send the picture immediately.
  • Page 11 MQTT Setting Parameters Description Enable Enable or disable to send pictures to Milesight AIoT Sensing platform. Host The address of Milesight AIoT Sensing platform. Port The communication port of Milesight AIoT Sensing platform. Topic Topic name of the data type used for publishing.
  • Page 12 Device Name Customize a device name. MAC Address MAC address of Wi-Fi interface. A unique serial number of device. Battery Battery level of the device. Hardware Hardware version of device. It’s fixed. Version Firmware Firmware version of device. It can be upgraded. Version Click the Browse button and select the upgrading file locally, then click the Upgrade button to upgrade.
