OUTDOOR GAS GRILL VGBQ-T SERIES CART ASSEMBLY
Retain for Future Reference
IMPORTANT: PLEASE READ AND FOLLOW
1. Before beginning, please read these instructions completely and carefully.
2. Do not remove permanently affixed labels, warnings, or plates from product.
BEFORE INSTALLING GRILL TO CART: Remove drip tray, grill grates, flavor grids, and warming racks from the grill.

To remove side shelves:

The side shelves on the cart can be removed if needed. This must be done before installing the grill on the cart.
With the shelf in the up position, remove the screws in the shelf support bracket. This will allow you to remove both
the brackets and the shelf.

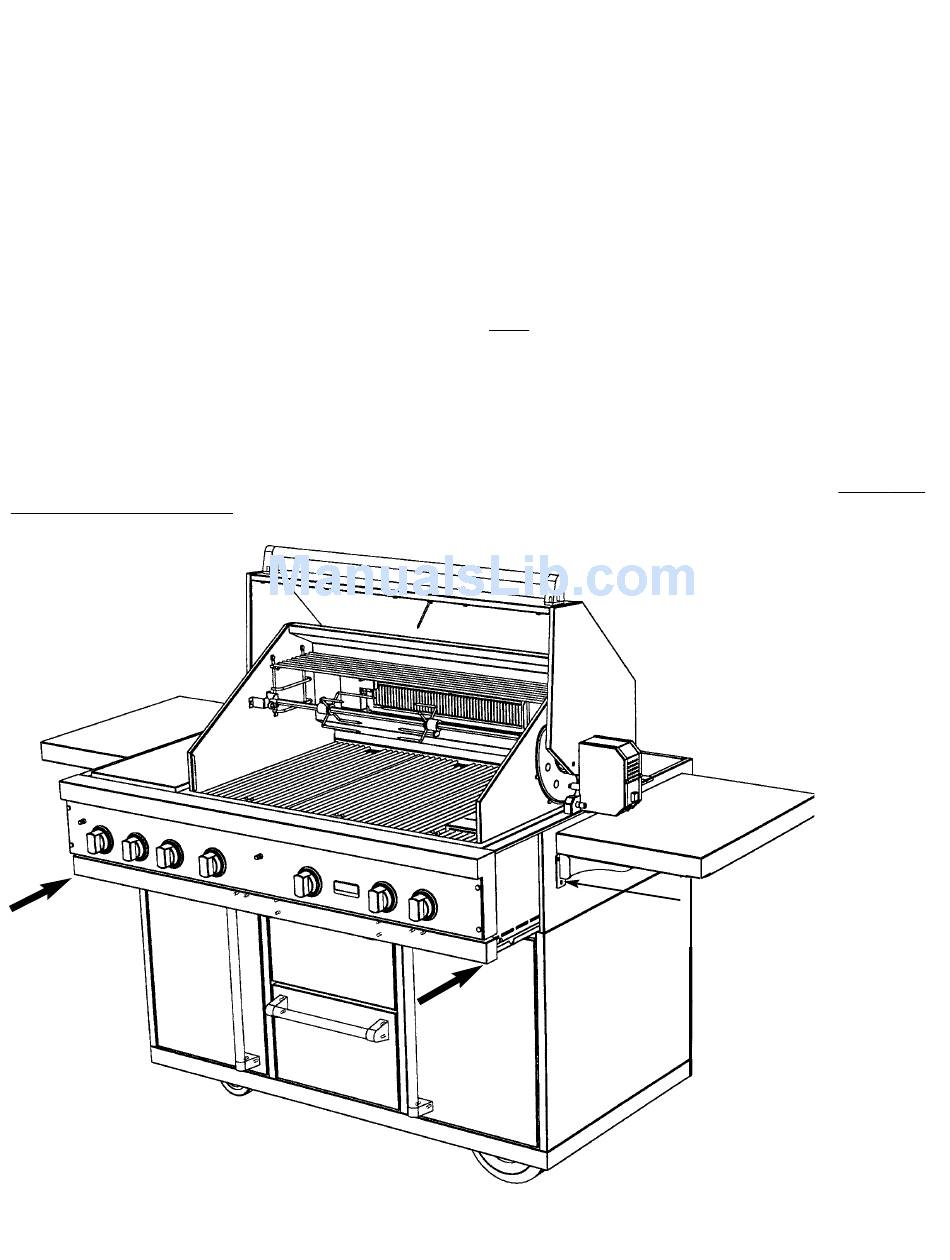

To mount grill to cart:

Always wear gloves when handling the gas grill. Although the grill is deburred prior to shipment, some edges may
still be sharp enough to cause injury during handling. With a minimum of two (2) people, place the grill in the cart with
about 3 to 4 inches hanging out the front making sure that the male fitting on the bottom of the grill is inside the cart.
Push the grill back until the front sides of the cart are flush with the back of the landing ledge on the grill. Be careful:
the grill unit is very heavy!
support bracket
screws
