Aiwa TS-W35 Service Manual

ana

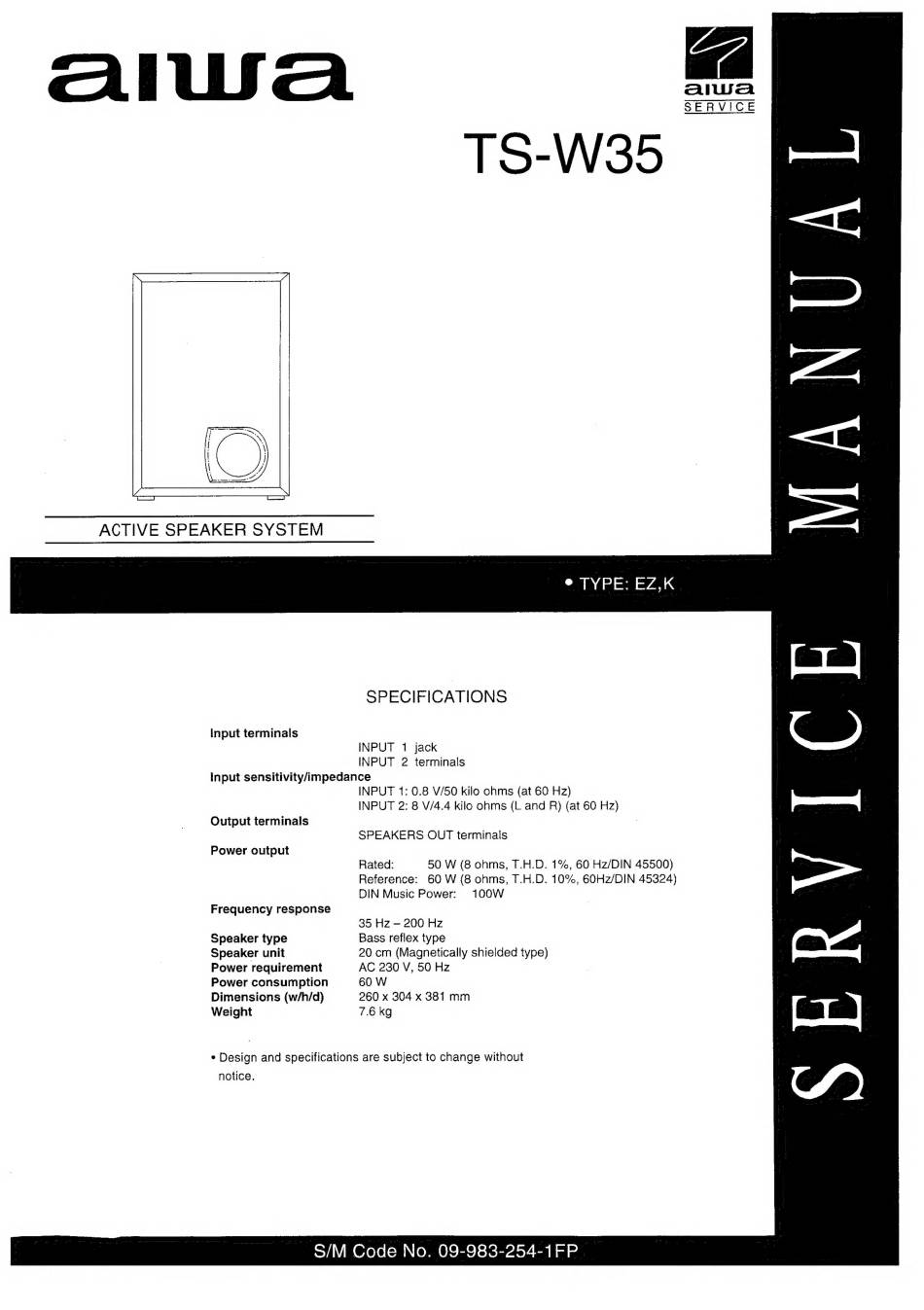

SERVICE
TS-W35
ACTIVE SPEAKER SYSTEM
e TYPE: EZ,K
SPECIFICATIONS
Input terminals
INPUT 1 jack
INPUT 2 terminals
Input sensitivity/impedance
INPUT 1: 0.8 V/50 kilo ohms (at 60 Hz)
INPUT 2: 8 V/4.4 kilo ohms (L and R) (at 60 Hz)
Output terminals
SPEAKERS OUT terminals
Power output
Rated: 50 W (8 ohms, T.H.D. 1%, 60 Hz/DIN 45500)
Reference: 60 W (8 ohms, T.H.D. 10%, 60Hz/DIN 45324)
DIN Music Power: 100W
Frequency response
35 Hz — 200 Hz
Speaker type Bass reflex type
Speaker unit 20 cm (Magnetically shielded type)
Power requirement AC 230 V, 50 Hz
Power consumption 60 W
Dimensions (w/h/d) 260 x 304 x 381 mm
Weight 7.6 kg
* Design and specifications are subject to change without
notice.
S/M Code No. 09-983-254-1FP
=
—
=>
