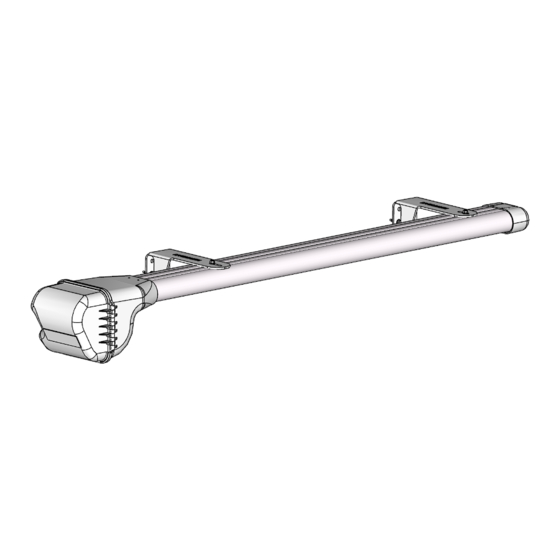

- Page 1 BED MOUNT SHORTCUT F LY R OD H OL D ER. LO CK ED. LOAD ED. REA DY TO F ISH. INSTALLATION GUIDE W W W. R I V E R S M I T H . C O M @ R I V E R S M I T H U S A Patent Pending...
-
Page 2: Table Of Contents
CONTENTS INCLUDED PARTS TOOLS NEEDED & MOUNT ASSEMBLIES STEP 1 - PREPARE VEHICLE STEP 2 - INSTALL BED MOUNTS STEP 3 - INSTALL SHORTCUT RIVER QUIVER SAFET Y INFORMATION DRIVING MAINTENANCE... -
Page 3: Included Parts
• Rod ChairsReel • Box Pads See full lineup of Accessories at www.riversmith.com The ShortCut RQ is built and tested to the highest possible standards to securely transport and protect your gear, however it is not meant as a long term storage solution. - Page 4 TOOLS NEEDED FOR PANEL AT TACHMENT Measuring 10mm Drill w/ Pencil/Sharpie Tape Nut Driver Nut Driver 3/8 Hex Bit TOOLS NEEDED FOR CARGO RAIL AT TACHMENT Measuring 10mm Pencil/Sharpie Tape Nut Driver Hex Wrench BED MOUNT ASSEMBLIES PANEL ATTACHMENT CARGO RAIL ATTACHMENT...
-
Page 5: Step 1 Prepare Vehicle
STEP 1 PREPARE VEHICLE NOTE: Standard Shortcuts are 5’-8” in total length. If you have a 5’ bed (shortbed), the 5’ ShortCut is required for bed attachment. Installation Prepare Vehicle - DO NOT INSTALL BED MOUNTS THROUGH DROP-IN BED LINERS. Measure the desired height of the River Quiver and mark it on the bed of the truck. - Page 6 STEP 2 Installing the Direct Panel Attachment Bed Mounts For direct panel attachment, locate the center of the bed mount with the mark made in Step 1 and install a self tapping screw in the top center hole using a drill and 3/8 hex bit.
- Page 7 STEP 2A Installing the Cargo Rail Attachment Bed Mounts For cargo rail attachments, start by assembling the mount bolts in the top left and right holes. Loosely hread the slot nuts onto each mount bolt on the backside of the bed mount. Slide the mount onto the cargo rail t-track ensuring both slot nuts properly engage with the track.
-
Page 8: Step 3 - Install Shortcut River Quiver
STEP 3 Install ShortCut River Quiver Align the pre-installed t-studs with the slots on the bed mount. Then install the t-stud nut onto each t-stud loosely securing the ShortCut in position. • Check to make sure the Reel Box lid can open when tail gate is down, and the tail gate does not hit the Reel Box Lid when closed. -
Page 9: Safet Y Information
SAFET Y INFORMATION • Improperly secured loads and incorrectly installed bed mounts can come loose causing damage to property, serious injury, or death. • Always place bed mounts as far apart as possible before mounting ShortCut RQ. • Check all rack and mount hardware: •... -
Page 10: Driving
DRIVING • Do not exceed posted speed limits or speeds appropriate for the terrain and conditions. • Off road driving is not recommended and could result in damage to vehicles, accessories, or gear. • Adjust speed for curves. - Page 11 • To replace lost or damaged keys, record key/lock number and register product online at www.riversmith.com • In the case you want to mount from the underside t-track, the rivets holding the nose cone are removeable/reusable. Simply insert a flathead screwdriver under the nose cone within the T-Track and pry firmly upward/downward to release the press in rivet.
- Page 12 CONSEQUENTIAL DAMAGES TO NON-RIVER QUIVER PRODUCTS USED IN CONJUNCTION WITH RIVER QUIVER PRODUCTS. The warranty is only available in the United States. No Riversmith reseller, agent, or employee is authorized to make any modification, extension, or addition to this warranty.
