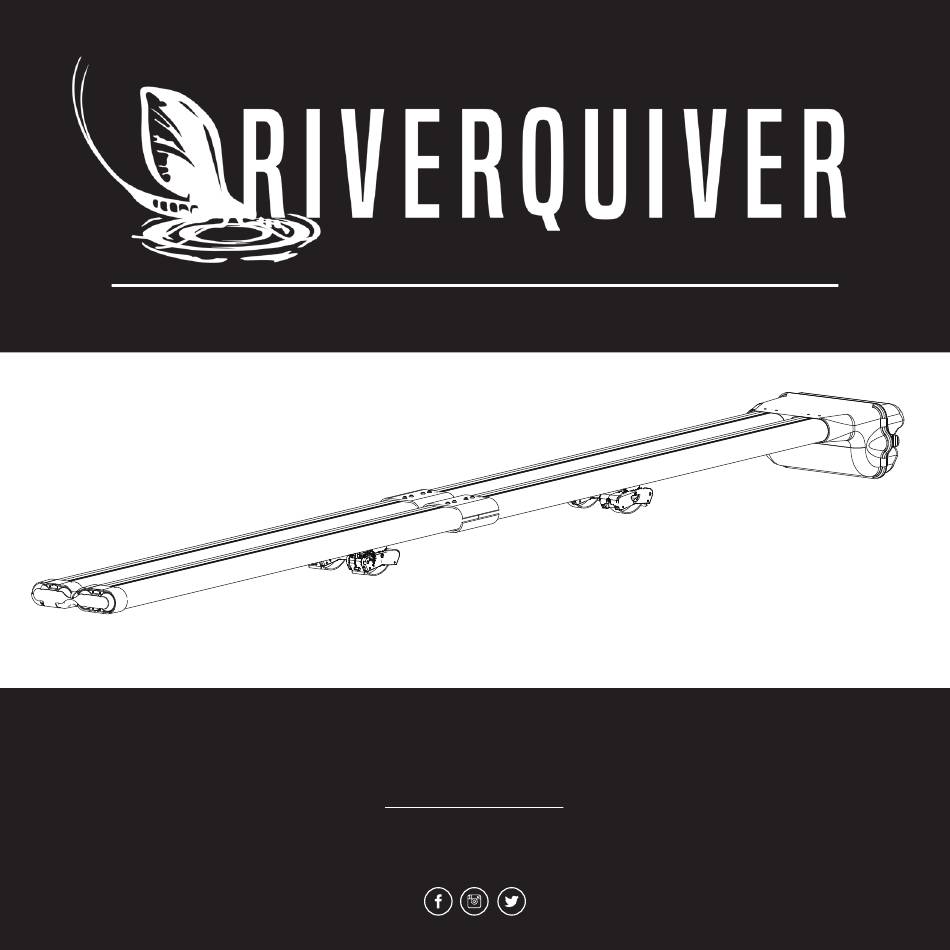

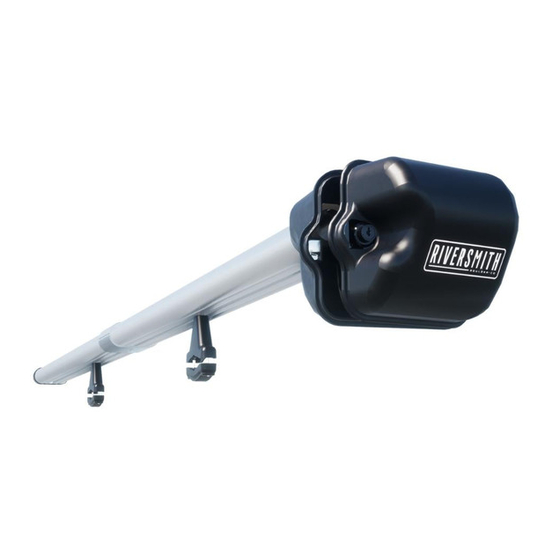

- Page 1 R OOFTOP F LY R O D HO L D E R. LO C KE D. LOA DE D. REA DY TO F IS H. INSTALLATION GUIDE WITH QUICK RELEASE MOUNTS W W W. R I V E R S M I T H . C O M @ R I V E R S M I T H U S A Patent Pending...
-
Page 2: Table Of Contents
CONTENTS INCLUDED PARTS TOOLS NEEDED MOUNT ASSEMBLY FLIPPING OVER RIVER QUIVER STEP 1 - PREPARE VEHICLE STEP 2 - INSTALL QUICK RELEASE MOUNTING BRACKETS STEP 3 - JOIN THE HALVES STEP 4 - PLACE ON YOUR VEHICLE STEP 5 - TIGHTEN QUICK RELEASE MOUNTING BRACKETS... -
Page 3: Included Parts
• Reel Box Pads See full lineup of Accessories at www.riversmith.com The River Quiver is built and tested to the highest possible standards to securely transport and protect your gear, however it is not meant as a long term storage solution. -
Page 4: Tools Needed
TOOLS NEEDED Marking Measuring Utensil Tape 10mm Nut Driver Hex Wrench... -
Page 5: Mount Assembly
QUICK RELEASE MOUNT ASSEMBLY NOTE: Each set comes LOCK T-STUD with one locking mount (DUMMY LOCK) and the other mount has a “dummy lock” STRAP TENSION LATCH TAB ADJUSTMENT BOLT TENSION STRAP... - Page 6 If flipping is required, you can remove and reapply the Riversmith dome tag located on the reel box so it reads right side up. In Step 3 ensure River Quiver stickers on front half of the extrusions read right side up.
-
Page 7: Step 1 - Prepare Vehicle
Prepare Vehicle - DO NOT ASSEMBLE RIVER QUIVER HALVES UNTIL STEP 3 Measure from center of front crossbar to estimated location of the River Quiver reel box. Generally it is best to spread vehicle crossbars as far as possible. •... - Page 8 STEP 2 Install Quick Release Mounts to River Quiver Insert Quick Release Mounts into appropriate side of River Quiver by placing T-Stud of Quick Release Mounts into T-Slot of River Quiver body. 4-BANGER 2-BANGER T-Stud T-Stud T-Slot T-Slot Quick Release Mount...
-
Page 9: Step 3 - Join The Halves
STEP 3 Join the Halves Place River Quiver on flat surface and join halves using upper and lower coupler and coupler bolts. Tighten all bolts evenly back and forth using 4mm hex wrench to equalize tension on collar. • DO NOT OVERTIGHTEN OR DAMAGE... - Page 10 STEP 4 Placing River Quiver on Your Vehicle Place River Quiver on vehicle, optimizing side to side and front to back location. Monitor interference of rear hatches or doors. • Mark River Quiver where Quick Release Mounts should be positioned to attach to vehicle...
- Page 11 STEP 5 Tighten Mounts Remove from vehicle and rotate the entire Quick Release Mount clockwise until secure and parallel with the extrusion. Ensure each mount aligns with marks made previously. Repeat for each mount. • DO NOT OVERTIGHTEN OR DAMAGE MAY OCCUR ROTATE CLOCKWISE TO TIGHTEN CORRECT SECURE ALIGNMENT...
- Page 12 STEP 6 Tighten Tension Strap Place River Quiver back on vehicle aligning each Quick Release Mount with the cross bars. Adjust the tension bolt for each tension strap with 4mm hex wrench until you are able to turn down each latch tab with secure tension around the cross bars.
-
Page 13: Safet Y Information
• Do not exceed maximum vehicle roof loads or roof rack capacities. • Do not attach unauthorized accessories to River Quiver • Record overall vehicle height with River Quiver in place. V E H I C L E H E I G H T... -
Page 14: Driving
DRIVING • Do not exceed posted speed limits or speeds appropriate for the terrain and conditions. • Off road driving is not recommended and could result in damage to vehicles, accessories, or gear. • Closely monitor overhead clearances. • Adjust speed for curves. •... - Page 15 River Quiver should be cleaned regularly with mild soap and water for maximum longevity. • Always travel with rod fully rigged in River Quiver. • Periodically inspect River Quiver and vehicle rack for damage. Replace lost, damaged, or worn parts with original replacement parts from Riversmith.
- Page 16 • You can provide proof of purchase from the Riversmith authorized dealer; • The product was used only as intended and in accordance with the River Quiver installation guide. If a defect occurs during intended use (according to the installation guide), we will replace, at our discretion, the defective product or part.
