Analogue actuator

Advertisement

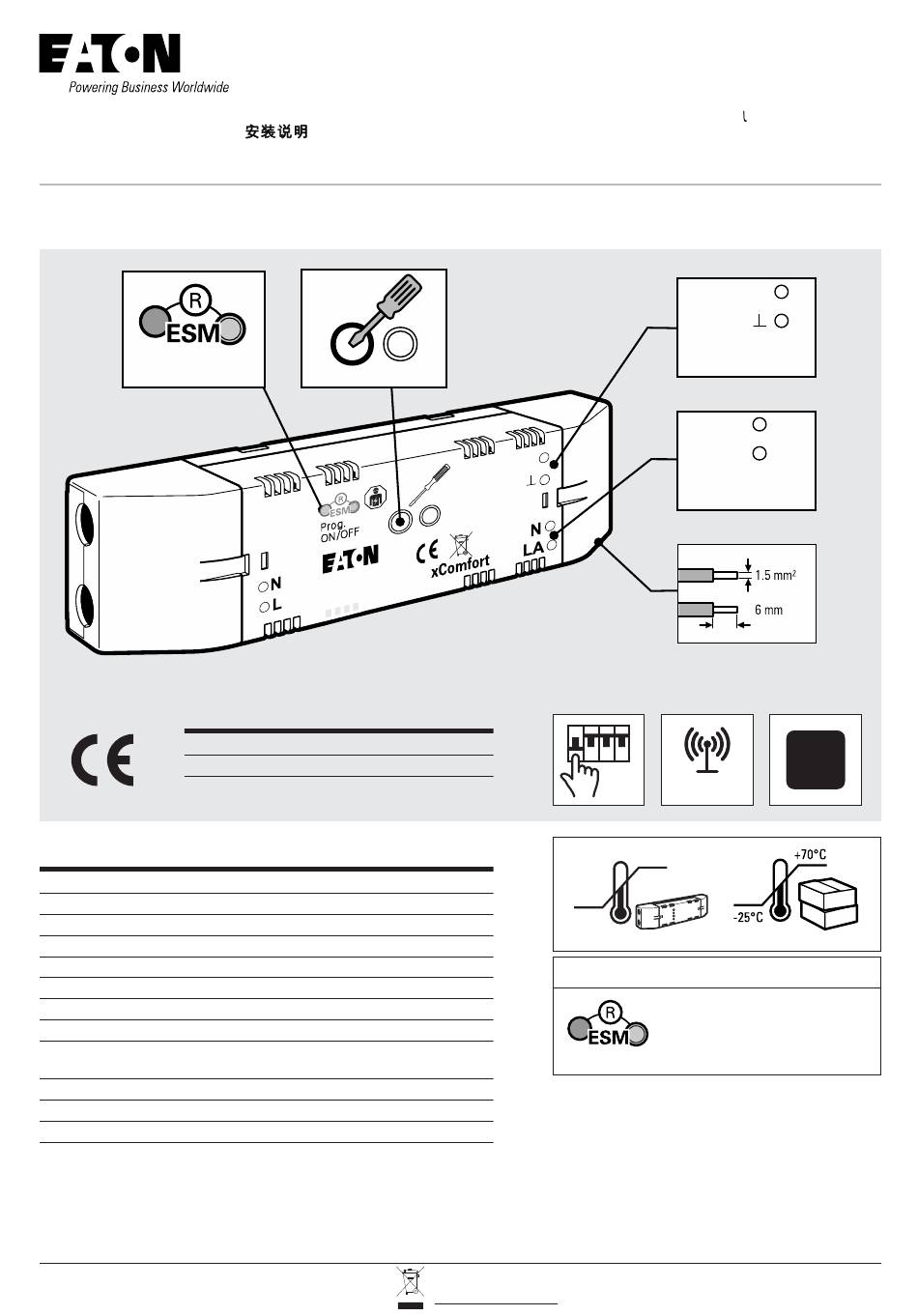

Analogue Actuator
CAAE-01/01, CAAE-01/02
ESM support
Actuator
CAAE-01/01
CAAE-01/02
Technical Data / Technische gegevens / Tekniske data /
Technische Daten / Technická data
Power supply
Power standby (Typical)
Analogue output
Switching output
Switching technology
Switching lifetime (Typical)
Inrush current (Typical)
Protection
RF
Max RF power:
ESM
Dimensions
1
Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria
© 2020 by Eaton Industries (Austria) GmbH, www.eaton.eu/documentation
Instruction Leaflet
Montageanweisung
Notice d'installation
Instrucciones de montaje
Istruzioni per il montaggio
Инструкция по монтажу
Montagehandleiding
Program
- 0 1 / 0 5
C A A E
Type
0-10 VDC
1-10 VDC
230 VAC, 50 Hz
1.6 W
0(1)-10 VDC, 20mA
230 VAC, 50 Hz, 8 A resistive (at 45°C)
Relay
30×10 6
80A@20ms, 30A@4s
Internal overtemperature protection
868,3 MHz xComfort compatible,
ESM support
25 mW (ERP)
Extended Status Messaging support
150 x 34 x 28 mm (H x W x D)
Montagevejledning
Montāžas instrukcija
Οδηγίες εγκατάστασης
Montavimo instrukcija
Instruções de montagem
Instrukcja montażu
Monteringsanvisning
Navodila za montažo
Asennusohje
Návod na montáž
Návod k montáži
Монтажни инструкции
Paigaldusjuhend
Instrucţiuni de montaj
Szerelési utasítás
Upute za montažu
C
1 - 1 0 V D
C / 8 A
2 3 0 V A
z
µ 5 0 H
D C
1 - 1 0 V
2 0 m A
Load
0-100%
0-100%
-5°C
MA-CAAE-01/01+02-0V10-0/1V10-0/1V10-2.qxd/06.2020b/IL019249ZU/136211212
www.eaton.com/recycling
Kullanma Talimatı
Инструкција за монтажу
Intruksjonsblad
Монтажна інструкція
‫ ت‬ª ø¥u¤‫ة ا‬L[ ¶
x-10VDC
Analoque output
20 mA
N
LA
Switching output
230VAC, 8A, R
OFF
868.3 MHz
+55°C*
MRF
RM
SHC-RF
ECI-RF
USB-RF
xComfort Bridge Version: 1.0
All Rights Reserved / Printed in Austria
IP20
Version 2.65
Version: 41a
Version: 2.00
Version: 2.00
Version: 2.00
