If you have internet service and a router you may transmit information using the Ethernet connection on
your dock. There are multiple setup options depending on the type of equipment you have. See the
following sections for the setup that matches what you may own.
Handheld Connection Options
RAs that want to transmit via the internet have several options to choose from. Depending on what
equipment you have for your high-speed internet, you will use the provided Ethernet cable and one of the
following options.
Keep in mind that there are a wide variety of modems and routers so your specific equipment may not
look like the images below however all connections should be similar.
RetailData does not support connecting via SECURED wireless networks at this time.

Cable/DSL Modem AND Router with multiple LAN ports

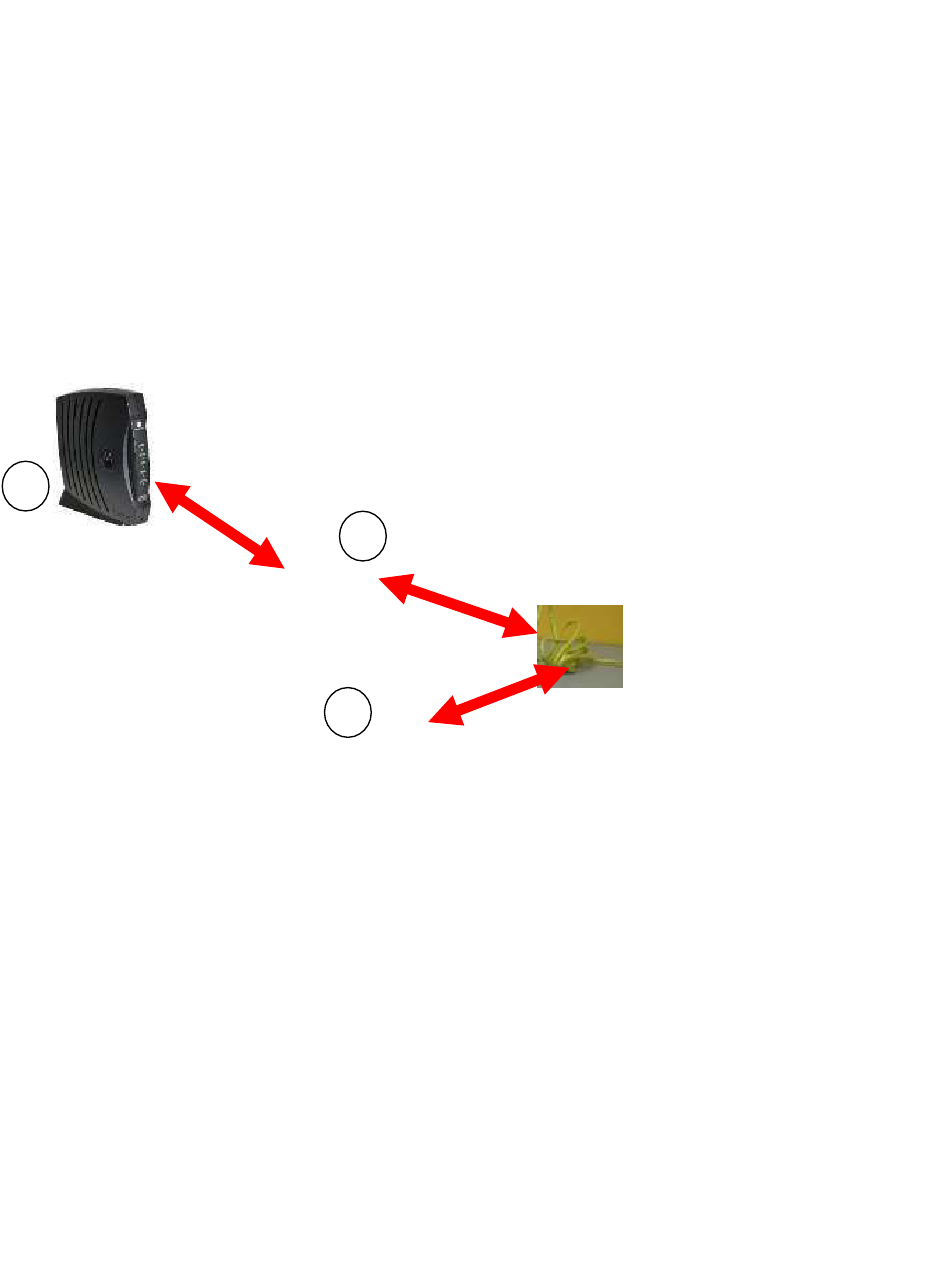

A
Modem
A. Your modem will be connected to the router (Wired or wireless).
x If you have this setup then this step is probably already done.
x If you are adding a router to your setup then please refer to the instructions that came
B. Connect one end of the Ethernet cable to one of the LAN ports on the back of the router.
C. Connect the other end to the back of your handheld charging dock
Router
B
C
with your router.
Cable
Ethernet
