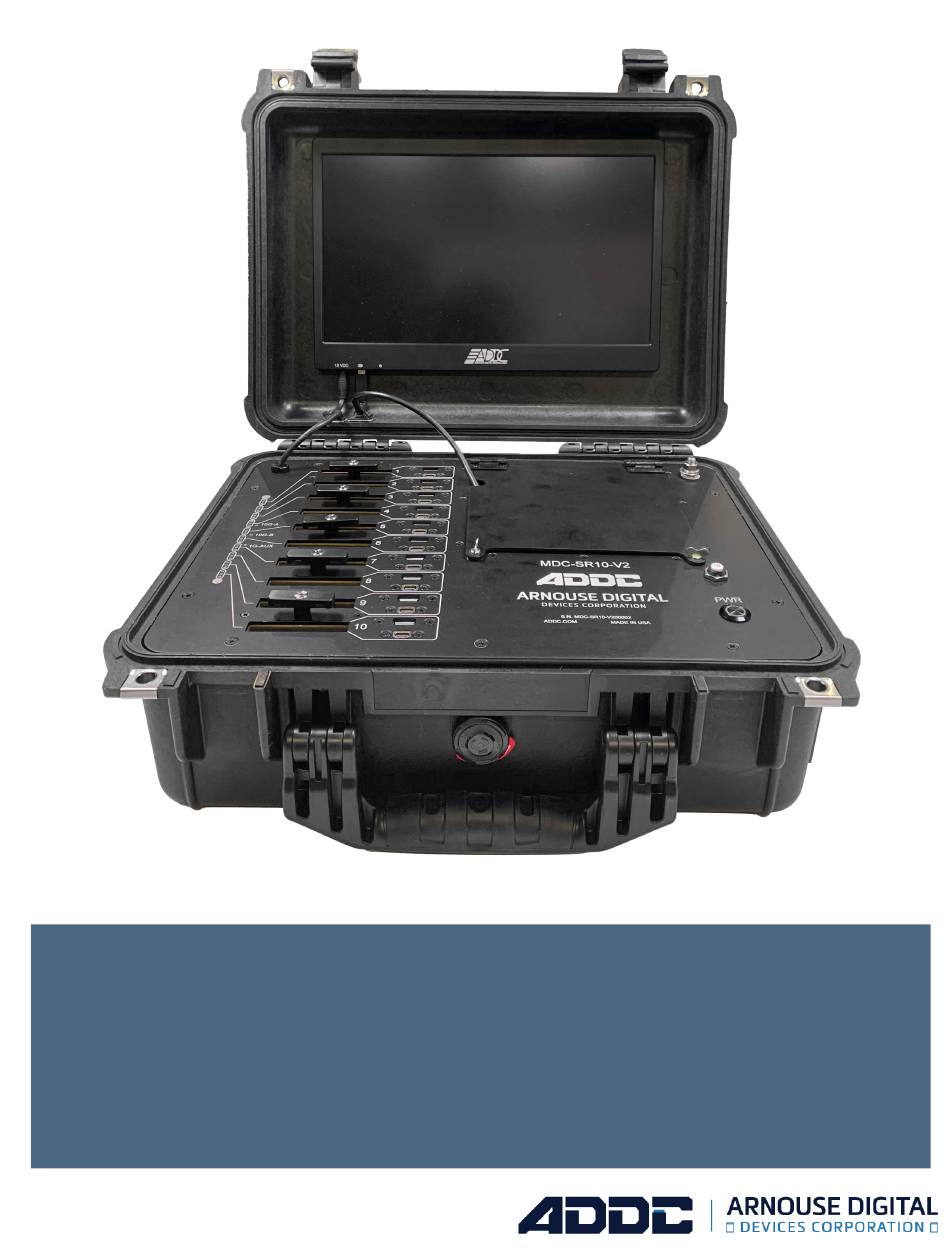

- Page 1 MDC-SR10-V2 USER GUIDE PLUG INTO THE FUTURE OF TECHNOLOGY...
- Page 2 Revision History Revision Notes Revision 1.0 was published in V1.0 November of 2023. WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
- Page 3 Table of Contents Section 1 Receiving Your MDC-SR10-V2 Section 1.1 What's in the Box? Section 2 MDC-SR10-V2 Preparation Section 2.1 Preparing For Your MDC-SR10-V2 Section 2.2 Installing Your BioDigitalPC ® Section 2.3 Connect Antennas and Power On Your MDC-SR10-V2 Section 3 MDC-SR10-V2 Overview Section 3.1 SR-10 Module...
- Page 4 This manual details installation of the mobile data center, the components inside of the mobile data center, and notable features of the MDC-SR10-V2 mobile server solution. Installations will be supported by ADDC. Unless otherwise specified, all instructions provided in this manual will assume that a user is a trained technician.
- Page 5 Section 1.0 - Receiving Your MDC-SR10-V2 Section 1.1 - What's in the Box? Equipment (Included) • MDC-SR10-V2 Case • BioDigitalPC Server Cards [Check ® Invoice for Quantity] • (1) DC Input Cable • (1) AC Power Cord Equipment (Not Included) •...
- Page 6 Your MDC-SR10-V2 is designed to operate at room temperature with its self-contained cooling. Power Considerations When properly configured and installed the MDC-SR10-V2 can draw up to 200 Watts depending on the number, load, and version of the BioDigitalPC s used.
- Page 7 ® removing them. Only trained technicians are authorized to work beneath the MDC-SR10-V2 System Cover and access any of the components inside the system. Section 2.2.1 - Opening the MDC-SR10-V2 Case:...
- Page 8 Section 2.3 - Connect Monitor and Power On Your MDC-SR10-V2 Mini-DP video cable needs to be connected to the monitor. Power On Button WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
- Page 9 Section 3 - MDC-SR10-V2 Overview 13.3" touchscreen Display power cable display SR-10 Mini-DP video cable Module USB cable to enable the touchcreen. Network connections. Card Slot Number. Power On Button screws to open storage door. The storage compartment is used to store the power cords.
- Page 10 1Gbps NICs ® attached to an integrated switch. Each switch has two SFP+ 10Gbps connectors and one 1Gbps RJ-45 connector broken out to the side panel of the MDC-SR10-V2 (See Section 3.2 for additional information). Each SR-10's integrated switch and...
- Page 11 Every slot has a dedicated USB port. Every slot also has a dedicated Mini-DP video port. WWW.ADDC.COM | 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
- Page 12 An individual slot's 1Gbps NIC LEDs. One LED for each 1Gbps NIC 10G-A: SR-10's 10Gbps SFP+ Port Status LED 10G-B: SR-10's 10Gbps SFP+ Port Status LED 1G-AUX: SR-10's auxiliary one Gigabit Port Status LED WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
- Page 13 Section 4.1 - Login The web interface for ROMWare asks for credentials to log in and begin management and/or monitoring of your MDC-SR10-V2 Users are supplied with administrative credentials that have been factory set. Only one admin can be logged in at once, through the IP 10.0.1.254.
- Page 14 Section 4.3 - BioDigitalPC Power Control & Monitoring ® Displaying the card management features of the MDC-SR10-V2 is done by clicking the Slot Number. Powers on the BioDigitalPC Server card. ® Immediately removes power from the BioDigitalPC Server card. ®...
- Page 15 Section 4.3 - BioDigitalPC Power Control & Monitoring ® BioDigitalPC Slot Number The unique MDC-SR10-V2 slot number ® SR-10 Module Position The position number of the SR-10 Module within the MDC-SR10-V2 BioDigitalPC Slot Position The Position of the Slot within the SR-10 ®...
- Page 16 Power Control & Monitoring ® Disable Slot Disables the slot for this SR-10 module. Is Auto-Power On With this option enabled, after boot up of the MDC-SR10-V2 Enabled the BioDigitalPC in this slot will be powered on (if present) ®...
- Page 17 Section 4.4 - MDC-SR10-V2 System Settings Click on the cog to access the System Settings The System Settings allows the user to change four things: ROMware password, the machines IP address, the machines Gateway and the ability to enable or disable the Keypad WWW.ADDC.COM |...
