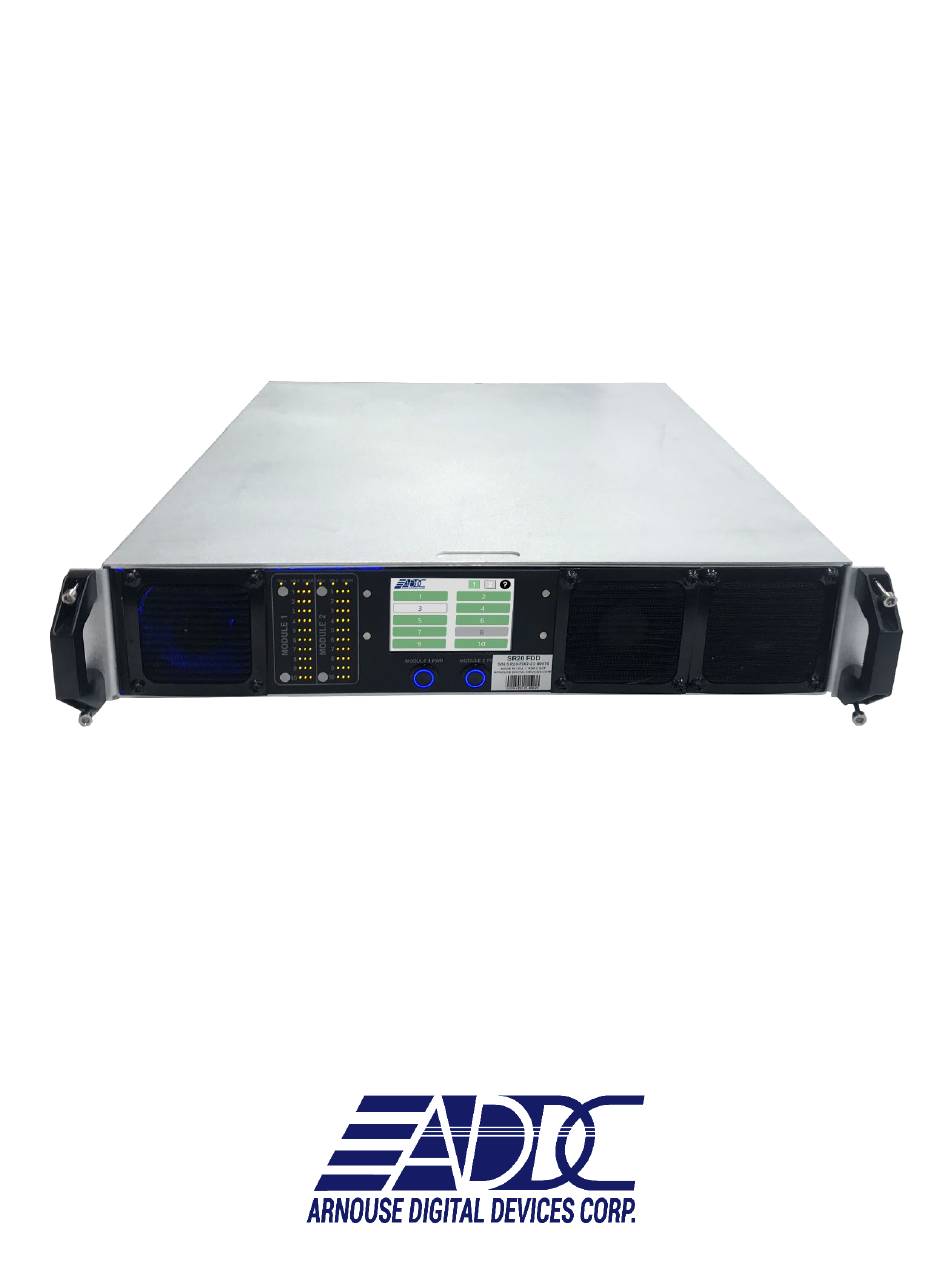

- Page 1 User Guide SR20-FDD Version 1.0 ● 14 October 2022 Arnouse Digital Devices Corp. 1979 Marcus Ave. Suite E140 Lake Success, NY 11042 (516)673-4444 www.addc.com...
- Page 2 Revision Notes V1.0 Revision 1.0 was published in October 2022...
- Page 3 Disclaimer The information provided in this document is provided "as is" without warranty of any kind. ADDC disclaims all warranties, either express or implied, including the warranties of merchantability and fitness for a particular purpose.
-
Page 4: Table Of Contents
System Operations ....................11 Installing, Starting and Stopping the System ............12 Installing the System .................... 12 Installing the SR20-FDD Into a Rack ..............12 Installing System Components ................12 Networking the System ..................18 Step by Step Operating Instructions ..............20 SR20-FDD Overview .................... - Page 5 Figure 19- SR20-FDD Switch Management Ports ............17 Figure 20- SR20-FDD Ethernet Networking Ports ............17 Figure 21- SR20-FDD Ethernet Networking Ports (Recommended Configuration) ..18 Figure 22- SR20-FDD Front Panel ................18 Figure 23- SR20-FDD Front Panel Controls and Indicators .......... 19 Figure 24- SR20-FDD Rear Panel Connections ............
- Page 6 Figure 41- Touchscreen Startup Screen ……………………………………………………………..32 Figure 42- Touchscreen Support Window ………………………………………………………...…32 Figure 43 – Touchscreen Main Screen Overview ………………………………………………..…33 Figure 44 – SR20-FDD Front Panel …………………………………………………………...……..33 Figure 45– ROMware SR-10 Touchscreen Slot Management Window ………………………….34 Figure 46 – ROMware Touchscreen Lock Screen ……………………………………………….…35 Figure 47 –...
-
Page 7: Introduction
The system’s power management controls via the front panel touch screen or the ROMWare GUI are PIN and password protected for security. System Organization Figure 1 is the block diagram for the SR20-FDD system. The system consists of the following main components: • SR10 Module •... -
Page 8: Figure 1- Sr20-Fdd System Block Diagram
Arnouse Digital Devices User GuideSR10-FDD User Guide-V1.0_12-21-2020.docx SR20-FDD Version 1.0 Figure 1- SR20-FDD System Block Diagram © Arnouse Digital Devices 2022. All rights reserved. Page 8 of 35... -
Page 9: System Description
Version 1.0 System Description The SR20-FDD combines the power of two ADDC SR10 modules with the Made in the USA, long distance, fiber KVM (Keyboard, Video, Mouse) terminal for extraordinary capability. The SR10 module is specifically designed to be integrated into a SR20-FDD features 20 separate and distinct computers with USB and video delivered through fiber KVM. -
Page 10: Figure 2- Sr20-Fdd Chassis
Arnouse Digital Devices User GuideSR10-FDD User Guide-V1.0_12-21-2020.docx SR20-FDD Version 1.0 Figure 2- SR20-FDD Chassis Figure 3- Cable Management Arm Figure 4- 10Gbps SFP+ Cables Figure 5- AC Power Cord Figure 6- AC/DC Power Supply Figure 7- BioDigitalPC ® © Arnouse Digital Devices 2022. All rights reserved. -
Page 11: Environment
• System Operations The SR20-FDD can operate unattended once is properly installed and configured for remote KVM operation. The remote users can have as much control of each PC Card as allowed by the system administrator. Each user may be able to login and logout of the PC Card and operate applications also as allowed by the System Administrator. -
Page 12: Installing, Starting And Stopping The System
UPS unit has enough capacity to run the system. Installing the SR20-FDD into a rack The SR20-FDD does not ship with rack rails. The rails must be provided by the end user; follow the rail and rack manufacturers installation instructions. -
Page 13: Figure 8- Sr20-Fdd Rear Panel
Removing the SR20-FDD Top Cover To add or remove BioDigitalPC ® s, the SR20-FDD chassis must be pulled out of the rack, and the SR20-FDD's Top Cover needs to be removed temporarily. Warning: The SR20-FDD can be running while installing new server cards. However, caution must be taken to prevent damage to the equipment as exposed circuit components may short if any metal objects are inadvertently dropped inside the chassis. -
Page 14: Figure 11- Pc Card Track
Arnouse Digital Devices User GuideSR10-FDD User Guide-V1.0_12-21-2020.docx SR20-FDD Version 1.0 Step 3- Insert Card with “Arnouse Digital Devices Corp.” facing upwards and the • connector of the card is facing towards the PC Card ejection lever. When inserting the card, place it between the two horizontal metal bars, ensuring the card is going to be aligned properly. -
Page 15: Figure 13- Sr10 Pc Card Unlocking
Arnouse Digital Devices User Guide SR20-FDD Version 1.0 3.3.3 Removing a BioDigitalPC ® Step 1- Find the locking tab located to the right of the card slot. Unlock the locking tab. • Figure 13- SR10 PC Card Unlocking • Step 2- Pull the PC Card ejection lever forward towards you, you should feel the card pop out of the connector. -
Page 16: Figure 15- Pc Card Ejection Lever Position
Arnouse Digital Devices User GuideSR10-FDD User Guide-V1.0_12-21-2020.docx SR20-FDD Version 1.0 Step 3- Reset the ejection lever to the original position to make the PC Card removal • easier. Figure 15- PC Card ejection lever position 3.3.4 Replacing a KVM Over Fiber PCB Stack Module Disconnect all cables (USB, miniDP, 5V power, and Fiber Optic) •... - Page 17 User Guide SR20-FDD Version 1.0 3.3.5 Replacing the SR20-FDD Top Cover Once complete, a technician should replace the SR20-FDD top cover following the 2-step removal process in reverse order. 3.3.6 Installing the AC/DC Power Supply Module 1 Handle Module 1 green “OK” LED...
-
Page 18: Networking The System
• 2 each Cisco compatible RS232 Serial Communications Cable • 2 each External Computer (e.g., a laptop) • Figure 19- SR20-FDD Switch Management Ports 3.4.2 1Gbps Networking Schema 1 each 10/100 Ethernet Cable • 2 each Cisco compatible RS232 Serial Communications Cable •... -
Page 19: Figure 21- Sr20-Fdd Ethernet Networking Ports (Recommended Configuration)
• Figure 21- SR20-FDD Ethernet Networking Ports (Recommended Configuration) 3.4.4 SR20-FDD Power ON and OFF Connect SR20-FDD to a 20 Amp AC power receptacle. • Press the two ON/OFF Power Buttons on the front panel. • The blue ring LEDs on the power buttons should illuminate. -
Page 20: Step By Step Operating Instructions
SR20-FDD Overview LCD Touchscreen Fan Filter Fan Filters Power Buttons NICs LEDs Activity Indicators Figure 23- SR20-FDD Front Panel Controls and Indicators Module 1 AC/DC Module 1 Power Supply Power KVM Fiber Optic Power Management Failure LED indicator Module 1 Cable Couplers Ethernet Switch Management. -
Page 21: Sr10 Modules
Version 1.0 SR10 Modules As shown in the Section 3, the SR20-FDD consists of two SR-10 Modules and 20 KVM over fiber PCBs. The SR-10 Module contains 10 BioDigitalPC slots, each having three 1Gbps NICs attached to an ® integrated switch. The integrated switch has two SFP+ 10Gbps connectors and one 1Gbps RJ-45 connector broken out to the rear panel of the SR20-FDD (See Section 3.4... -
Page 22: Figure 26- Sr20-Fdd Front Panel
Individual PC Card NIC LEDs. One LED for each 1 GBPS NIC Module Power Buttons Figure 26- SR20-FDD Front Panel 4.2.2 Rear Panel Refer to Figure 20 • The Power OK green LEDs on the power supply will illuminate as soon as the •... -
Page 23: Romware Lite Software
User Guide SR20-FDD Version 1.0 ROMware Lite Software The ROMware Lite software in embedded in the SR20-FDD and all that is required for its operation is a web browser (Chrome is recommended). Login Figure 27 – ROMware Login Page The web interface for ROMware Lite asks for credentials to log in and begin management and/or monitoring of your SR20-FDD. -
Page 24: Pc Card Power Control And Monitoring
Arnouse Digital Devices User GuideSR10-FDD User Guide-V1.0_12-21-2020.docx SR20-FDD Version 1.0 PC Card Power Control and Monitoring To verify the SR-10's Power Supply is operating optimally, you can press the button labeled "Power" for more information Figure 29 – ROMware SR-10 Modules GUI This screen shows various power related information and allows users to turn “On”... -
Page 25: Front Panel Touchscreen Overview
Arnouse Digital Devices User Guide SR20-FDD Version 1.0 BioDigitalPC Power Control and Monitoring Displaying the card management features of the SR20-FDD is done by clicking the Slot Number. Figure 32 – ROMware SR-10 Slot Management Window Powers ON the BioDigitalPC ®... - Page 26 User GuideSR10-FDD User Guide-V1.0_12-21-2020.docx SR20-FDD Version 1.0 BioDigitalPC ® Slot Number The unique SR20-FDD slot number SR-10 Module Position The position number of the SR-10 Module within the SR20-FDD BioDigitalPC Slot Position The Position of the Slot within the SR-10 ®...
-
Page 27: Figure 33- Romware Sr-10 Slot Management And Slot Hardware Information Windows
Figure 33- ROMware SR-10 Slot Management and Slot Hardware Information Windows Disabled Slot Disables the slot for this SR-10 module. Is Auto-Power On enabled When enabled, after boot up of the SR20-FDD the BioDigitalPC in this slot will be powered on (if present) ®... -
Page 28: Sr20-Fdd System Settings
Arnouse Digital Devices User GuideSR10-FDD User Guide-V1.0_12-21-2020.docx SR20-FDD Version 1.0 SR20-FDD System Settings Click on the cog to access the System Settings Figure 34- ROMware Main GUI and System Settings Button Figure 35 – System Settings Window The System Settings allows the user to change four things: ROMware password, the... -
Page 29: Sr20-Fdd Fdd Stack
Arnouse Digital Devices User Guide SR20-FDD Version 1.0 SR20-FDD FDD Stack Figure 36- ROMware FDD Stack GUI Refresh “FDD Stack” button, reloads all the "ADD FDD +" is used to add FDDs FDDs on the stack to check their latest state. -
Page 30: Figure 38- Romware Select Fdd
Arnouse Digital Devices User GuideSR10-FDD User Guide-V1.0_12-21-2020.docx SR20-FDD Version 1.0 Figure 38 – ROMware Select FDD Figure 39- ROMware Connect to FDD Window The "Connect" button stablishes a connection between ROMware and the selected FDD. © Arnouse Digital Devices 2022. All rights reserved. -
Page 31: Figure 40- Romware Controlling Fdd Indicator
Arnouse Digital Devices User Guide SR20-FDD Version 1.0 After "Connecting" to the added FDD, your screen will now show the new FDD as the "Controlling FDD" Figure 40- ROMware Controlling FDD Indicator © Arnouse Digital Devices 2022. All rights reserved. -
Page 32: Front Panel Touchscreen Overview
• Figure 41- Touchscreen Startup Screen ADDC Support Screen – This screen is displayed right after the system boots up and will • be closed after ten seconds or it can also be closed by clicking on the red button. -
Page 33: Figure 43- Touchscreen Main Screen Overview
User Guide SR20-FDD Version 1.0 PC Card Slots Power Status Screen – This screen is displayed after the ADDC support • screen is closed. WHITE indicates there is no PC Card installed, GRAY indicates there is a PC Card installed but is turned OFF, GREEN indicates that there is a PC Card installed and turned ON. - Page 34 User GuideSR10-FDD User Guide-V1.0_12-21-2020.docx SR20-FDD Version 1.0 ADDC Support Screen – This screen is displayed right after the system boots up and will • be closed after ten seconds or it can also be closed by clicking on the red button.
- Page 35 Arnouse Digital Devices User Guide SR20-FDD Version 1.0 A lock screen can be activated from the web interface. By default, the lock screen is • disabled; however, it can be enabled from ROMWare Lite. When enabled, the lock screen will require you to enter the default pin number 123123 to access the PC Card Slots Power Status Screen.
