HANDBOOK FOR THE
MOBYL DATA CENTER
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MOBYL DATA CENTER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADDC MOBYL DATA CENTER

Summary of Contents for ADDC MOBYL DATA CENTER

  • Page 1 HANDBOOK FOR THE MOBYL DATA CENTER...
  • Page 2 For support contact us at: support@addc.net 1983 Marcus Ave. Suite 104 Lake Success, NY 11042 www.ADDC.net 516.673.4444...

  • Page 3: Table Of Contents

    HANDBOOK FOR THE MOBYL DATA CENTER TABLE OF CONTENTS 4 Introduction 5 Operation 6 Input/Output 7 Network 8 Power Up/Down/Fail Over 9 Hardware Maintainance Modular Battery 10 Removing Reader Cover 11 Expanded Storage (optional)

  • Page 4: Introduction

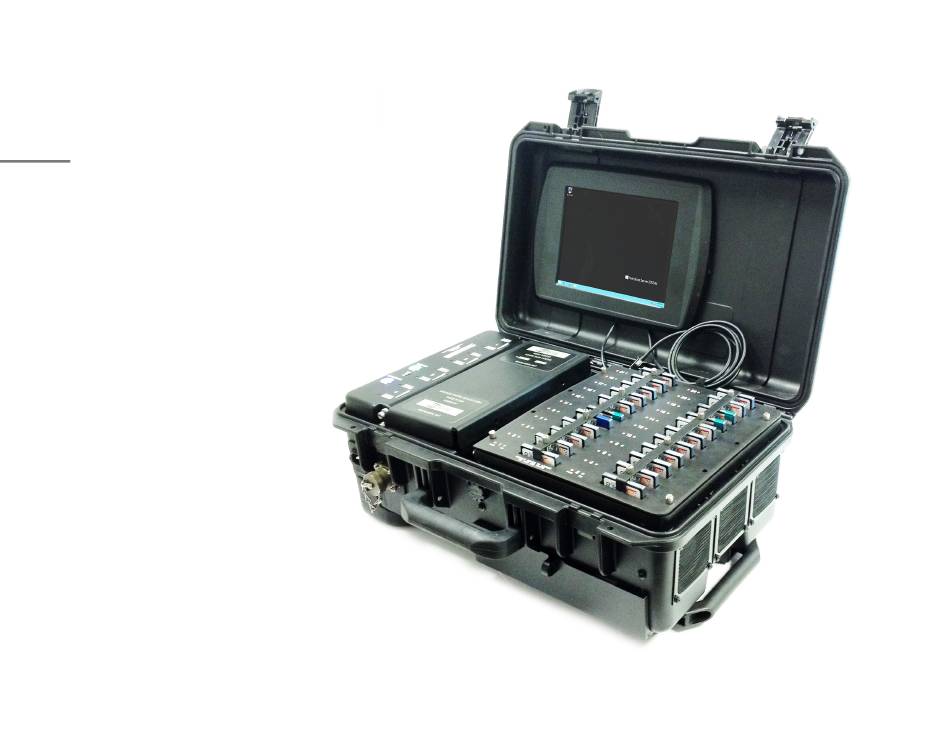

    Introduction The Mobyl Data Center(MDC22) comes equipped with 22 BioDigitalPC /MobylPC Server docking stations along ® with a backplane to form a cohesive scalable server cluster. The MDC22 can be scaled from one to twenty-two complete servers simply by plugging in more BioDigitalPC /MobylPC Servers.

  • Page 5: Operation

    Operation To begin using your MDC22 insert the server cards. First remove the card holder. 1. Start by removing the screws which fasten the card holder in place. 2. Remove card holder by lifting straight up. Fg.1 3. Make sure the top side of the card is facing the front of the MDC22.

  • Page 6: Input/Output

    Input/Output Remove the the reader cover to access the USB and video ports Removing Reader Cover To remove the reader cover : 1. Remove all eight screws hold- ing the cover down. 2. Lift straight up. Unscrew to remove reader cover USB 2.0 Ports for USB Devices (ie: Keyboard...

  • Page 7: Network

    Input/Output Network To connect to your network 1. Find the ports on the back of the MDC 2. Flip down port cover 3. Push Ethernet cable in gently until you hear a click. Fg.10 Features a 1 Gb Ethernet connector Fg.11...

  • Page 8: Power Up/Down/Fail Over

    Power Up/Down /Fail Over Battery DC Power Press the main power button, AC Power labeled MAIN PWR, to turn the MDC22 on. If plugged into AC or DC power, the batteries will begin to charge (if installed). In the event of power loss from either the AC or DC power inputs, the BioDigitalPC /Mob-...
  • Page 9 Hardware Modular Battery Maintainance To remove Battery 1. Loosen both screws located on the side of the battery cover. 2. Lift cover until the cover is vertical. 3. Grasp and evenly pull battery straight up and out of MDC22 Cover Warning: If the battery cover is left open any attempt to close the MDC22 top will damage the display installed in the inside of the MDC22 top.

  • Page 10: Hardware Maintainance

    Hardware Maintainance Unscrew to remove reader cover Removing M4 Reader Row Cover 1. Remove each screw at each end of the M4 reader row cover. 2. Carefully pull the row up and out. Removing Reader Cover Removing M4 Reader 1. Remove all eight screws holding the cover down. 1.

  • Page 11: Expanded Storage

    Expanded Storage Fg.28 Fg.29 The MDC22 has an option with up to 12TB of expanded stor- age. This storage is optional and can be added or removed. ALL EXPANDED STORAGE IS CONNECTED Fg.31 THROUGH A BIODIGITALPC/MOBYLPC Fg.30 CARD CONNECTED TO THE MARKED SLOT(S).
