ADDC SR20-RM User Manual

Hide thumbs Also See for SR20-RM:
Table of Contents

Advertisement

Quick Links

Download this manual

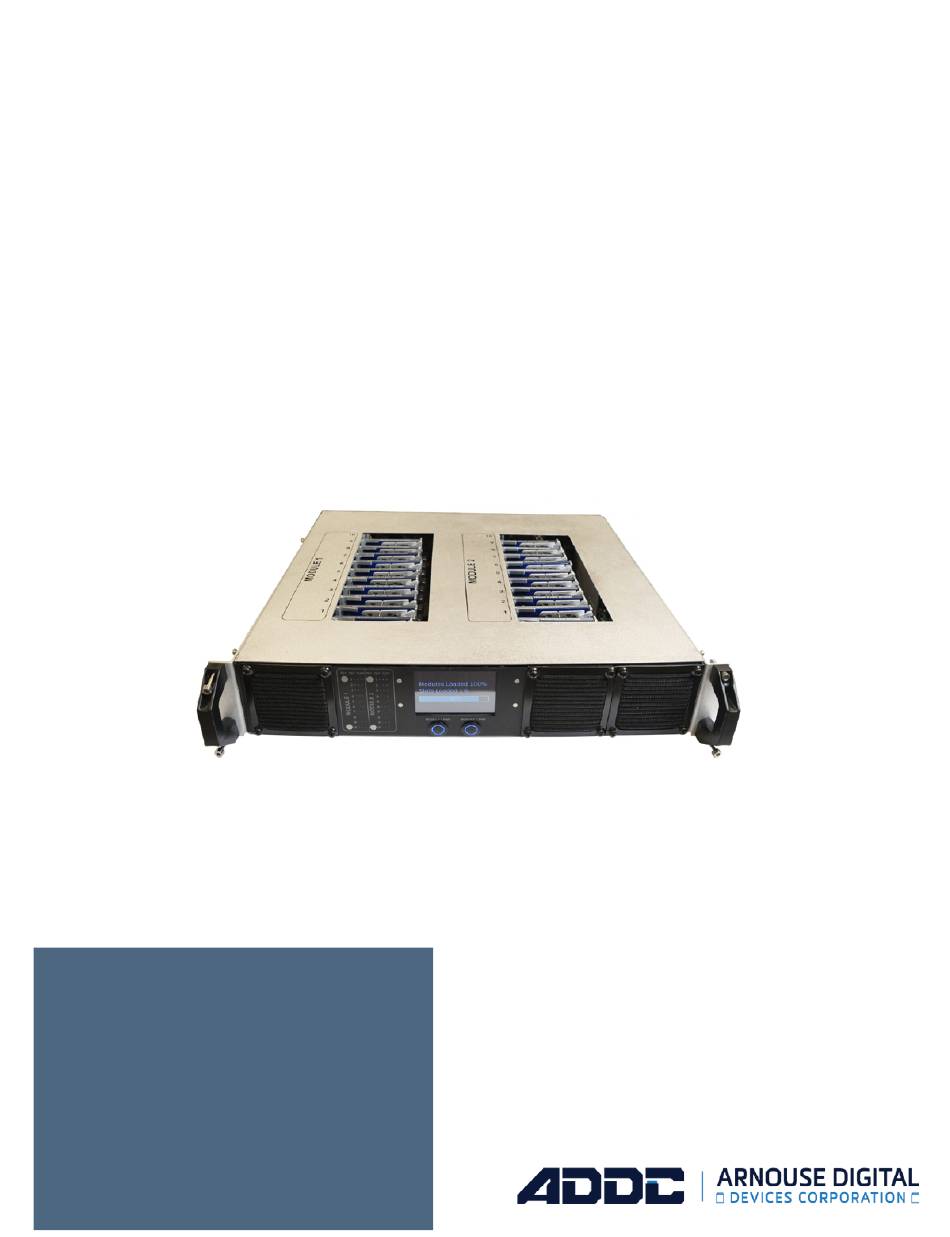

SR20-RM
USER GUIDE
PLUG INTO THE FUTURE OF TECHNOLOGY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR20-RM and is the answer not in the manual?

Questions and answers

Related Manuals for ADDC SR20-RM

Summary of Contents for ADDC SR20-RM

  • Page 1 SR20-RM USER GUIDE PLUG INTO THE FUTURE OF TECHNOLOGY...
  • Page 2 Revision History Revision Notes Revision 2.3 was published in V2.3 November of 2022. WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...

  • Page 3: Table Of Contents

    Section 1.1 What's in the Box? Section 2 SR20-RM Preparation Section 2.1 Preparing For Your SR20-RM Section 2.2 Installing Your SR20-RM into a Rack Section 2.3 Installing Your BioDigitalPC ® Section 2.4 SR20-RM Power Supplies Section 2.5 Networking Your SR20-RM Section 2.6...
  • Page 4 How to Read this Document This manual details installation of the chasis, the components inside of the chassis, and notable features of the SR20-RM server solution. Installations will be supported by ADDC. Unless otherwise specified, all instructions provided in this manual will assume that a user is a trained technician.
  • Page 5 Section 1.0 - Recieving Your SR20-RM Section 1.1 - What's in the Box? Equipment (Included) • SR20-RM Chassis • SR20-RM Top Cover [Comes Assembled] • BioDigitalPC Server Cards [Check Invoice ® for Quantity] • 2 AC/DC Power Supplies • 4 10Gbps SFP+ Cables •...

  • Page 6: Sr20-Rm Preparation

    Your SR20-RM is designed to operate at room temperature with its self-contained cooling. Power Considerations When properly configured and installed the SR20-RM can draw up to 700 Watts (400 Watts on average) depending on the number, load, and version of the BioDigitalPC s used.

  • Page 7: Installing Your Sr20-Rm Into A Rack

    Section 2.2 - Installing Your SR20-RM into a Rack This section provides information on installing the SR20-RM chassis into a rack unit with the quick-release rails provided.  Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor before you slide the unit out for servicing.

  • Page 8: Installing Your Biodigitalpc

    ® them.  Only trained technicians are authorized to work beneath the SR20-RM System Cover and access any of the components inside the system. Section 2.3.1 - Removing the SR20-RM Top Cover:...
  • Page 9 Unlock the locking tab. Step 3: Lift to remove the card from its slot Section 2.3.4 - Replacing the SR20-RM Top Cover Once complete, a technician should replace the SR20-RM Top Cover. WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
  • Page 10 Section 2.4 - Installing Your SR20-RM Power Supplies Section 2.4.1 - Remove an SR20-RM Power Supply 1. Push SR20-RM Power Supply locking tab to the left. 2.While holding the locking tab, pull the SR20-RM Power Supply handle and remove. Section 2.4.2 - Install an SR20-RM Power Supply 1.

  • Page 11: Networking Your Sr20-Rm

    Section 2.5 - Networking Your SR20-RM Section 2.5.1 - Minimal/Testing Equipment 1 10/100 Ethernet Cable 1 External Computer (eg. a laptop) Section 2.5.2 - 1Gbps Networking Schema 2 10/100 Ethernet Cables 1 10/100/1000 Ethernet Cables 2 1 port 10/100/1000 Ethernet Switch RECOMMENDED Section 2.5.3 - 10Gbps Networking...
  • Page 12 Section 2.6 - Power On Your SR20-RM Section 2.6.1 - Single Feed Redundant Power Supply Configuration Power Source Section 2.6.2 - Dual Feed Redundant Power Supply Configuration Power Source Power Source  Each Power Source must be capable of the maximum draw of 650W.

  • Page 13: Sr20-Rm Overview

    Section 3 - SR20-RM Overview Network Connections Module Number Module Card Slot Number Front Interface WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
  • Page 14 Section 3.1 - SR-10 Modules As shown in the Section 3, the SR20-RM is broken up into two SR-10 Modules. Each SR- 10 Module contains 10 BioDigitalPC slots, each having three 1Gbps NICs attached to an ® integrated switch. Each switch has two SFP+ 10Gbps connectors and one 1Gbps RJ-45 connector broken out to the rear panel of the SR20-RM (See Section 3.2...
  • Page 15 Section 3.2.1 - AC Power Management Ports Section 3.2.2 - Management, Switch, and 10Gbps SFP+ Ports KVM Modules Port Remote Management and 1Gbps Ports Switch Hardware Ports 10 Gbps SFP+ Ports WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
  • Page 16 SR-10 Switch Web GUI #32 in the SR-10 Switch Web GUI 10G-A 10G-B 10G-AUX 10G-A 10G-B 10G-AUX An individual slot's 1Gbps NIC LEDs. One LED for each 1Gbps WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...

  • Page 17: Romware Software

    Section 4.1 - Login The web interface for ROMWare asks for credentials to log in and begin management and/or monitoring of your SR20-RM. Users are supplied with administrative credentials that have been factory set. Only one admin can be logged in at once.

  • Page 18: Main Screen Overview

    Section 4.2 - Main Screen Overview SR-10 #5 SR-10 #6 SR-10 #3 SR-10 #4 SR-10 #1 SR-10 #2 WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...

  • Page 19: Ac Power Monitoring

    Section 4.3 - AC Power Monitoring Information about the AC/DC Power Supplies can be shown by clicking the "Power AC to DC" GUI Element WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...

  • Page 20: Dc Power Control & Monitoring

    Power Module. “Clear Faults” will clear faults for this SR-10's power supply. Clicking on a box will show more information regarding the current status of the DC Power Supplies. WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
  • Page 21 Section 4.5 - BioDigitalPC Power Control & Monitoring ® Displaying the card management features of the SR20-RM is done by clicking the Slot Number. Powers on the BioDigitalPC Server card. ® Immediately removes power from the BioDigitalPC Server card. ®...
  • Page 22 Section 4.5 - BioDigitalPC Power Control & Monitoring ® BioDigitalPC Slot Number The unique SR20-RM slot number ® SR-10 Module Position The position number of the SR-10 Module within the SR20-RM BioDigitalPC Slot Position The Position of the Slot within the SR-10 ®...
  • Page 23 ® Disable Slot Disables the slot for this SR-10 module. Is Auto-Power On Enabled With this enabled, after boot up of the SR20-RM the BioDigitalPC ® in this slot will be powered on (if present) after Delay number of seconds.
  • Page 24 Clear all command history from comsole window. Enter your serial command here Click to send the specified command to the switch WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
  • Page 25 Appendix A - Run an SR20-RM Component Test Displaying the system components test for the SR20-RM is done by clicking the gear symbol then selecting the Test System components button.   SR-20RM is running a comprehensive test on system components. Results will be displayed on screen when completed.
  • Page 26 Appendix B: A Successful SR-20RM Component Test If any field is shown as RED instead of as GREEN, please contact ADDC Support for further diagnostics and troubleshooting. WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
