Summary of Contents for ADDC SR10-FDD

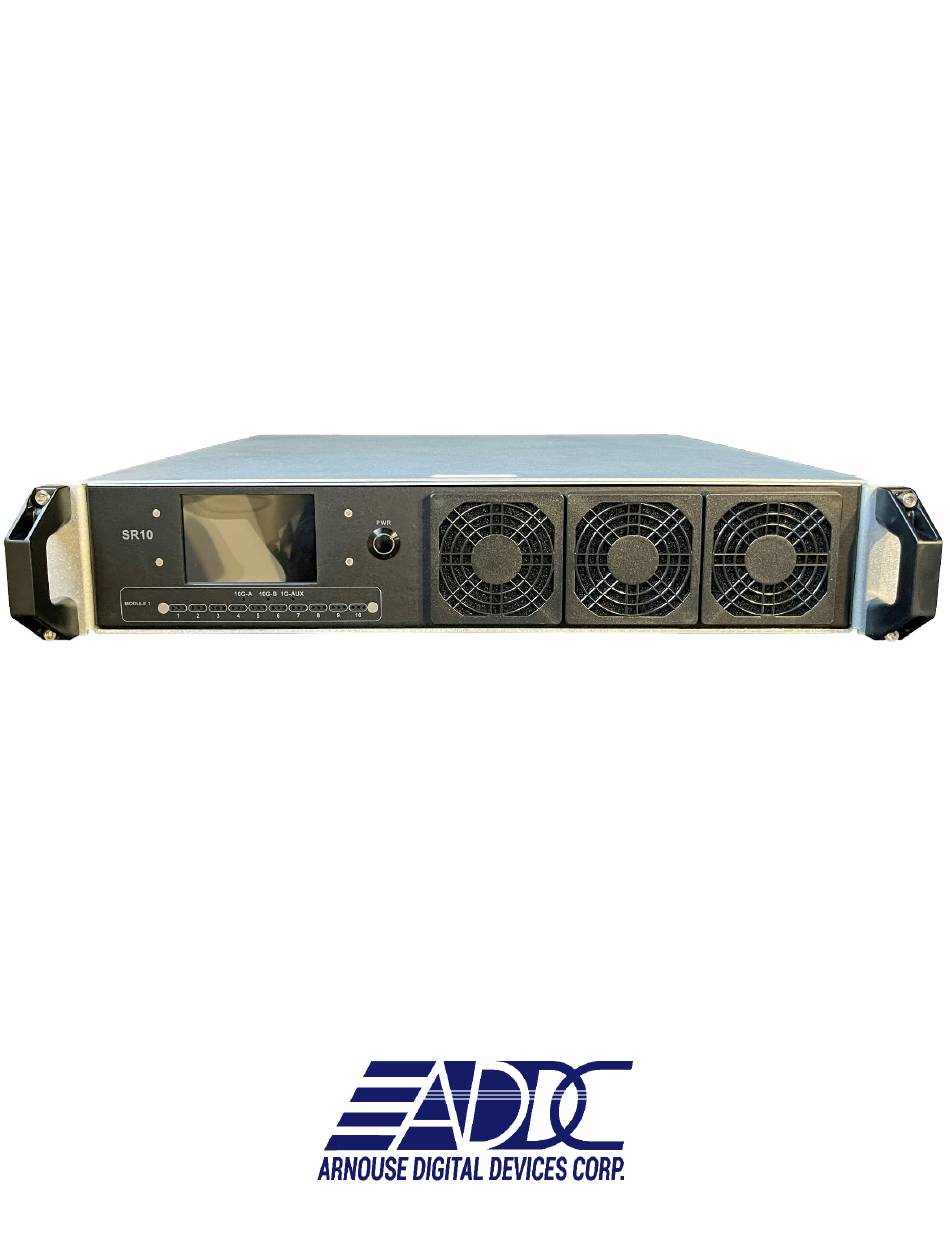

- Page 1 User Guide SR10-FDD Version 1.0 ● 09 February 2021 Arnouse Digital Devices Corp. 1983 Marcus Ave, Suite 104 Lake Success, NY 11042 (516)673-4444 www.addc.net...
- Page 2 Revision Notes V1.0 Revision 1.0 was published in December 2020...
- Page 3 Disclaimer The information provided in this document is provided "as is" without warranty of any kind. ADDC disclaims all warranties, either express or implied, including the warranties of merchantability and fitness for a particular purpose.
-
Page 4: Table Of Contents
System Operations ....................10 Installing, Starting and Stopping the System ............11 Installing the System .................... 11 Installing the SR10-FDD Into a Rack ..............11 Installing System Components ................11 Networking the System ..................17 Step by Step Operating Instructions ..............19 SR10-FDD Overview .................... - Page 5 Figure 19- SR10-FDD Switch Management Ports ............17 Figure 20- SR10-FDD Ethernet Networking Ports ............17 Figure 21- SR10-FDD Ethernet Networking Ports (Recommended Configuration) ..18 Figure 22- SR10-FDD Front Panel ................18 Figure 23- SR10-FDD Front Panel Controls and Indicators .......... 19 Figure 24- SR10-FDD Rear Panel Connections ............
-
Page 6: Introduction
The system’s power management controls via the front panel touch screen or the ROMWare GUI are PIN and password protected for security. System Organization Figure 1 is the block diagram for the SR10-FDD system. The system consists of the following main components: • SR10 Module •... -
Page 7: Figure 1- Sr10-Fdd System Block Diagram
Arnouse Digital Devices User Guide SR10-FDD Version 1.0 Figure 1- SR10-FDD System Block Diagram © Arnouse Digital Devices 2021. All rights reserved. Page 7 of 26... -
Page 8: System Description
Version 1.0 System Description The SR10-FDD combines the power of the ADDC SR10 module with the Made in the USA, long distance, fiber KVM (Keyboard, Video, Mouse) terminal for extraordinary capability. The SR10 module specifically designed to be integrated into a SR10-FDD features 10 separate and distinct computers with USB and video delivered through fiber KVM. -
Page 9: Figure 2- Sr10-Fdd Chassis
Arnouse Digital Devices User Guide SR10-FDD Version 1.0 Figure 2- SR10-FDD Chassis Figure 3- Cable Management Arm Figure 4- 10Gbps SFP+ Cables Figure 5- AC Power Cord Figure 6- AC/DC Power Supply Figure 7- BioDigitalPC ® © Arnouse Digital Devices 2021. All rights reserved. -
Page 10: Environment
• System Operations The SR10-FDD can operate unattended once is properly installed and configured for remote KVM operation. The remote users can have as much control of each PC Card as allowed by the system administrator. Each user may be able to login and logout of the PC Card and operate applications also as allowed by the System Administrator. -
Page 11: Installing, Starting And Stopping The System
UPS unit has enough capacity to run the system. Installing the SR10-FDD into a rack The SR10-FDD does not ship with rack rails. The rails must be provided by the end user; follow the rail and rack manufacturers installation instructions. -
Page 12: Figure 8- Sr10-Fdd Rear Panel
Removing the SR10-FDD Top Cover To add or remove BioDigitalPC ® s, the SR10-FDD chassis must be pulled out of the rack, and the SR10-FDD's Top Cover needs to be removed temporarily. Warning: The SR10-FDD can be running while installing new server cards. However, caution must be taken to prevent damage to the equipment as exposed circuit components may short if any metal objects are inadvertently dropped inside the chassis. -
Page 13: Figure 11- Pc Card Track
Arnouse Digital Devices User Guide SR10-FDD Version 1.0 Step 3- Insert Card with “Arnouse Digital Devices Corp.” facing upwards and the • connector of the card is facing towards the PC Card ejection lever. When inserting the card, place it between the two horizontal metal bars, ensuring the card is going to be aligned properly. -
Page 14: Figure 13- Sr10 Pc Card Unlocking
Arnouse Digital Devices User GuideSR10-FDD User Guide-V1.0_12-21-2020.docx SR10-FDD Version 1.0 3.3.3 Removing a BioDigitalPC ® Step 1- Find the locking tab located to the right of the card slot. Unlock the locking tab. • Figure 13- SR10 PC Card Unlocking •... -
Page 15: Figure 15- Pc Card Ejection Lever Position
Arnouse Digital Devices User Guide SR10-FDD Version 1.0 Step 3- Reset the ejection lever to the original position to make the PC Card removal • easier. Figure 15- PC Card ejection lever position 3.3.4 Replacing a KVM Over Fiber PCB Stack Module Disconnect all cables (USB, miniDP, 5V power, and Fiber Optic) •... -
Page 16: Figure 18- Sr10-Fdd Ac/Dc Power Supply
User GuideSR10-FDD User Guide-V1.0_12-21-2020.docx SR10-FDD Version 1.0 3.3.5 Replacing the SR10-FDD Top Cover Once complete, a technician should replace the SR10-FDD top cover following the 2-step removal process in reverse order. 3.3.6 Installing the AC/DC Power Supply Locking Tab Handle Figure 18- SR10-FDD AC/DC Power Supply Step 1- Push the AC power supply straight into the power supply cavity. -
Page 17: Networking The System
1 each 10/100 Ethernet Cable • 1 each Cisco compatible RS232 Serial Communications Cable • 1 each External Computer (e.g., a laptop) • Figure 19- SR10-FDD Switch Management Ports 3.4.2 1Gbps Networking Schema 1 each 10/100 Ethernet Cable • •... -
Page 18: Figure 21- Sr10-Fdd Ethernet Networking Ports (Recommended Configuration)
• Figure 21- SR10-FDD Ethernet Networking Ports (Recommended Configuration) 3.4.4 SR10-FDD Power ON and OFF Connect SR10-FDD to a 20 Amp AC power receptacle. • Press the ON/OFF Power Button on the front panel. • The blue ring LED on the power button should illuminate. -
Page 19: Step By Step Operating Instructions
ROMWare Lite GUI. SR10-FDD Overview LED NIC Power Button Fan Filters Activity Indicators LCD Touchscreen Figure 23- SR10-FDD Front Panel Controls and Indicators Switch Management, Power Management and 1G Ethernet Ports KVM Fiber Optic AC/DC Power AC/DC Power... -
Page 20: Sr10 Modules
Version 1.0 SR10 Modules As shown in the Section 3, the SR10-FDD consists of a single SR-10 Module and 10 KVM over fiber PCBs. The SR-10 Module contains 10 BioDigitalPC slots, each having three 1Gbps NICs attached to an ®... -
Page 21: Figure 26- Sr10-Fdd Front Panel
Port #32 in the SR-10 Port. Shown as Port #33 in Switch Web GUI Switch Web GUI the SR-10 Switch Web GUI Figure 26- SR10-FDD Front Panel 4.2.2 Rear Panel • Refer to Figure 20 The Power OK green LED on the power supply will illuminate as soon as the AC •... -
Page 22: Romware Lite Software
SR10-FDD Version 1.0 ROMWare Lite Software The ROMWare Lite software in embedded in the SR10-FDD and all that is required for its operation is a web browser (Chrome is recommended). Login The web interface for ROMWare Lite asks for credentials to log in and begin management and/or monitoring of your SR10-FDD. -
Page 23: Pc Card Power Control And Monitoring
Arnouse Digital Devices User Guide SR10-FDD Version 1.0 PC Card Power Control and Monitoring Front Panel Touchscreen Overview System Startup Screen – Allow 3-4 minutes for system to boot up. • © Arnouse Digital Devices 2021. All rights reserved. Page 23 of 26... - Page 24 User GuideSR10-FDD User Guide-V1.0_12-21-2020.docx SR10-FDD Version 1.0 ADDC Support Screen – This screen is displayed right after the system boots up • and will be closed after ten seconds or it can also be closed by clicking on the red button.
- Page 25 Arnouse Digital Devices User Guide SR10-FDD Version 1.0 PC Card Power Control Screen – Clicking on any slot will bring up the power • control screen. Powers ON the BioDigitalPC ® Server card. Immediately removes power from the BioDigitalPC ®...
- Page 26 Arnouse Digital Devices User GuideSR10-FDD User Guide-V1.0_12-21-2020.docx SR10-FDD Version 1.0 A lock screen can be activated from the web interface. By default, the lock • screen is disabled; however, it can be enabled from ROMWare Lite. When enabled, the lock screen will require you to enter the default pin number 123123 to access the PC Card Slots Power Status Screen.
