PREFACE
Thank you for purchasing the Navis tank level monitor. This manual provides information for the best performance and safe application.
This manual does not cover the sensors for which the manuals will come separately.
Read this manual carefully before starting the installation. Keep this manual after installation for future reference.
INTRODUCTION
LW410 models are long-range display units which receive data from NAVIS level sensors, display various level data and use internal
and external alarms for warnings and control of pumps, valves etc. Wi-Fi compatibility (LW410XW/D or LW410XL/D model) allows real-
time data monitoring on "Navis LiveData" web interface. 4-20 mA output (LW410XW/D or LW410XL/D model) allows connection to
external devices. Various level data can be logged to SD card (LW410XL/D model).

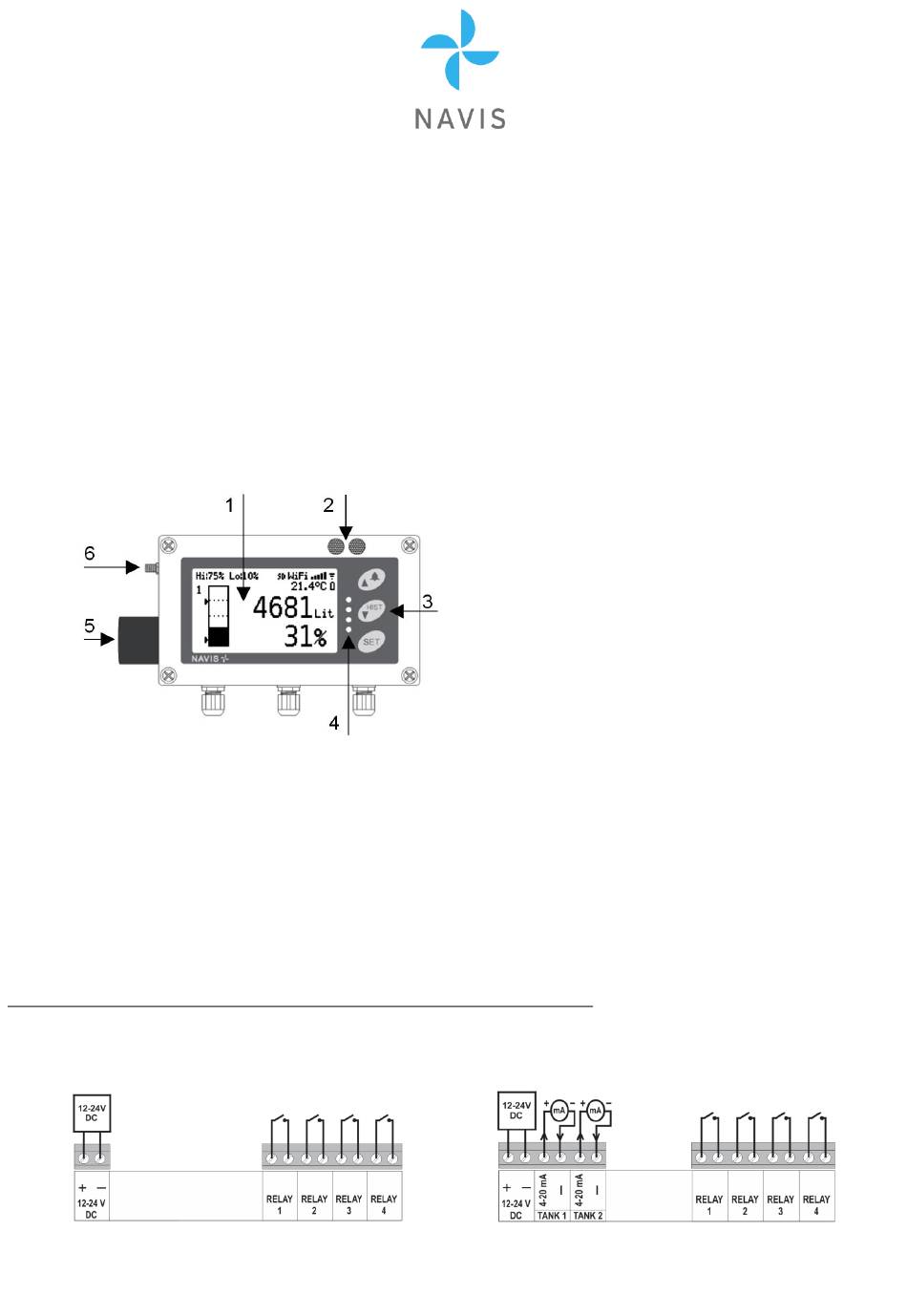

Figure 1. (LW410 display unit – front panel)
MOUNTING
Select the position where the signal reception is strong enough under all conditions. Use remote antenna if necessary.
Display unit can be mounted onto the ferrous surface with four mounting magnets (optional accessories) or with mounting screws (not
included) to any flat surface.
Mounting the display unit with screws:
Unscrew all 4 plastic screws and remove the front panel. Note that the screws can be pulled out only at the correct angle. Place the
rear panel of the display unit to the final mounting position and mark the position for the bores. Remove the casing and drill holes for
the mounting screws. Place the rear panel of the display unit in position and tighten the mounting screws. Attach the front panel of the
display unit with 4 plastic screws. Do not use excessive force to tighten plastic screws.
WIRING
Please note! Switch off the power before connecting the power supply to the display unit.
Unscrew all 4 plastic screws and remove the front panel. Connect the 12-24 V DC power supply. For using external alarm devices,
connect them to the relay connection terminals. For 4-20mA outputs (only on LW410XW/D and LW410XL/D models), connect the
connection terminals to external devices, please note 4-20mA outputs are only available on tank 1 and 2. Place the front panel back
into position and tighten the screws. Switch ON the power supply and check the operation.
(wiring diagram for LW410/D model)
LW410 DISPLAY UNIT
Models: LW410/D, LW410XW/D, LW410XL/D
Figure 2.
MANUAL
1. Display
2. Red and yellow alarm lights
3. Buttons
4. Relay status lights
5. Buzzer
6. SMA antenna connector
(wiring diagram for LW410XW/D and LW410XL/D models)
Figure 3.
Advertisement
Table of Contents
Related Manuals for NAVIS LW410
Summary of Contents for NAVIS LW410
- Page 1 INTRODUCTION LW410 models are long-range display units which receive data from NAVIS level sensors, display various level data and use internal and external alarms for warnings and control of pumps, valves etc. Wi-Fi compatibility (LW410XW/D or LW410XL/D model) allows real- time data monitoring on “Navis LiveData”...
-
Page 2: Antenna Connection
ANTENNA CONNECTION Connect the included antenna to the SMA connector of the display unit only when the power supply is switched OFF. RANGE Connection between the sensor and display unit works on a free 868 MHz band. The range is up to 1000 meters when the sensor transmitter or antenna is mounted on elevated position with no obstacle between the sensor and the display unit antenna. - Page 3 • 1 year history: each column represents 15 days, column is written on 1 and 15 of a month...
- Page 4 SETTINGS MENU To enter settings menu, hold “F” button for approximately 2 seconds, until menu is shown on screen. For in-depth description of all parameters please refer to chapter DEVICE SETTINGS. CONNECTING SENSOR Ensure sensor is powered on and take a note of sensor address which is printed on sensor label. Set the corresponding sensor address first, check the address settings procedure in the chapter “SETTINGS/Tanks”.
-
Page 5: Relay Operation
RELAY OPERATION Relays can be programmed via SETTINGS/Relays, each relay can be connected to any of the four tanks (multiple relays can be connected to same tank), and can preform various outputs depending on parameters. Current relay status is indicated by four relay status lights located on front panel, light is turned on when relay is closed. Upper most relay status light indicates state of relay 1, second relay 2, third relay 3 and bottom most represents relay 4. -
Page 6: Battery Replacement
Data packet is transmitted through Wi-Fi connection to Navis LiveData web interface every minute for every connected sensor, up to 4 packets per minute. Receiver unit functions as client on network and requires no specific port forwarding for operation. - Page 7 • Reattach the front panel of the display unit and tighten four plastic screws, do not use excessive force to tighten plastic screws...
-
Page 8: Device Settings
DEVICE SETTINGS To enter device settings menu press and holding SET button for approximately 2 seconds. To select entry shortly press buttons UP or DOWN, confirm selection by short press of SET button. To exit settings menu select “Exit settings”, to exit settings completely from any sub menu press and hold SET button for approximately 2 seconds. - Page 9 Back Return to main settings menu Device S/N - MAC Serial number (device client MAC address) needed for Navis LiveData web interface registration or device adding. Settings: Info Device information is displayed here: Manufacturer name, device model, software build revision.
-
Page 10: Troubleshooting
(LW410XL/D model) RTC malfunction – Check Real time clock battery • (Custom, Wi-Fi) Settings reset – Some or all user settings have been reset to default values, please check all settings for validity • Memory loss detected – Device software may be corrupted, please contact Navis for support... -
Page 11: Technical Data
WARRANTY (LIMITED) The warranty period of NAVIS products is one year after the date of purchase. During the limited warranty period any defective product will be repaired or replaced with a comparable product without charges. The claimed product will be repaired or replaced only when returned to the store where it was purchased together with original invoice.
