Thank you for purchasing a Navis wireless level receiver. Read the instructions carefully and save them for future reference. The
instructions for the sensor unit are not part of these instructions, they are included separately with the sensor unit.
INTRODUCTION
LW410HUB receiver unit is designed to display liquid level data, which are transmitted by Navis level sensors. Receiver can receive
and display data from up to four different level sensors. Level data is displayed in percentage, volume measurement units and
graphical. Wi-Fi connection enables view of level data via web portal "Navis Level LiveData".
INSTALLATION
Choose position of installation carefully to ensure good reception from sensors in all conditions.
Casing can be fixed to surface with mounting screws (not included).
If signal reception at selected location is weak or degraded, auxiliary antenna can be used.
Installation with mounting screws:
Remove four screws from front panel of the receiver. Place receiver in the desired spot and mark position of mounting holes on the
surface. Drill holes for mounting screws. Fasten the rear panel of the receiver with the mounting screws and re-install front panel of the
receiver.
ANTENNA
Antenna can be screwed on antenna connector while receiver is turned off.
POWER ADAPTER
Plug in compatible 9V power adapter (included).
OPERATION
If receiver unit was part of level sensor set, sensor address already comes preset. Otherwise, level sensor address has to be set
manually. Address setting is further described in chapter "SETTINGS/Settings: Tanks".
Receiver will receive data from sensor every 5 seconds and display them on LCD screen. With use of three buttons underneath front
panel of the receiver, operation parameters can be set. To access the buttons underneath front panel unscrew four screws on the
housing.
LW410HUB DISPLAY UNIT

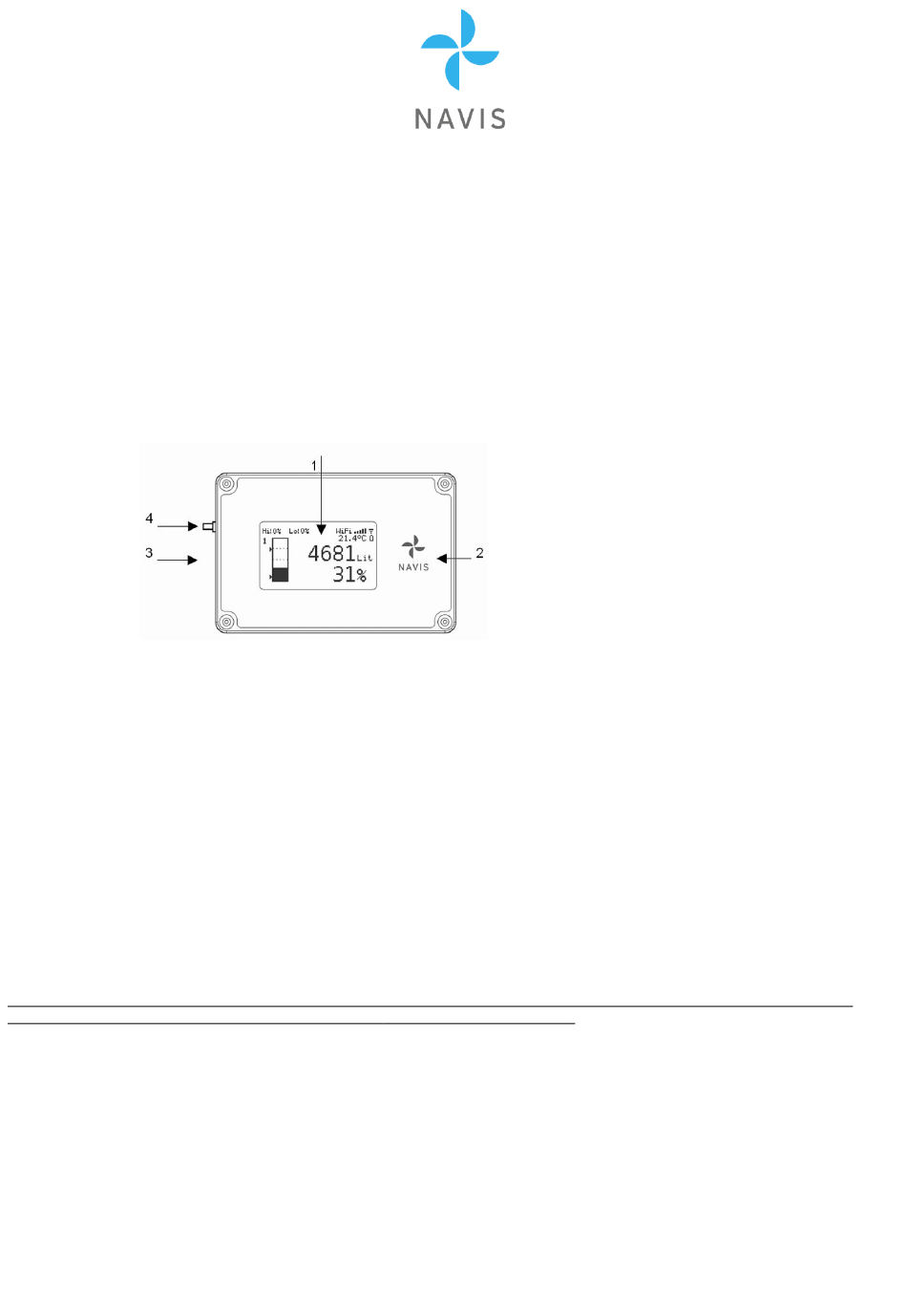

Image 1: LW410HUB front panel
USER MANUAL
Model: LW410HUB
1. LCD display
2. Buttons under the front panel
3. Power connector
4. Antenna connector
Advertisement
Table of Contents
Related Manuals for NAVIS LW410HUB
Summary of Contents for NAVIS LW410HUB
- Page 1 INTRODUCTION LW410HUB receiver unit is designed to display liquid level data, which are transmitted by Navis level sensors. Receiver can receive and display data from up to four different level sensors. Level data is displayed in percentage, volume measurement units and graphical.
- Page 2 WIRELESS SENSOR CONNECTION Connection between sensor and display unit works over open/free 868 MHz band. Long SMA antenna provides up to 1000 m range with line of sight, without any obstacles between antennas, where antennas should be installed at least 2 m above the terrain. Within buildings signal degrades/weakens significantly, usually limited to two or three walls.
- Page 3 NAVIS LEVEL LIVEDATA WEB PORTAL Every minute level data can also be transmitted to Navis Level LiveData portal over Wi-Fi connection. Level LiveData portal enables view of current level, history graphs and logs. For registration of receiver unit and account creation on Level LiveData web portal see user manual on portal.
- Page 4 List of settings General General settings Tanks Tank settings Wi-Fi Wi-Fi settings Info Device information Exit Exit and save settings Settings: General Default Range Description Language English English/Slovene Display language Back Return to main settings menu Settings: Tanks Default Range Description 1 –...
- Page 5 3. Repeater WARRANTY (LIMITED) The warranty period of NAVIS products is one year after the date of purchase. During the limited warranty period any defective product will be repaired or replaced with a comparable product without charges. The claimed product will be repaired or replaced only when returned to the store where it was purchased together with original invoice.
