PREFACE
Thank you for purchasing the Navis anemometer. This manual provides information for the best performance and safe application of
the anemometer display unit. This manual does not cover the anemometer sensors for which the manuals will come separately.
Read this manual carefully before starting the installation. Keep this manual after installation for future reference.
INTRODUCTION
W410/BAT models are long-range receiver/display units which receive data from NAVIS wind sensors, display various wind data, and
use alarms for warnings about excess wind speed. Smartphone compatibility (W410XB/BAT model only) allows real-time wind data
monitoring on smartphones or tablets.

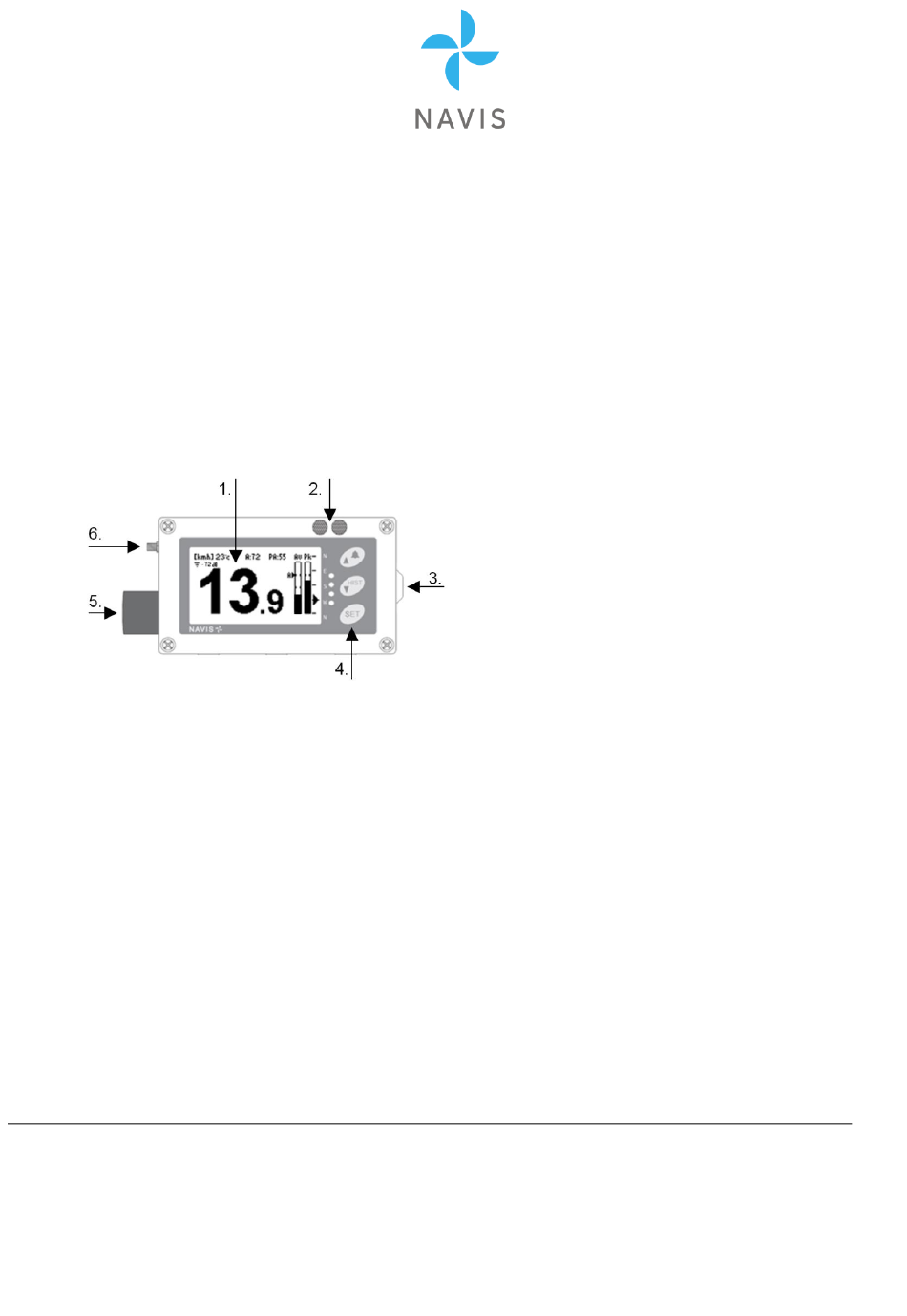

Figure 1. (W410/BAT display unit – front panel)
The W410/BAT display is compatible with NAVIS sensors: WS 010-1 (wind speed sensor, standard range), WS 011-1 (wind speed
sensor, extended range), WSD 010-1 (wind speed/direction sensor, standard range), WSD 011-1 (wind speed/direction sensor, extended
Range).
MOUNTING
Select the position where the signal reception is strong enough under all conditions. Use remote antenna if necessary.
Display unit can be mounted onto the ferrous surface with four mounting magnets (optional accessories) or with mounting screws (not
enclosed) to any flat surface.
Mounting the display unit with screws:
Unscrew all 4 plastic screws and remove the front panel. Note that the screws can be pulled out only at the correct angle. Place the
rear panel of the display unit to the final mounting position and mark the position for the bores. Remove the casing and drill holes for
the mounting screws. Place the rear panel of the display unit in position and tighten the mounting screws. Attach the front panel of the
display unit with 4 plastic screws.
ANTENNA CONNECTION
Connect the enclosed antenna to the SMA connector on the display unit only when the display unit is switched OFF.
OPERATION
Display unit is activated by a switch on the side of the housing.
If the display unit is delivered as a set, with the sensor included, the correct sensor address is already set.
Otherwise please set the correspondent sensor address first. Check the address settings procedure in the chapter "SETTINGS".
Turn the sensor ON by rotating the sensor cups (see sensor user manual).
Fresh wind data are received every two seconds. If data are not received for more than 30 seconds, the "No data" notification appears
on the display.
W410/BAT DISPLAY UNIT
MANUAL
Models: W410/BAT/D, W410XB/BAT/D
1. Display
2. Red and Yellow alarm lights
3. ON/OFF switch
4. Keys
5. Buzzer
6. SMA antenna connector
Advertisement
Table of Contents
Related Manuals for NAVIS W410/BAT
Summary of Contents for NAVIS W410/BAT
- Page 1 Figure 1. (W410/BAT display unit – front panel) The W410/BAT display is compatible with NAVIS sensors: WS 010-1 (wind speed sensor, standard range), WS 011-1 (wind speed sensor, extended range), WSD 010-1 (wind speed/direction sensor, standard range), WSD 011-1 (wind speed/direction sensor, extended range).
- Page 2 DISPLAY Switching between pages: With short presses of the HIST key you can open pages 2 and 3 to see the “Wind speed” and “Max alarm” history respectively. The display will return to the first page by holding down the HIST key for 3 seconds or automatically after 1 minutes of inactivity. page: 1.
- Page 3 SETTINGS: SETTINGS PROCEDURE 1. Hold down the SET key to enter the settings menu. If password protection is active, enter the correct password. The group of settings displays on the display. 2. Select the group by using the up and down keys and press the SET key to view the selected group. 3.
- Page 4 WARRANTY (LIMITED) The warranty period of NAVIS products is one year after the date of purchase. During the limited warranty period any defective product will be repaired or replaced with a comparable product without charges. The claimed product will be repaired or replaced only when returned to the store where it was purchased together with original invoice.
