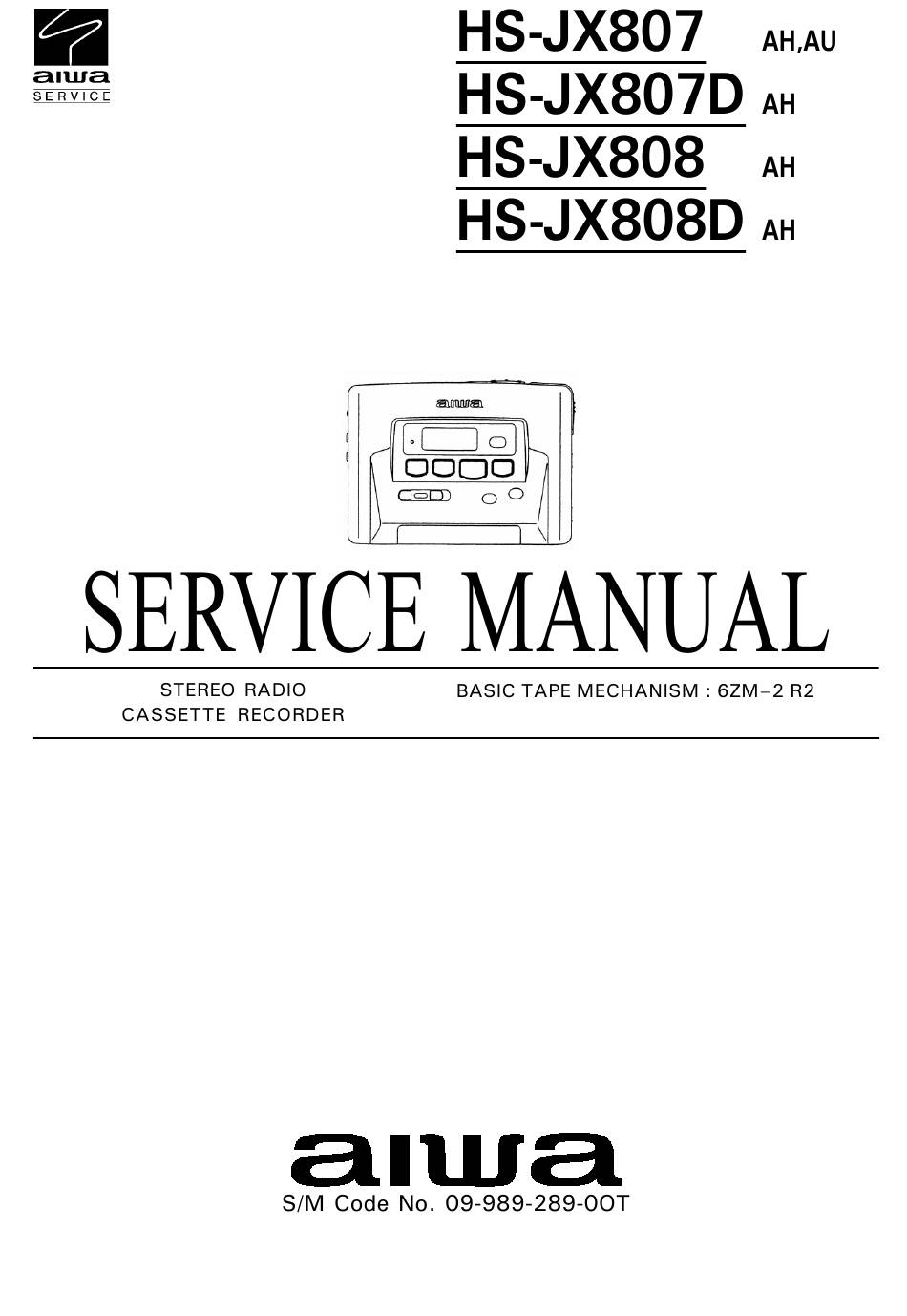

Aiwa HS-JX807 Service Manual

Stereo radio cassette recorder basic tape mechanism : 6zm-2 r2.
Hide thumbs

Advertisement

Advertisement

Table of Contents

   Also See for Aiwa HS-JX807

   Related Manuals for Aiwa HS-JX807

   Summary of Contents for Aiwa HS-JX807

  • Page 6 CHIP RESISTOR PART CODE Chip Resistor Part Coding Figure Resistor Code Value of resistor Chip resistor Dimensions Symbol Wattage Type Tolerance Resistor Form 1608 1/16W 0.45 2125 1/10W 1.25 0.45 3216 1/8W 0.55...
  • Page 12 SCHEMATIC DIAGRAM – 1 (MAIN:1/2 / JACK / DD / FLEX) <HS-JX807 / 807D>...
  • Page 13 SCHEMATIC DIAGRAM – 2 (MAIN:1/2 / JACK / DD / FLEX) <HS-JX808 / 808D>...
  • Page 14 SCHEMATIC DIAGRAM – 3 (MAIN:2/2)
  • Page 16 IC DESCRIPTION IC, TC9327F-017 Pin No. Pin Name Description Pin No. Pin Name Description DOLBY OUT DOLBY ON/OFF control output pin. 1 ~ 4 COM1~COM4 LCD common output 1~4. 5 ~ 21 SEG1 ~ SEG17 LCD segment output 1~17. 70/120 Pin to output normal tape and metal tape switching.
  • Page 17 ADJUSTMENT PRACTICAL SERVICE FIGURE <TUNER SECTION> <TAPE SECTION> A MAIN C.B <FM SECTION> Tape speed : 3015Hz ± 50Hz SFR701 Sensitivity : Wow & flutter : Less than 0.52% (RMS) (IHF, THD 3%) Less than 17dB Take-up torque : 20 ~ 30g-cm (FWD, REV) [at 87.5 / 98.5 / 108.0MHz] F.F torque : 70 ~ 150g-cm...
  • Page 18 MECHANICAL EXPLODED VIEW 1/1 MECHANICAL PARTS LIST 1 / REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION LCD601 MAIN C.B JACK, 3.5 ST 5P <807AH, 807AU, 807DAH>...
  • Page 19 86-ZM2-243-310 86-ZM2-243-310 SPR-C,BT SPR-C,BT 86-ZM2-241-210 86-ZM2-245-310 86-ZM2-213-210 SPR-C,SLIP R SPR-C,SLIP L SPR-C,FR C0.3 86-ZM2-220-210 86-ZM2-217-210 86-ZM2-215-210 SPR-T,HEAD SPR-E,CAM L SPR-E,CAM R 86-ZM2-230-110 86-ZM2-229-110 86-ZM2-255-010 SPR-T,PINCH L 86-ZM2-254-010 SPR-T,PINCH R SPR-T,PIN BACK L SPR-T,PIN BACK...
  • Page 20 EH FLEX C.B HEAD FLEX C.B SH,1.2-2.9-0.25SL SH,1.2-2.9-0.25SL PLATE,THRUST SHAFT CAPSTAN SHAFT CAPSTAN...
