Technical Practice

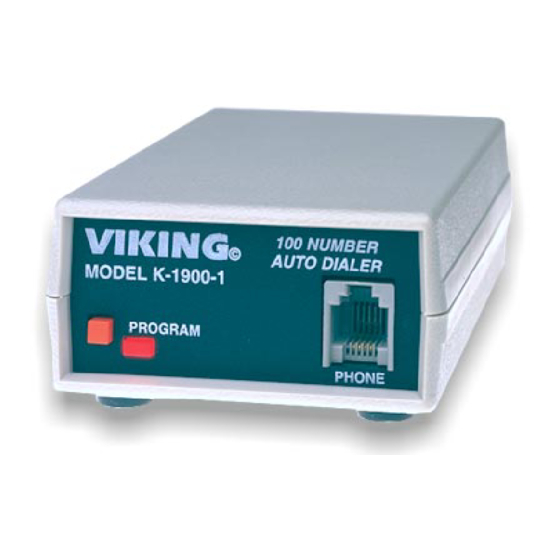

The K-1900-1 adds speed dial memory to
any Touch Tone phone. Alternately, the unit
can be used as a dedicated, multi-number
dialer.
The K-1900-1 is capable of storing 100
telephone numbers in non-volatile E2memory
and will operate on any standard loop start
C.O. line or analog PABX/KSU station with
any conventional phone.
When programmed as a dedicated dialer, the K-1900-1 will only allow the user to dial
one of 100 programmed telephone numbers by entering the 1 or 2 digit code. When
programmed as an optional speed dialer, the user can dial through the unit as normal
or enter a 1 or 2 digit code for the K-1900-1 to speed dial one of 100 of your most
commonly used numbers.
Features
• Programmable to add speed dial memory or
be used as a dedicated, multi-number dialer
• Stores up to (10) 32 digit and (90) 16 digit
phone numbers
2
• Non-volatile E memory (no batteries required)
• Local or remote programmable with a standard
Touch Tone phone
• Telephone line powered
• Touch Tone or pulse dialing with normal or high
speed settings
• User dialing restriction (programmable on/off)
• LED programming indicator
• Push button security code override
• Allows 911 and 311 emergency dialing
Sales...(715) 386-8861
Telecommunication Peripheral Products
Add Speed Dial Memory to Any
Touch Tone Phone
http://www.VikingElectronics.com
E-mail...Sales@VikingElectronics.com
2
Applications
• Add 100 number speed dial memory to any
standard phone
• Security and emergency phones
• Interactive point of sale displays
• Kiosks
• Catalog sales
• ATM's
• Hot-Line reservation phones for hotels, airlines,
car rentals, etc.
Made in the U.S.A.
Specifications
Power: Telephone line powered (24V DC/20mA minimum)
Dimensions: 70mm x 36mm x 120mm (2.8" x 1.4" x 4.7")
Shipping Weight: .45 kg (1lb)
Environmental: 0° C to 32° C (32° F to 90° F) with 5% to 95%
non-condensing humidity
Connections: (1) RJ11 jack, (1) RJ11 plug
K-1900-1
Multi-Number Dialer
July, 24 2000
Advertisement
Table of Contents
Related Manuals for Viking K-1900-1
Summary of Contents for Viking K-1900-1
- Page 1 100 programmed telephone numbers by entering the 1 or 2 digit code. When programmed as an optional speed dialer, the user can dial through the unit as normal or enter a 1 or 2 digit code for the K-1900-1 to speed dial one of 100 of your most commonly used numbers.
- Page 2 The K-1900-1 connects in series between a Touch Tone telephone and a C.O. line or analog PABX/KSU extension. C.O. line or analog PABX/KSU extension Programming button and indicator LED A. Accessing the Programming Mode 1. Remote Programming (with or without a security code) a.
- Page 3 1900-1 will dial 911 or 311 respectively. G. Pulse/Tone Dialing The K-1900-1 can be programmed to dial fast or slow in both Touch Tones or pulse. To program the K-1900-1 to pulse dial, enter 0 while programming. To program the K-1900-1 to Touch Tone dial (factory default), enter while programming.
- Page 4 (manual user dialing or speed dialing is allowed) In the “speed dialer” mode, the user may use the K-1900-1 as a speed dialer or dial manually. If only one or two Touch Tone digits are entered, the K-1900-1 will momentarily disconnect the telephone line (factory programmed setting) and speed dial the phone number stored in the associated memory position.
