Why pay the premium of leased or dedicated phone lines?
The K-1900-4 will automatically dial a prepro-
grammed number, of up to 16 digits, whenever an
associated telephone is taken off hook. Using non-
volatile E
powered and will operate on any loop start central
office line or analog PABX/KSU extension.
The K-1900-4 is easily programmed remotely or
locally using a standard Touch Tone phone.
!
This product does not eliminate the
possibility of toll fraud! To further protect
against fraudulent calls, order a "pulse
only" phone line from your local phone
company.
F
e
a
t
u
r
e
s
F
e
a
t
u
r
e
s
• Touch Tone programmable
• Telephone line powered
E
2
• Non-volatile
memory (no batteries required)
• Ring detection (won't dial on inbound calls)
• User programmable security code
• Programmable pauses in four second increments
• Touch Tone dialing restriction feature
• Programmable dialing speed (10 pps - 20 pps)
• Can be configured to operate from a contact
closure and dial multiple phone numbers (Fax
Back Document 818)
I
n
s
t
a
l
l
a
t
i
o
I
n
s
t
a
l
l
a
t
i
o
Install the K-1900-4 in series between a telephone and a C.O.
line or analog PABX/KSU station.
C.O. Line or Analog
PABX/KSU Station
S
S
C
O
M
O
L
U
T
I
O
N
S
C
O
M
O
L
U
T
I
O
N
S
Replace Dedicated Phone Lines with
a Pulse Hot-Line Dialer
memory, the K-1900-4 is telephone line
2
n
n

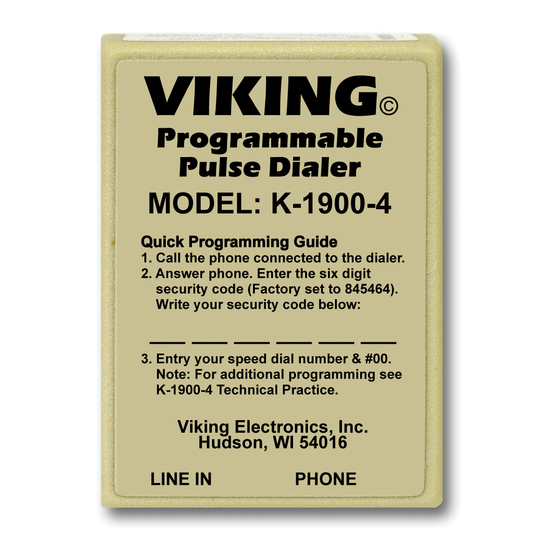

VIKING
Standard Analog
©
Programmable
Telecom Device
Pulse Dialer
MODEL: K-1900-4
Quick Programming Guide
1. Call the phone connected to the dialer.
2. Answer phone. Enter the six digit
security code. (Factory set to 845464)
Write your security code below:
3. Enter your spped dial number & #00.
Note: For additional programming see
K-1900-4 Technical Practice.
Viking Electronics, Inc.
Hudson, WI 54016
LINE IN
PHONE
P
r
a
c
P
r
a
c
2
1
C
2
1
C
F
O
R
T
H
E
S
T
F
O
R
T
H
E
S
T
A
p
p
l
i
A
p
p
l
• Security and emergency phones
• Interactive point of sale displays
• Apartment security
• Catalog sales
• Automated Teller Machines (ATM's)
• Replaces leased ring down circuits
• Hot-Line reservation phones for hotels, air
lines, car rentals, etc.
P
r
o
d
u
P
r
o
d
u
T
e
c
h
T
e
c
h
h
t
t
p
h
t
t
S
p
e
c
S
p
e
c
Power: Telephone line powered (24V DC 20 mA minimum)*
Dimensions: 74mm x 53mm x 25mm (2.9" x 2.1" x 1.0")
Shipping Weight: .45 kg (1 lb)
Environment: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-
condensing humidity
Connections: (1) RJ11 plug, (1) RJ11 jack
Dialing Speed: Normal - 10 pps, Fast - 20 pps
*Note: When installing multiple line powered products (K-1900-
4 and E-10/E-15/E-20A/K-1500-EHF) on the same line, addition-
al talk battery voltage and loop current may be required.
K-1900-4
K-1900-4
Hot-Line
t
i
c
e
t
i
c
e
Pulse Dialer
August 10, 2000
