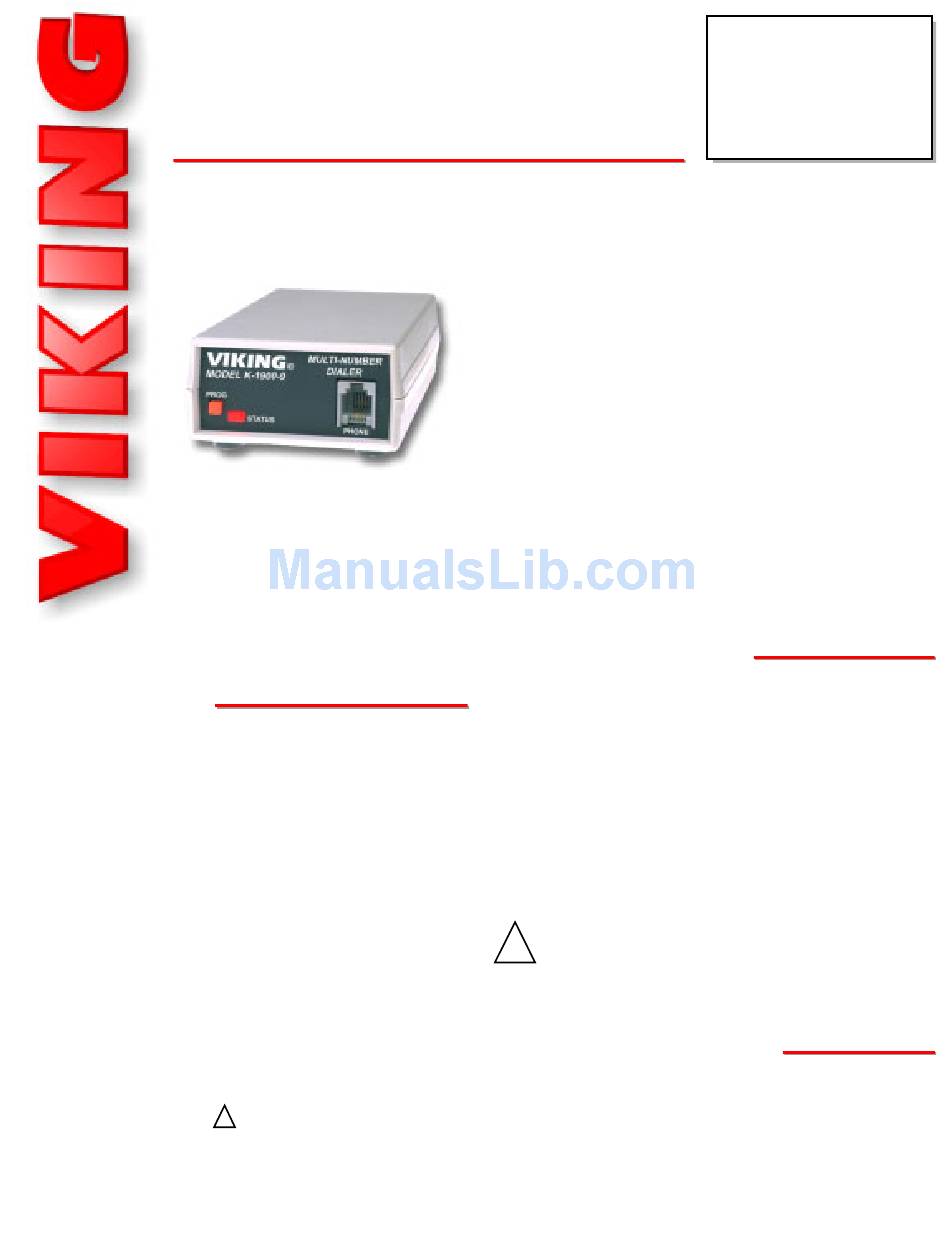

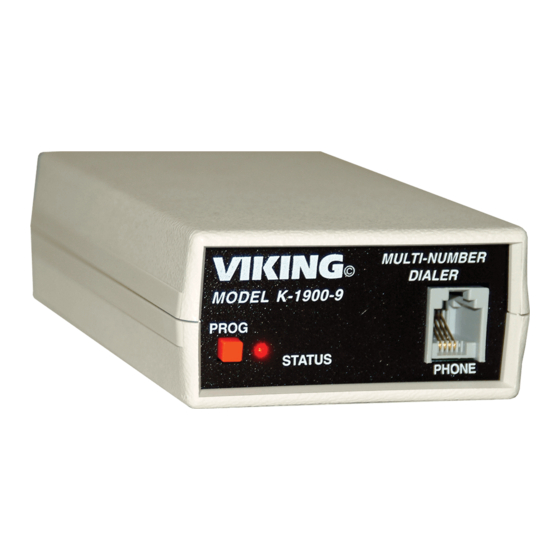

When programmed as a multi-number dialer, the K-1900-9 will allow the user to enter
a 1 or 2 digit Touch Tone code which will trigger the unit to speed dial one of up to 100
different telephone numbers. When programmed as a single number hot-line dialer,
the K-1900-9 will dial a single pre-programmed number when any off-hook condition
is detected on the "PHONE" port. The K-1900-9 can also be used as an alarm dialer,
initializing speed dialing from a contact closure.
