Retrofitting older panel phones to a ve-5x10

Advertisement

Add the VE-5x10 Surface Mount Box
to Older K-1500-7's and K-1900-7's
Some older K-1500-7 and K-1900-7
panel phones do not have the (4)
countersunk mounting holes required
to mount to the VE-5x10, if your K-
1500-7 or K-1900-7 does not have
these mounting holes at the corners,
you will need to drill (4) .187" diameter
holes, countersunk 82 x .285" to the

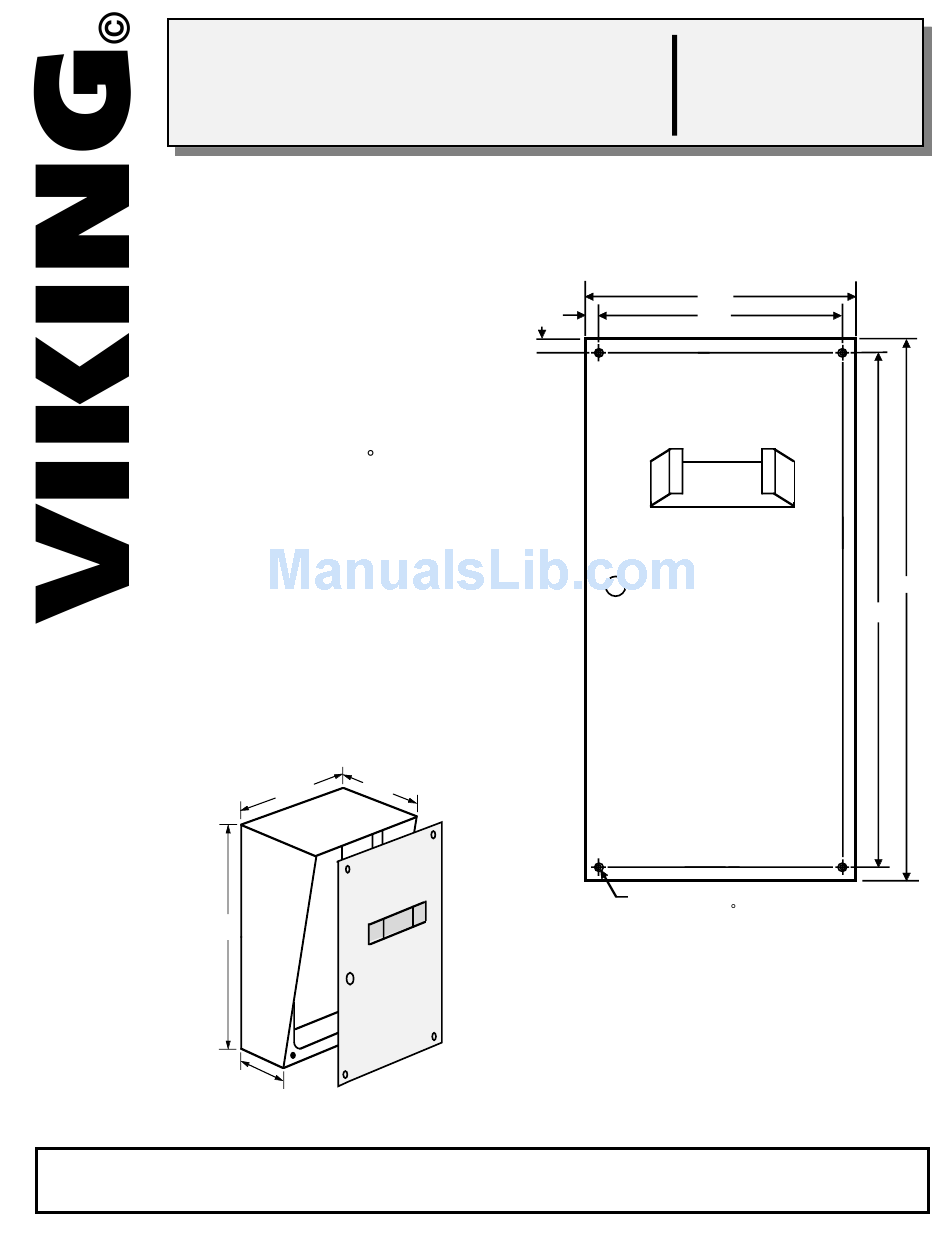

specifications in Diagram 1 (right).
Mount the VE-5x10 to the surface of
the wall and screw the K-1500-7 or K-
1900-7 with the (4) screws provided.
Note:
stainless steel screws and nuts to fill
the vacant double gang box holes (not
included).

Diagram 2

VE-5x10
10.14
Product Support Line...(715) 386-8666
Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking
Electronics, its affiliates and/or subsidiaries assume no responsibility for errors and/or omissions contained in this information. Revisions of
this document or new editions of it may be issued to incorporate such changes.
Fax Back Doc # 810
Telecommunication Peripheral Products
Application Note
You will need additional
3.69
5.22
2.69
O.25
O.25
K-1500-7 or
K-1900-7
Fax Back Line...(715) 386-4345
Printed in the U.S.A.
Retrofitting Older Panel
Phones to a VE-5x10
October 12, 1998
5.OO
4.5O

Diagram 1

.187 Diameter
Countersunk 82 x .285 Diameter
1O.OO
9.5O
Rev 3
