DESIGNED, MANUFACTURED AND SUPPORTED IN THE USA
VIKING
SECURITY & COMMUNICATION

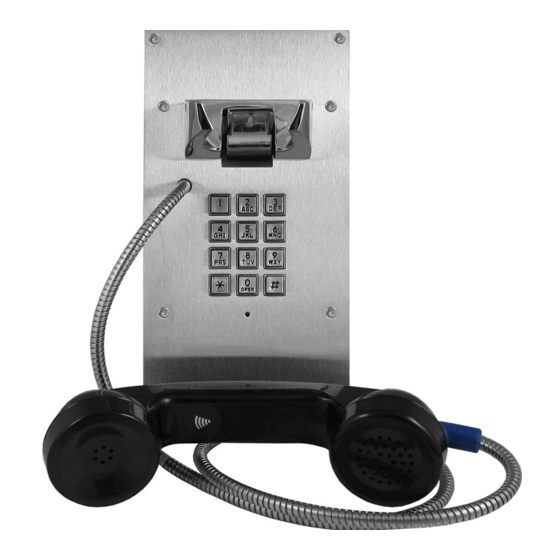

Vandal Resistant Hot-Line Panel Phone with Keypad
The K-1900-8 Series panel phone can either auto-dial a phone
number each time the handset is lifted, be used as a multi-number
auto-dialer, or be used as a standard (dumb) phone. The unit will
touch tone or pulse dial and will not auto-dial on incoming calls.
The K-1900-8 Series housing consists of a heavy gauge stainless
steel panel, metal touch tone keypad, armored cable, heavy duty
handset, and all metal cradle. The K-1900-8 Series can be easily
touch tone programmed at the shop or installation site. All
Programming is stored in non-volatile memory.
The K-1900-812L and K-1900-812L-EWP feature a 12" long
armored cable with an internal stainless steel lanyard for additional
cable strength.
The K-1900-8-EWP and K-1900-812L-EWP share all the features
of the K-1900-8 and K-1900-812L in addition to Enhanced Weather
Protection (EWP) for outdoor installations where the unit is exposed
to precipitation or condensation. EWP products are designed to
meet IP66 standards and may feature foam rubber gaskets, sealed
connections, gel-filled butt connectors, as well as potted circuit
boards with internally sealed, field-adjustable trim pots and DIP
switches for easy on-site programming. For more information on
EWP, see DOD 859.
Note: If a ringer is required, use an external unit such as the Viking
SR-1 (DOD 477), or LPR-1 (DOD 550).

Features

• Vandal Resistant Features: 12 gauge (0.105" thick) 316
stainless steel panel with permanent laser etched graphics,
armored cable, metal cradle, heavy-duty metal keypad, and hex
drive mounting screws
• Weather Resistant Features: Marine grade 316 stainless
steel faceplate and screws, and internally sealed keypad
• Auto dials one programmable speed dial number (up to 32 digits)
• Multi-number dialer mode adds 5 speed dial numbers (up to 16 digits)
• Touch tone or pulse dialing
• Non-volatile memory (no batteries required)
• Operates on analog PABX and key system extensions or analog
Centrex and CO lines
• Programmable 6 digit security code
• Touch tone programmable
• Optional Enhanced Weather Protection (EWP) available - EWP products
are designed to meet IP66 Ingress Protection Rating, see DOD 859
• 12" armored handset cable on K-1900-812L and K-1900-812L-EWP
• 36" armored handset cable on K-1900-8
• 54" armored handset cable on K-1900-8-EWP
• Programmable pre-dial pause
• Blocks fraudulent calls from hand held pocket dialers
• Limited toll Restriction in dumb phone mode
• Hearing aid compatible amplified handset with sealed push
button volume control
• Programmable default volume level
• Programmable volume control disable
• Flush mount with included steel rough-in box, or use an optional
VE-5x10 surface mount box (not included, see DOD 424)
www.VikingElectronics.com
Information: 715-386-8861
PRODUCT
MANUAL
K-1900-812L-EWP
with 12" armored
cable and lanyard
• Catalog sales
• Kiosks
• Courtesy and customer service phones
• Automated tellers (ATM's)
• Hot-line reservation phones
• Security and emergency phones
• Replaces leased ringdown circuits
• Gate/entrance communication in noisy locations
(diesel trucks, factory noise, etc.)
Power: Telephone line powered (20V DC/18mA minimum)
Dimensions for Standard Model
Phone : 5.0" x 10.0" x 4.54" (127mm x 254mm x 113mm)
With rough-in box: 5.0" x 10.0" x 5.53" (127mm x 254mm x 141mm)
Dimensions for EWP Model
Phone: 5.0" x 10.0" x 4.93" (127mm x 254mm x 125mm)
With rough-in box: 5.0" x 10.0" x 5.61" (127mm x 254mm x 143mm)
Shipping Weight: 5 lbs (2.3 kg )
Operating Temperature: -30°F to 140°F (-34°C to 60°C)
Humidity - Standard Model: 5% to 95% non-condensing
Humidity - EWP Model : Up to 100% condensing
K-1900-812L(EWP) Handset Cable Length: 12" to 12.7" (31 cm to 33 cm)
K-1900-8 Handset Cable Length: 34" to 37" (86 cm to 94 cm)
K-1900-8-EWP Handset Cable Length: 52" to 57" (132 cm to 145 cm)
Touch Tone Dial Speed: Normal = 120ms on/off, Fast = 50ms on/off
Pulse Dial Speed: Normal = 10 pps, Fast = 20 pps
Connections: (2) gel-filled butt connectors
K-1900-8 Series
Hot-Line Panel Phone

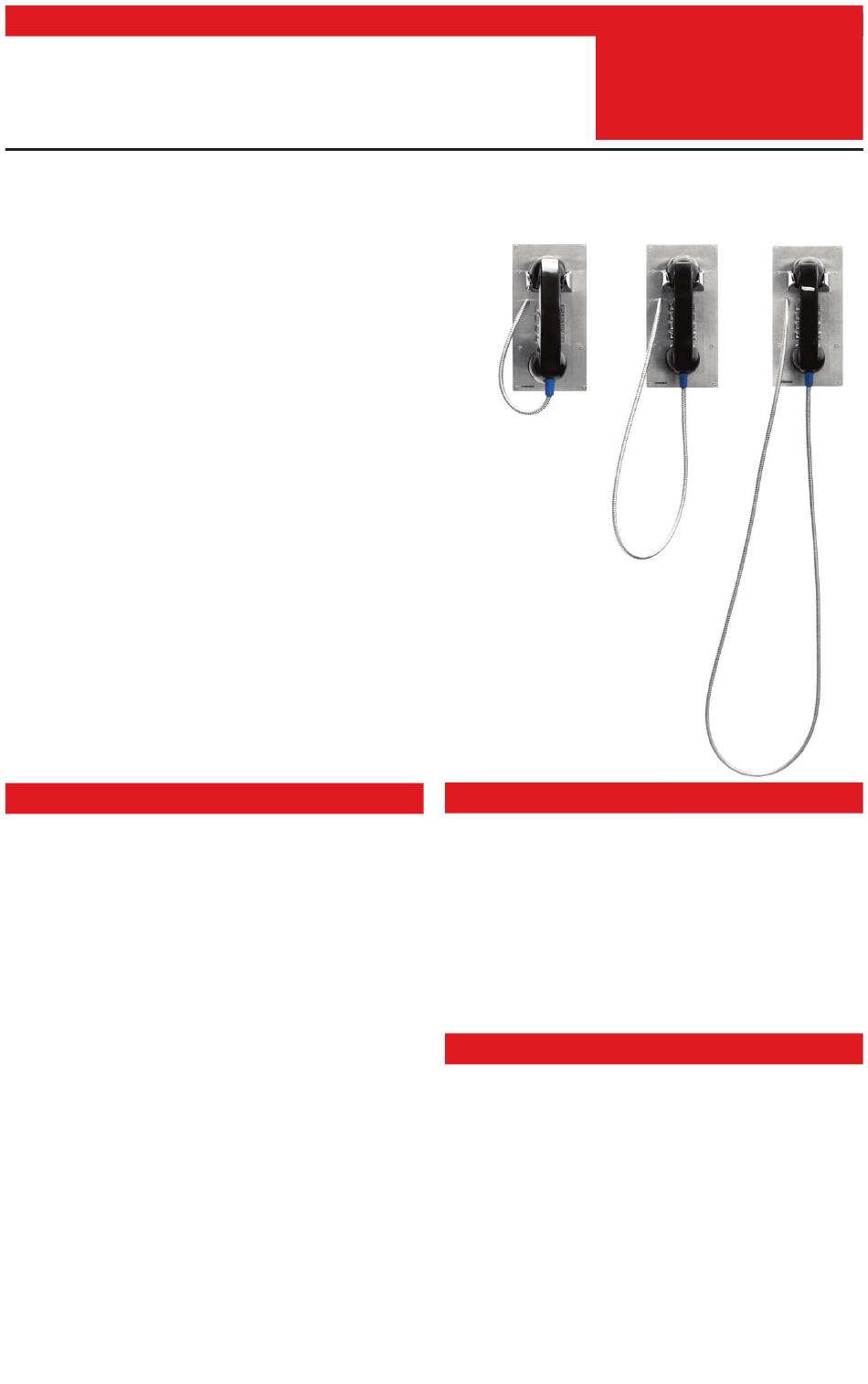

K-1900-812L /
K-1900-8
with 36"
armored cable
K-1900-8-EWP
with 54"
armored cable

Applications

Specifications

with Keypad
June 4, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K-1900-812L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Viking K-1900-812L

  • Page 1 For more information on K-1900-8-EWP EWP, see DOD 859. with 54” Note: If a ringer is required, use an external unit such as the Viking armored cable SR-1 (DOD 477), or LPR-1 (DOD 550). Features Applications •...
  • Page 2 Installation To install the K-1900-8 panel phone, attach the panel using the provided screws or use the optional VE-5x10 weather resistant surface mount box. Note: Four extra screws and nuts are provided to fill the unused mounting holes. The optional VE-5x10 surface mount box (shown below) is designed to be surface mounted to a wall, post, single gang box or a VE-GNP or VE-GNP-2 goose neck pedestal (shown right).
  • Page 3 C. Programming Features Quick Reference Description Enter Digits + Location Speed dial number ..........................1-32 digit (0-9) + #00 Multi-number auto-dialer numbers 1-5 (DIP switch 2 must be ON) ............1-32 digit (0-9) + #01-#05 Q (anywhere in the speed dial number) ....................QQ # (anywhere in the speed dial number) ....................
  • Page 4 TWO YEAR LIMITED WARRANTY Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of two years from the date of purchase from any authorized Viking distributor. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016.
