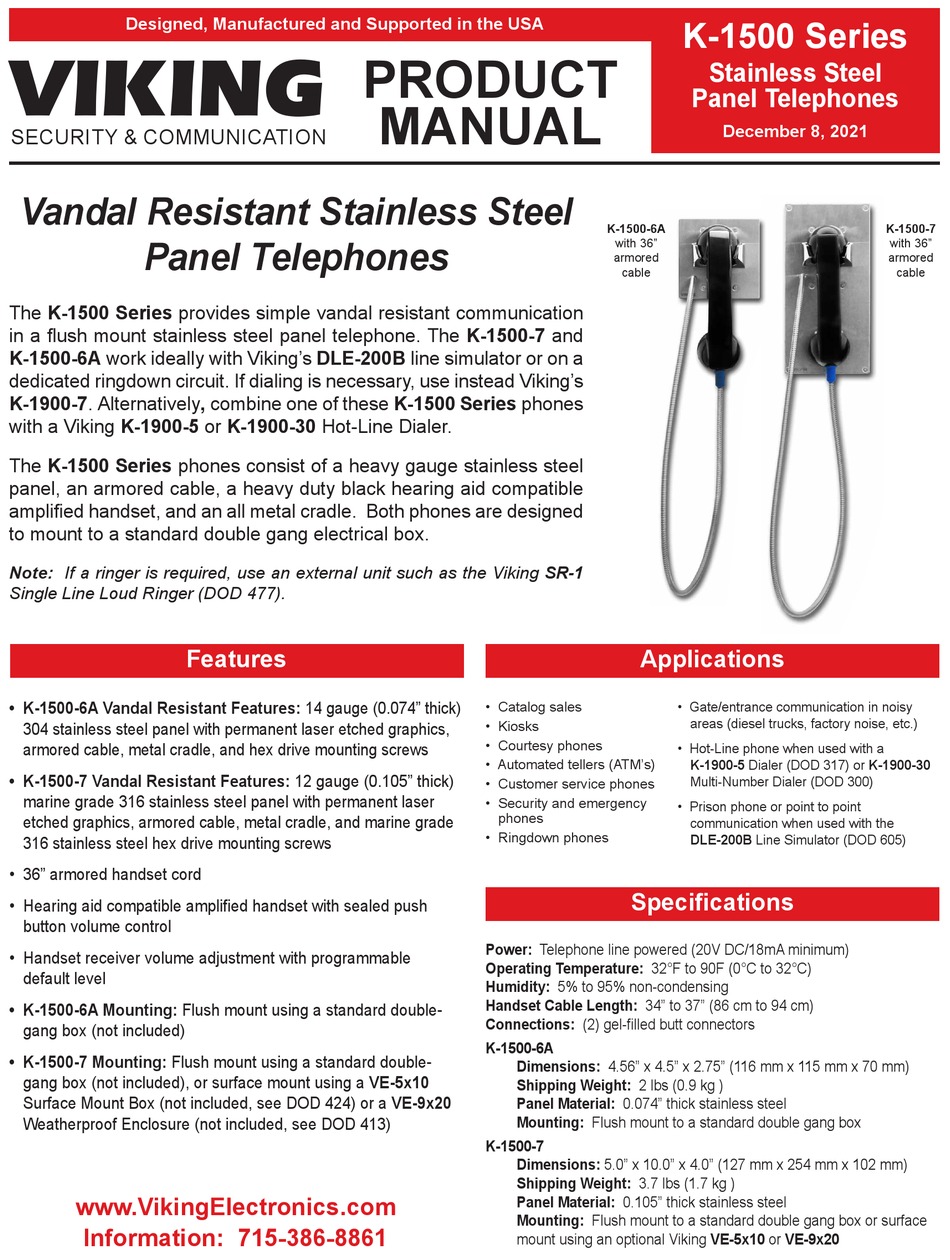

Viking K-1500 Series Product Manual

Designed, Manufactured and Supported in the USA
VIKING
SECURITY & COMMUNICATION
Vandal Resistant Stainless Steel
Panel Telephones
The K-1500 Series provides simple vandal resistant communication
in a flush mount stainless steel panel telephone. The K-1500-7 and
K-1500-6A work ideally with Viking's DLE-200B line simulator or on a
dedicated ringdown circuit. If dialing is necessary, use instead Viking's
K-1900-7. Alternatively, combine one of these K-1500 Series phones
with a Viking K-1900-5 or K-1900-30 Hot-Line Dialer.
The K-1500 Series phones consist of a heavy gauge stainless steel
panel, an armored cable, a heavy duty black hearing aid compatible
amplified handset, and an all metal cradle. Both phones are designed
to mount to a standard double gang electrical box.
Note: If a ringer is required, use an external unit such as the Viking SR-1
Single Line Loud Ringer (DOD 477).
Features
• K-1500-6A Vandal Resistant Features: 14 gauge (0.074" thick)
304 stainless steel panel with permanent laser etched graphics,
armored cable, metal cradle, and hex drive mounting screws
• K-1500-7 Vandal Resistant Features: 12 gauge (0.105" thick)
marine grade 316 stainless steel panel with permanent laser
etched graphics, armored cable, metal cradle, and marine grade
316 stainless steel hex drive mounting screws
• 36" armored handset cord
• Hearing aid compatible amplified handset with sealed push
button volume control
• Handset receiver volume adjustment with programmable
default level
• K-1500-6A Mounting: Flush mount using a standard double-
gang box (not included)
• K-1500-7 Mounting: Flush mount using a standard double-
gang box (not included), or surface mount using a VE-5x10
Surface Mount Box (not included, see DOD 424) or a VE-9x20
Weatherproof Enclosure (not included, see DOD 413)
www.VikingElectronics.com
Information: 715-386-8861
PRODUCT
MANUAL
• Catalog sales
• Kiosks
• Courtesy phones
• Automated tellers (ATM's)
• Customer service phones
• Security and emergency
phones
• Ringdown phones
Power: Telephone line powered (20V DC/18mA minimum)
Operating Temperature: 32°F to 90F (0°C to 32°C)
Humidity: 5% to 95% non-condensing
Handset Cable Length: 34" to 37" (86 cm to 94 cm)
Connections: (2) gel-filled butt connectors
K-1500-6A
Dimensions: 4.56" x 4.5" x 2.75" (116 mm x 115 mm x 70 mm)
Shipping Weight: 2 lbs (0.9 kg )
Panel Material: 0.074" thick stainless steel
Mounting: Flush mount to a standard double gang box
K-1500-7
Dimensions: 5.0" x 10.0" x 4.0" (127 mm x 254 mm x 102 mm)
Shipping Weight: 3.7 lbs (1.7 kg )
Panel Material: 0.105" thick stainless steel
Mounting: Flush mount to a standard double gang box or surface
mount using an optional Viking VE-5x10 or VE-9x20
K-1500 Series
Stainless Steel
Panel Telephones
December 8, 2021

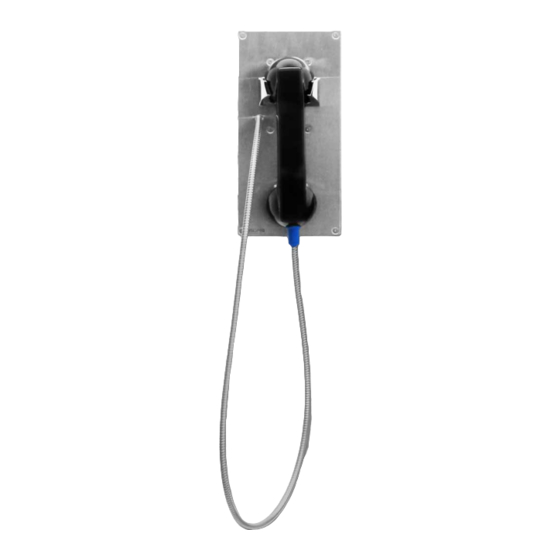

K-1500-6A
with 36"
armored
cable
Applications
• Gate/entrance communication in noisy
areas (diesel trucks, factory noise, etc.)
• Hot-Line phone when used with a
K-1900-5 Dialer (DOD 317) or K-1900-30
Multi-Number Dialer (DOD 300)
• Prison phone or point to point
communication when used with the
DLE-200B Line Simulator (DOD 605)
Specifications
K-1500-7
with 36"
armored
cable
