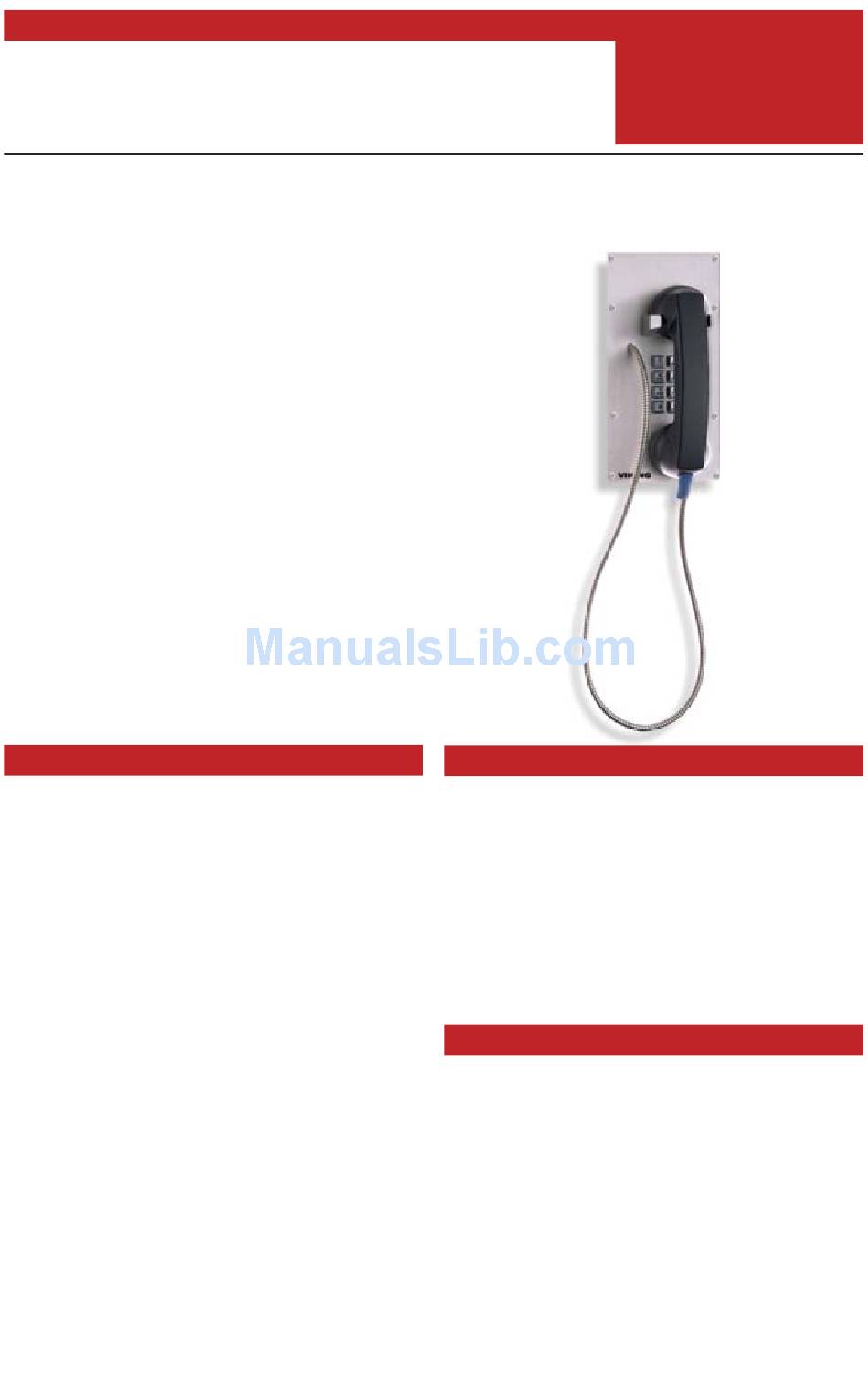

Viking K-1900-8/EWP Product Manual

Designed, Manufactured and Supported in the USA
VIKING
C O M M U N I C A T I O N & S E C U R I T Y S O L U T I O N S
Vandal Resistant Hot-Line Phone with Keypad
The K-1900-8 panel phone can either auto-dial a phone
number each time the handset is lifted, be used as a multi-
number auto-dialer, or be used as a standard (dumb)
phone. The unit will touch tone or pulse dial and will not
auto-dial on incoming calls.

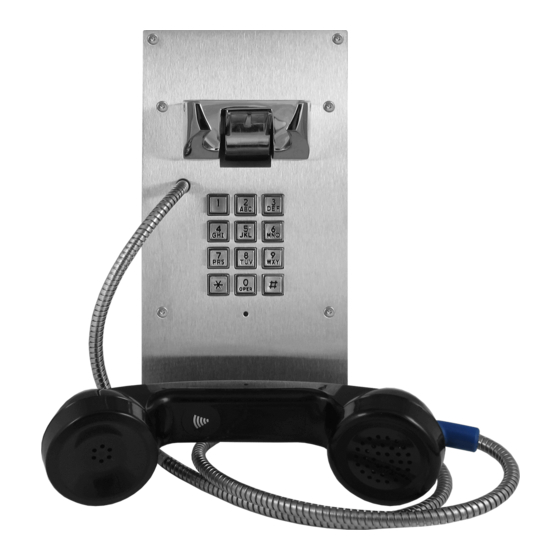

The K-1900-8 housing consists of a heavy gauge stain-
less steel panel, a metal touch tone keypad, an armored
cable, a heavy duty handset, and an all metal cradle. The
K-1900-8 can be easily Touch Tone programmed at the
shop or installation site. All programming is stored in non-
volatile memory.
The K-1900-8-EWP shares all of the features of the K-
1900-8 in addition to Enhanced Weather Protection
(EWP) for outdoor installations where the unit is exposed
to precipitation or condensation. EWP products feature
foam rubber gaskets and boots, sealed connections, gel-
filled butt connectors, as well as urethane or thermal plas-
tic potted circuit boards with internally sealed,
field-adjustable trim pots and DIP switches for easy on-
site programming. For more information, see DOD# 859.
Note: If a ringer is required, use an external unit such as
the Viking SR-1 (DOD# 477) or LPR-1 (DOD# 550).
Features
• Auto dials 1 (up to 32 digits) programmable speed dial
number
• Multi-number dialer mode adds 5 (up to 16 digits)
speed dial numbers
• Touch tone or pulse dialing
• Non-volatile memory (no batteries required)
• Operates on analog PABX and key system extensions
or analog Centrex and C.O. lines
• Programmable 6 digit security code
• Touch tone programmable
• Vandal Resistant Features: 0.105" thick 316 stain-
less steel panel with permanent laser etched graph-
ics, armored cable, metal cradle, heavy duty metal
keypad and hex drive mounting screws
• Weather Resistant Features: Marine grade 316
stainless steel faceplate and screws, sealed keypad,
weather resistant powder paint on optional VE-5x10
(DOD# 424).
• K-1900-8-EWP is designed to meet IP66 Ingress Pro-
tection Rating (see DOD# 859)
• 54" armored handset cord on K-1900-8-EWP
• Programmable pre-dial pause
• Blocks fraudulent calls from hand held pocket dialers
• Limited toll restriction in dumb phone mode
• Hearing aid compatible amplified handset with sealed
push button volume control
• Programmable Default Volume Level
• Programmable Volume Control Disable
PRODUCT MANUAL
Applications
• Catalog sales
• Kiosks
• Courtesy and customer service phones
• Automated tellers (ATM's)
• Hot-line reservation phones
• Security and emergency phones
• Replaces leased ringdown circuits
• Gate/entrance communication in noisy locations
(diesel trucks, factory noise, etc.)
www.vikingelectronics.com
Information: (715) 386-8861
Specifications
Power: Telephone line powered (20V DC/18mA min)
Dimensions: Overall - 5" x 10" x 4" (127mm x 254mm x
102mm)
Shipping Weight: 4 lbs. (1.8 kg )
Operating Temperature: -30°F to 140°F (-34°C to 60°C)
Humidity: Standard - 5% to 95% non-condensing
EWP - Up to 100% condensing
Panel Material: .105 inch thick stainless steel
Handset Cable Length:
Standard K-1900-7: 34" to 37" (86cm to 94cm)
K-1900-7-EWP: 52" to 57" (132cm to 145cm)
Mounting: Flush mount or surface mount with optional
VE-5x10 (DOD# 424)
Dial Speed: Touch Tone - Normal = 120ms on/off, Fast =
50ms on/off; Pulse - Normal = 10 pps, Fast = 20 pps
Connections: (2) gel-filled butt connectors
K-1900-8/EWP
Hot-Line Panel Phone
with Keypad
December 21, 2016
