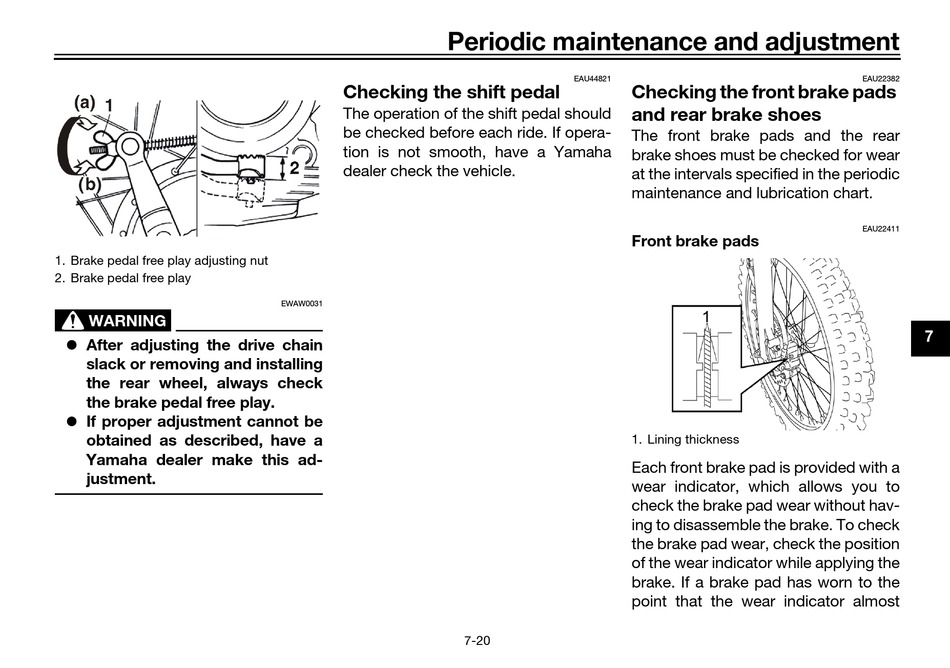

1. Brake pedal free play adjusting nut
2. Brake pedal free play
WARNING
After adjusting the drive chain
slack or removing and installing
the rear wheel, always check
the brake pedal free play.
If proper adjustment cannot be
obtained as described, have a
Yamaha dealer make this ad-
justment.
Periodic maintenance and adjustment
Checking the shift pedal
The operation of the shift pedal should
be checked before each ride. If opera-
tion is not smooth, have a Yamaha
dealer check the vehicle.
EWAW0031
EAU44821
Checking the front brake pads
and rear brake shoes
The front brake pads and the rear
brake shoes must be checked for wear
at the intervals specified in the periodic
maintenance and lubrication chart.
Front brake pads
1. Lining thickness
Each front brake pad is provided with a
wear indicator, which allows you to
check the brake pad wear without hav-
ing to disassemble the brake. To check
the brake pad wear, check the position
of the wear indicator while applying the
brake. If a brake pad has worn to the
point that the wear indicator almost
7-20
