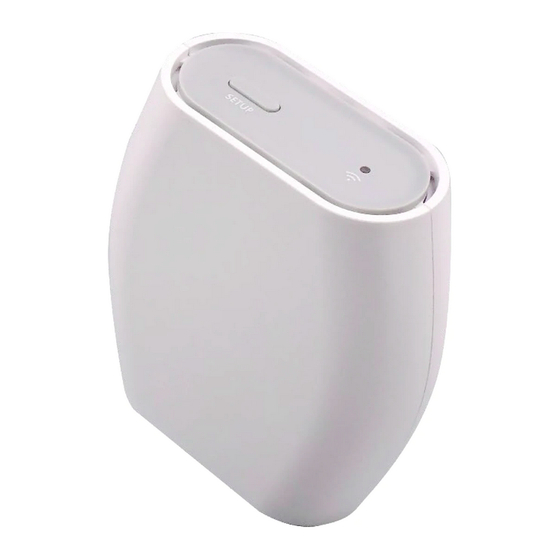

Browan MiniHub Pro Configuration Manual

Hide thumbs Also See for MiniHub Pro:
Table of Contents

Advertisement

Quick Links

Download this manual
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: +886-3-6006899
Fax: +886-3-5972970
Document Number
BQW_02_0026.001
MiniHub Pro
GUI Configuration Guide
Copyright 2020 Browan Co., Ltd.
0

Advertisement

Table of Contents
loading

Related Manuals for Browan MiniHub Pro

Summary of Contents for Browan MiniHub Pro

  • Page 1 No.15-1, Zhonghua Rd., Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, R.O.C. 30352 Tel: +886-3-6006899 Fax: +886-3-5972970 Document Number BQW_02_0026.001 MiniHub Pro GUI Configuration Guide Copyright 2020 Browan Co., Ltd.

  • Page 2: Table Of Contents

    Fax: +886-3-5972970 Index Index Release History About this Document 1. WiFi Connect to MiniHub Pro 2. Enable Browan's OTA Server Daily Checking 3. LoRa Configuration 3.1 Packet Forwarder Mode Configuration 3.2 LoRa Basics™ Station Mode Configuration 4. MiniHub Pro WiFi Configuration...

  • Page 3: Release History

    Author Comment Joey 2020/09/08 ● Draft release. Jason ● Update some screenshots. Joey ● Add chapter "2. Enable Browan's Jason OTA Server Daily Checking". 2020/12/08 Crux ● Add the LED behavior table. Demy ● Browan 1st release, DOC # BQW_02_0026.001...

  • Page 4: About This Document

    Station. This starting guide will show you how to configure the MiniHub Pro. 1. WiFi Connect to MiniHub Pro 1.1 Power on the MiniHub Pro and connect to WiFi SSID. The SSID format should be MiniHubPro-XXXXXX. You can find the WiFi information from the device label.
  • Page 5 Tel: +886-3-6006899 Fax: +886-3-5972970 1.2 When connected to MiniHubPro-XXXXXX AP, it will open the setup page automatically. If the web page doesn't open automatically, please use Firefox or Chrome to open ​ " 192.168.4.1" ​ manually. Copyright 2020 Browan Co., Ltd.

  • Page 6: Enable Browan's Ota Server Daily Checking

    Hukou, Hsinchu, Taiwan, R.O.C. 30352 Tel: +886-3-6006899 Fax: +886-3-5972970 2. Enable Browan's OTA Server Daily Checking 2.1 Click the "Configure OTA Mode" to open the setting page. 2.2 The default setting is disabled. Please switch to "Enable" and click the "Save"...

  • Page 7: Lora Configuration

    "LoRa Packet Forwarder"​ 3.1.3 LoRa Packet Forwarder Mode Here you can set up the "Gateway Info" / "Frequency" / "LBT Settings". We use the “The Things Network” public server in this guide. REF: https://www.thethingsnetwork.org/docs/gateways/packet-forwarder/semtech-udp.ht ml#router-configuration Copyright 2020 Browan Co., Ltd.
  • Page 8 Fax: +886-3-5972970 3.1.4 Gateway Info You could set up the LNS address and the uplink/downlink port here. Please use the "Gateway ID" info to register the gateway on the TheThingNetwork server. REF: ​ h ttps://www.thethingsnetwork.org/docs/gateways/registration.html Copyright 2020 Browan Co., Ltd.
  • Page 9 3.1.5 Frequency The RX frequency is calculated with the radio central frequency and the offset value. Each channel could be enabled/disabled individually. And please do not make the offset value to be over the range. Copyright 2020 Browan Co., Ltd.
  • Page 10 No.15-1, Zhonghua Rd., Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, R.O.C. 30352 Tel: +886-3-6006899 Fax: +886-3-5972970 You could find the TTN Frequency Plan here: REF: https://www.thethingsnetwork.org/docs/lorawan/frequency-plans.html#us902-928 Copyright 2020 Browan Co., Ltd.
  • Page 11 LBT channels were calculated from the RX frequency. 3.1.7 Please click the "Save" button to save these configurations. When everything is OK, the web will show the "Success!" message. Click the "OK" button to redirect to the WiFi configuration page. Copyright 2020 Browan Co., Ltd.

  • Page 12: Lora Basics™ Station Mode Configuration

    3.2 LoRa Basics™ Station Mode Configuration LoRa Basics™ Station supports CUPS mode and LNS mode. 3.2.1 Click the "Configure LoRa Setting" to open the setting page. 3.2.2 On the "Configure LoRa Setting" page, please select "LoRa Basics™ Station"​ Copyright 2020 Browan Co., Ltd.
  • Page 13 No.15-1, Zhonghua Rd., Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, R.O.C. 30352 Tel: +886-3-6006899 Fax: +886-3-5972970 3.2.3 Please use the "Gateway EUI" info to register the gateway on the network server. Copyright 2020 Browan Co., Ltd.
  • Page 14 Here you can input the LNS URI and upload the credentials. Gateway uses the uri and credentials(if needed) to communicate with LNS. Please make sure the CUPS URI field is emptied and all of the CUPS credential checkboxes are unchecked before saving the configurations. Copyright 2020 Browan Co., Ltd.
  • Page 15 Tel: +886-3-6006899 Fax: +886-3-5972970 3.2.6 Please click the "Save" button to save these configurations. When everything is OK, the web will show the "Success!" message. Click the "OK" button to redirect to the WiFi configuration page. Copyright 2020 Browan Co., Ltd.

  • Page 16: Minihub Pro Wifi Configuration

    Hukou, Hsinchu, Taiwan, R.O.C. 30352 Tel: +886-3-6006899 Fax: +886-3-5972970 4. MiniHub Pro WiFi Configuration 4.1 Choose one of the WiFi APs which you prefer to connect to the internet. You also can add SSID manually by yourself on this page.
  • Page 17 Orange Blinking 1/4 sec WiFi station is connecting to the root AP. WiFi station connected, establishing the Green Blinking 1/4 sec connection to CUPS & LNS. Green Solid WiFi station connected, ready to receive LoRa. Copyright 2020 Browan Co., Ltd.

  • Page 18: Troubleshooting

    No.15-1, Zhonghua Rd., Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, R.O.C. 30352 Tel: +886-3-6006899 Fax: +886-3-5972970 Troubleshooting 1. Data Loss while sending the configuration to the MiniHub Pro. Solution: Please reconfigure again. 2. GUI always shows “Please wait” and the Web Service status is Disconnected. Solution: Please check the WiFi connection first.
  • Page 19 3. GUI always shows “Please wait” and the Web Service status is Connected. Solution: If the WiFi is connected but still could not get the response, suggest to power off/on and reconfigure the MiniHub Pro again. Copyright 2020 Browan Co., Ltd.
  • Page 20 Solution: Please check if the AP Password is correct or not. And reconfigure again. 5. MiniHub Pro is WiFi Station mode and you want to reconfigure it. Solution: Hold the "RESET" button for over 5 seconds. MiniHub Pro will restore to default.

  • Page 21: Appendix

    No.15-1, Zhonghua Rd., Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, R.O.C. 30352 Tel: +886-3-6006899 Fax: +886-3-5972970 Appendix A. Register Gateway(​ P acket Forwarder​ ) on TheThingNetwork Public Network. A-1 Gateway Console Copyright 2020 Browan Co., Ltd.
  • Page 22 No.15-1, Zhonghua Rd., Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, R.O.C. 30352 Tel: +886-3-6006899 Fax: +886-3-5972970 A-2 MiniHub Pro connected to the TTN server. Copyright 2020 Browan Co., Ltd.
  • Page 23 No.15-1, Zhonghua Rd., Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, R.O.C. 30352 Tel: +886-3-6006899 Fax: +886-3-5972970 B. Register Gateway(​ B asic Station​ ) on The Things Industries Network. B-1 Gateway Console Copyright 2020 Browan Co., Ltd.
  • Page 24 No.15-1, Zhonghua Rd., Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, R.O.C. 30352 Tel: +886-3-6006899 Fax: +886-3-5972970 B-2 MiniHub Pro connected to the TTI server. Copyright 2020 Browan Co., Ltd.
