Browan WAPS-232N LW Quick Start Manual

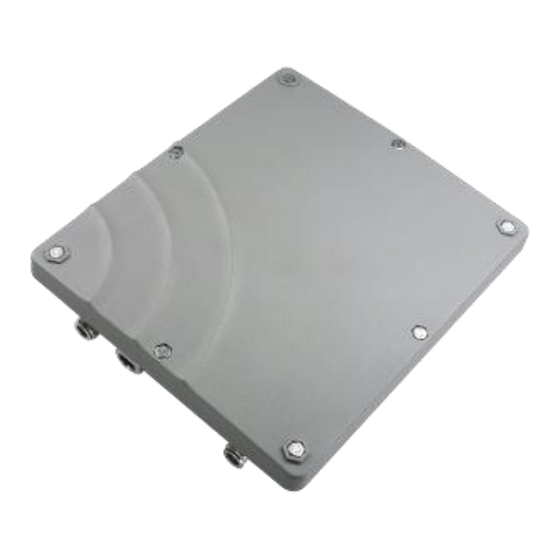

WAPS-232N_LW Outdoor Micro Gateway
Quick Start Guide
Introduction
Thank you for purchasing the BROWAN LoRaWAN Outdoor Gateway.
This quick start guide is to describe the product and help you install it.
Package Contents
Overview
Note:
- All antenna ports are N-type female. Do not connect the antenna to the wrong port.
- ANT4 port is provided only for 16CH SKU.
ANT2: 3G/4G Antenna
Power over Ethernet
More Information
Scan the QR code on the corner for the user guide and installation guide.
Complementary information can be found on our online document:
https://www.browan.com/product/outdoor-micro-gateway/detail
Notice
- Read the Installation Guide before starting installation.
- Do not remove the product label.
- The device must not be dismantled or modified in any way.
Regulatory
WAPS-232N_LW is in compliance with the essential requirements
of the CE, FCC, and RoHS.
Contact Us
Website: https://www.browan.com
E-mail: sales@browan.com
2023 © Browan Communications Inc., All Rights Reserved. This document is for planning purposes only and is not intended to
modify or supplement any specifications or warranties relating to products of Browan Communications. Browan may make
changes to specifications and descriptions at any time, without notice.
Bottom View
ANT3: LoRa 1 Antenna
ANT1: GPS Antenna
Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, 30352
NO Title
1 WAPS-232N_LW
2 RJ45 waterproof casing
3 MOUNT KIT ASS'Y (on box)
4 POE ADAPTER
5 POWER CORD
6 RF CABLE (3000 mm)
7 3G/4G ANTENNA (optional, only for LTE SKU)
8 GPS ANTENNA
Our content is excluded LoRa antenna. If needs, please contact us.
Top View
3G/4G Mini SIM card
User Guide
Tel: +886-3-6006899
Fax: +886-3-5972970
Q'TY
1
1
1
1
1
1
1
1
ANT4: LoRa 2 Antenna
Installation Guide
