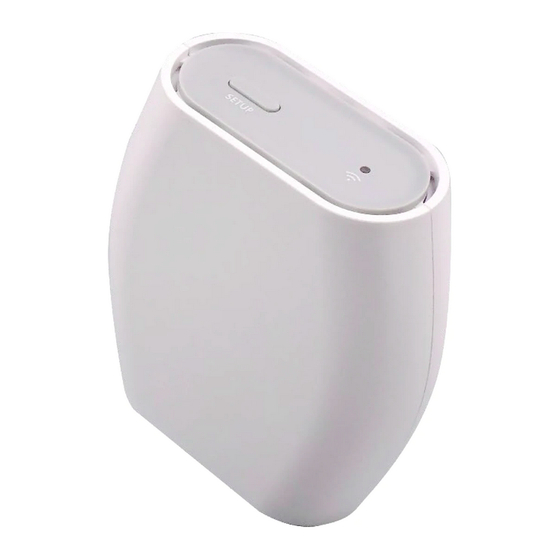

Browan MiniHub Pro Quick Installation Manual

With basic station & aws iot core for lorawan
Hide thumbs Also See for MiniHub Pro:
Table of Contents

Advertisement

Quick Links

Download this manual
Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: +886-3-6006899
Fax: +886-3-5972970
ˊ
Document Number
BQW_02_0020.003
MiniHub Pro
Quick Installation Guide
-with Basic Station & AWS IoT Core for LoRaWAN
Version 1.11
Copyright 2020 Browan Co., Ltd.
Browan Highly Confidential – Controlled Access
2020 Ⓒ Browan Communications Inc., All Rights Reserved. This document is for planning purposes only, and is not intended to modify or supplement any
specifications or warranties relating to products of Browan Communications. Browan may make changes to specifications and descriptions at any time, without
notice.
