1. Digital Matter Support
2. Solution home
3. Cellular
4. Dart & Dart2

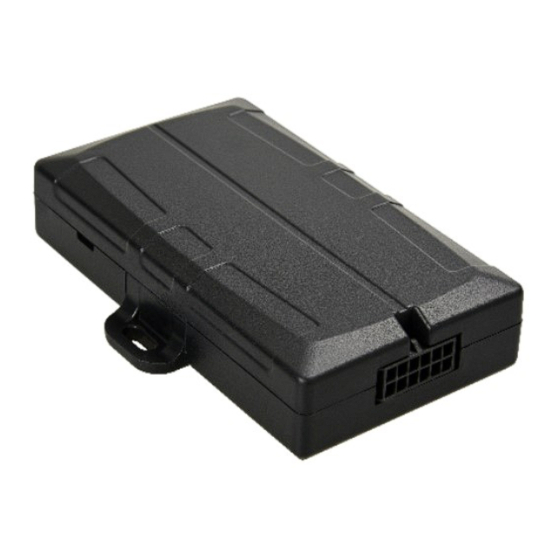

The Dart 2 is the new version of the Dart and is also a compact, economical and feature rich 2G or 4G tracking device.
It is designed to provide extremely cost effective tracking with all the quality and support of a Digital Matter product. It
includes the latest GPS and cellular technology to give excellent performance at an entry level price.
See the
Dart2 product page
(https://www.digitalmatter.com)
Datasheet & High Resolution Images
Dart 2 Downloads
View the tech-specs
(https://www.digitalmatter.com/devices/dart2/tech-specs/)
(https://www.dropbox.com/sh/neqb9zz4x678r0n/AABEpapZ0897E4_3NLwNBJq9a?dl=0)
This article will help you get up and running to test the Dart 2.
In the Box
You'll get a compact box containing the Dart 2 and a 12 wire harness. There are also OBDII and Cigarette Lighter harness
options available for quick and easy (or temporary) installs.
(https://www.digitalmatter.com/devices/dart2/)
for more specifications.
Getting Started Guide
on www.digitalmatter.com
and
high resolution device images
for the Dart2
Dart + Dart2
1/6
Advertisement
Table of Contents
Related Manuals for Digital Matter Dart
Summary of Contents for Digital Matter Dart
- Page 1 4. Dart & Dart2 The Dart 2 is the new version of the Dart and is also a compact, economical and feature rich 2G or 4G tracking device. It is designed to provide extremely cost effective tracking with all the quality and support of a Digital Matter product. It includes the latest GPS and cellular technology to give excellent performance at an entry level price.
- Page 2 Inserting the Sim Card The Dart 2 uses a Micro SIM card–form factor 3FF. The SIM holder is on the top of the PCB. When handling the Dart 2 be careful not to touch the GPS antenna, to minimise the risk of damaging the sensitive GPS amplifiers with static discharge.
- Page 3 (https://support.digitalmatter.com/support/solutions/articles/16000109850-4g-apn-autonet) Connect the Battery The Dart 2 comes with a 200mAh battery Leave the battery in the position it is stuck down, away from the antennas Plug the battery into the socket shown in the image, positive (red) wire closest to battery.
- Page 4 When the device goes to sleep, the LED will switch off. If the battery is too low, use the harness to provide external power. If the LED flashes but the Dart does not connect, check the SIM is in the holder correctly and check that the SIM is working.
- Page 5 (https://support.digitalmatter.com/en/support/solutions/articles/16000116084) Note The Dart, Dart2, G62 LTE & LoRaWAN and G100/G120 models all have 200mA fuses installed on the PCB for external power inputs. Digital inputs (including ignition) and switched ground outputs do not have integrated fuses, and are not specifically required by design, but may be installed to protect against external wiring faults.
- Page 6 Dart + Dart2 Default Parameter Settings The Dart 2 will operate with default settings out of the box. These can be changed using the OEM Admin interface. The defaults include: Hourly Heartbeats: the device will log a heartbeat record, connect to the server, and refresh its GPS data every 60 minutes.
