G62
Installation Guide
Revision 1.0 -20 September 2018
Need help? Go Online to our Knowledge Base
Contents
1. Introduction .................................................................................................. 2
2. In the Box ..................................................................................................... 2
3. Wiring Harness ............................................................................................. 3
Wiring Harness Diagram ......................................................................... 3
Wiring Harness Description .................................................................... 4
4. Getting Started ............................................................................................. 4
Insert the SIM ......................................................................................... 4
Insert the battery ..................................................................................... 5
Check the device has connected ............................................................ 5
4.3.1. LED Behaviour .................................................................................. 5
4.3.2. OEM Installer Page ........................................................................... 5
4.3.3. Check connection with the OEM Installer Page ................................. 6
Housing Assembly .................................................................................. 9
5. Install Location ............................................................................................. 9
6. Installation .................................................................................................. 10
Connect Power and Ignition .................................................................. 10
6.1.1. Testing ............................................................................................ 10
Driver ID - Connecting an iButton Reader ............................................ 10
Connecting Digital Inputs ...................................................................... 11
6.3.1. Testing ............................................................................................ 11
Wiring for Immobilisation....................................................................... 11
6.4.1. Wiring for Immobilisation on no Driver ID ........................................ 12
6.4.2. Wiring for Remote Immobilisation .................................................... 12
Appendix A - Wiring Diagram - Immobilisation on no Driver ID ........................ 13
Appendix B - Installer Page Details .................................................................. 14
Appendix C - Firmware and Parameter Updates .............................................. 15
G62 Installation Guide
All information provided in this document is subject to legal disclaimers
Revision 1.0 - 20 September 2018
support.digitalmatter.com
© Digital Matter 2018
Page 1 of 15
Advertisement
Table of Contents
Related Manuals for Digital Matter G62
Summary of Contents for Digital Matter G62
-
Page 1: Table Of Contents
Appendix B – Installer Page Details ..............14 Appendix C – Firmware and Parameter Updates ..........15 All information provided in this document is subject to legal disclaimers © Digital Matter 2018 G62 Installation Guide Revision 1.0 - 20 September 2018... -
Page 2: Introduction

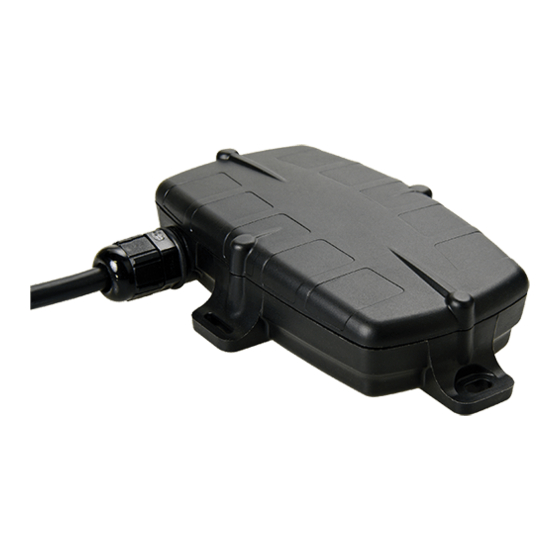

Digital Matter 1. INTRODUCTION The G62 is a compact 4G GPS tracking device with a variety of inputs and outputs to cater for the most demanding applications. The 4G modem allows for operation on both Cat-M1 and NB- IoT networks. Its rugged housing is IP67 rated to withstand the harshest environments, without sacrificing tracking and communications performance. -
Page 3: Wiring Harness
Installation Guide Revision 1.0 -20 September 2018 3. WIRING HARNESS Wiring Harness Diagram All information provided in this document is subject to legal disclaimers © Digital Matter 2018 G62 Installation Guide Revision 1.0 - 20 September 2018 Page 3 of 15... -
Page 4: Wiring Harness Description
0 – 30V Analogue Input Ground Output 4. GETTING STARTED The G62 may be damaged by electrostatic discharge if not handled correctly. Ensure adequate static precautions are taken. Consider wearing an anti-static wrist guard. Avoid touching the antennae and any of the electronic components on the PCB. Take special care not to touch the ceramic GPS antenna as static can damage the sensitive GPS circuitry. -
Page 5: Insert The Battery
If the battery is too low, use the harness to provide external power. If the LED flashes but the G62 does not connect, check the SIM is in the holder correctly and check that the SIM is working. Further troubleshooting steps are discussed further on in this document. -
Page 6: Check Connection With The Oem Installer Page
G62 Install Guide Digital Matter 4.3.3. Check connection with the OEM Installer Page Further testing of inputs/ignition etc will be required once the device is wired in, but for now we will simply test the device can connect and acquire a GPS fix before going any further. - Page 7 G62 Install Guide Digital Matter The following details will be displayed. See Appendix B – Installer Page Details for a full description of each field. All information provided in this document is subject to legal disclaimers © Digital Matter 2018 G62 Installation Guide Revision 1.0 - 20 September 2018...
- Page 8 G62 Install Guide Digital Matter Work through these steps in order, to check the device is connecting in and getting a GPS fix. If an earlier step fails, the data in later steps may not be accurate. For example, if the device is not connecting, the Battery Voltage will be based on older data, and will not be current.
-
Page 9: Housing Assembly
Although the G62 will work in these locations it is always advisable to install the G62 where it is best able to get signals from the GPS satellites, with the optimum position being a location with a clear 180-degree view of the sky. -
Page 10: Installation
The G62 can read Driver ID tags using the following reader.: iButton reader: Dallas iButton tags. Connections for the Digital Matter harness are as follows – Other iButton readers will work but may have different harness colours. iButton Harness wire colours:... -
Page 11: Connecting Digital Inputs
Installer Page. Wiring for Immobilisation The G62 has a switched ground output. This type of output, when ‘ON’ provides a ground, and when ‘OFF’ is high impedance. The switched ground output is used to control the negative side of a relay coil, which will open or close a circuit to provide a starter motor cut. -
Page 12: Wiring For Immobilisation On No Driver Id
1. Connect the relay coil positive (PIN 86), to the vehicle positive 2. Connect the relay coil negative (PIN 85), to the switched ground output (GREEN on G62) 3. Use the common (PIN 30) and Normally Open (PIN 87) contacts to control the starter motor. -
Page 13: Appendix A - Wiring Diagram - Immobilisation On No Driver Id
Revision 1.0 -20 September 2018 APPENDIX A – WIRING DIAGRAM – IMMOBILISATION ON NO DRIVER ID All information provided in this document is subject to legal disclaimers © Digital Matter 2018 G62 Installation Guide Revision 1.0 - 20 September 2018... -
Page 14: Appendix B - Installer Page Details
6. Battery Level – Internal Battery Level. Will be marked with a cross if it is too low for your device type (flat or disconnected battery) All information provided in this document is subject to legal disclaimers © Digital Matter 2018 G62 Installation Guide Revision 1.0 - 20 September 2018... -
Page 15: Appendix C - Firmware And Parameter Updates
G62 Install Guide Digital Matter 7. External Power – Voltage read at the external power input of the device. 8. Digital Inputs – Status of ignition and other digital inputs 9. Enabled – Whether the device is enabled in OEM. If it is not enabled contact your reseller 10.
