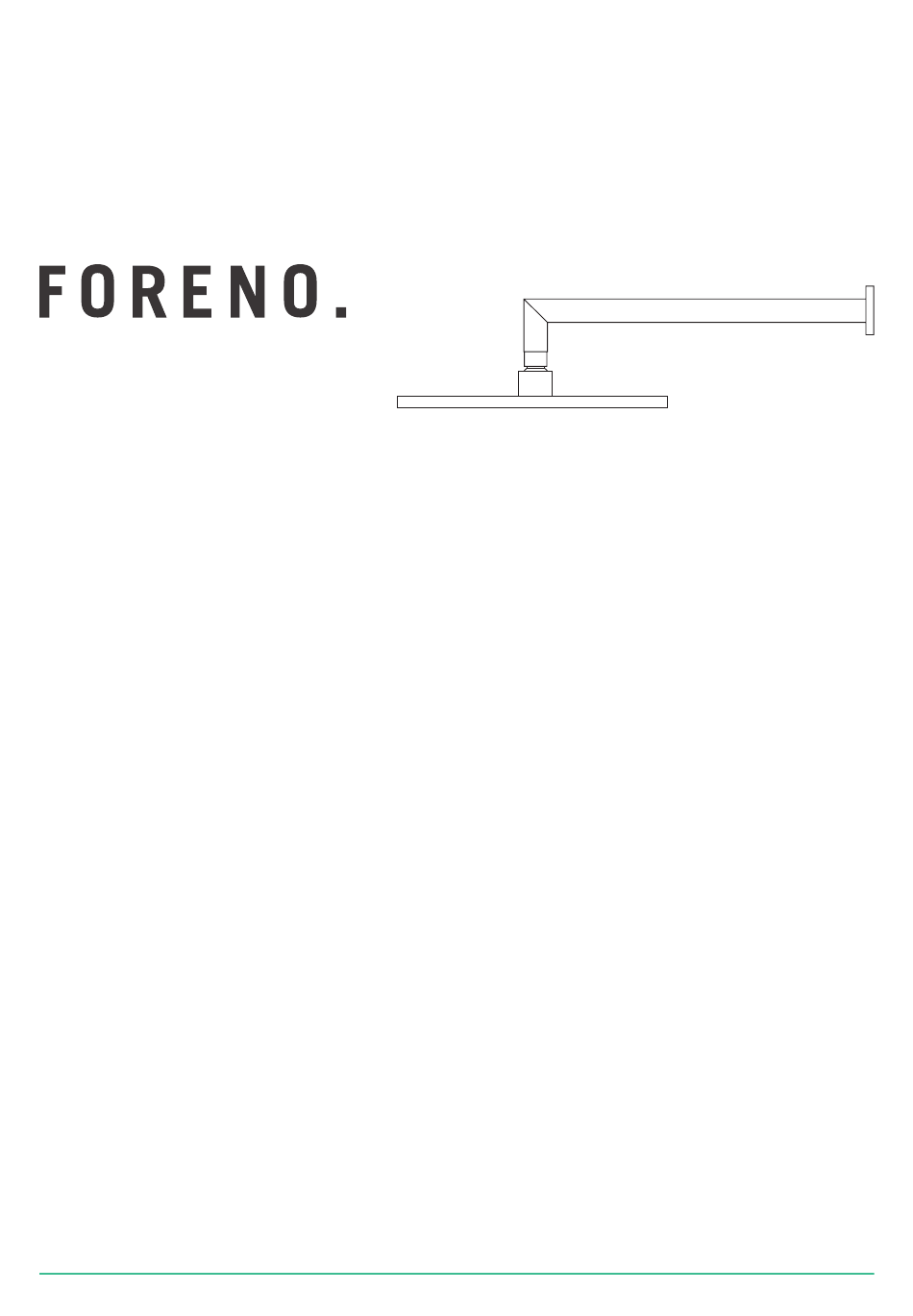

FORENO NRT81SW Quick Installation Instructions

Wall Mounted
Shower Drencher (Square)
NRT81SW
Congratulations on your purchase of this high quality product from Foreno Tapware.
Please read the following before installation and retain (along with your receipt) for future reference.

TECHNICAL SPECIFICATIONS

Suitable for Mains Pressure Only
Minimum Pressure = 150kPa
Maximum operating Pressure = 500kPa*
Maximum operating Temperature = 65 deg. Celsius
For domestic use only.

CONFIGURATION

Mains Pressure systems Install as supplied.
Unequal Low Systems This product is not suitable for this type of water pressure.
Equal Low systems

INSTALLATION

*FOR PRESSURES EXCEEDING 500kPa INSTALL A PRESSURE REDUCING VALVE. THOROUGHLY FLUSH ALL
PIPES TO ELIMINATE ANY REMAINING DIRT AND RESIDUE, AND INSTALL INLINE FILTERS. FAILURE TO DO SO
MAY VOID THE WARRANTY.
• Cut G1/2" screwed tube (nippling) to allow for a minimum 10mm inlet protrusion
• Use a liberal amount of thread tape on the inlet nipple to ensure a secure seal
• Turn on water supply
• Check for leaks
Note: This shower drencher has a flow regulator attached between the arm and the drencher head. If a greater water
flow is required, you can remove this regulator - however if removed, this product will no longer achieve a WELS rating
of 3 Stars / 7.0L/min.
FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | info@foreno.co.nz | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
