NOSHOK PT41 Series User Manual

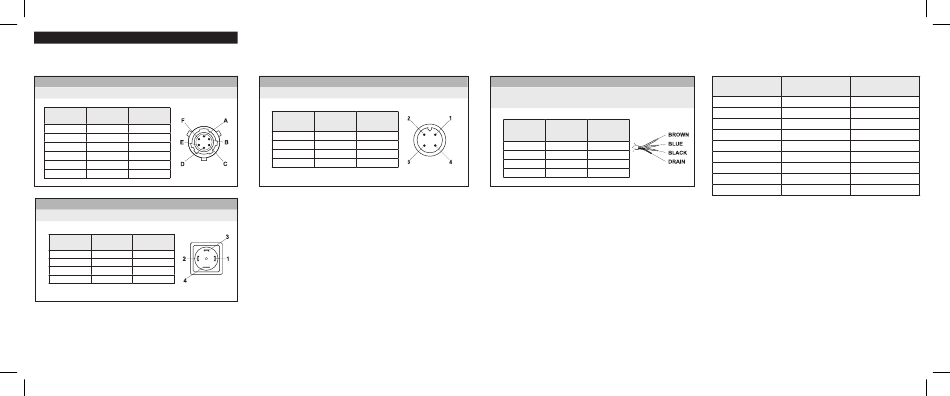

Electrical Connector Terminal Wiring and Pinout

6-Pin Bayonet
Environmental Rating IP67, Ordering Code -3
4-20 mA Voltage
Pin No.
Output Output
A V+ V+
B V- Common
C Output
D
E
F
DIN EN 175301-803 Form A
Environmental Rating IP65, Ordering Code -8, -14
4-20 mA Voltage
Pin No.
Output Output
1 V+ V+
2 V- Common
3 Output
4
M12x1 (4-Pin)
Environmental Rating IP67, Ordering Code -25
4-20 mA Voltage
Pin No.
Output Output
1 V+ V+
2
3 V- Common
4 Output
Integral Cable
Environmental Rating IP67: Ordering Code -16, -36
Environmental Rating IP65: Ordering Code -18
4-20 mA Voltage
Cable Color
Output Output
Brown V+ V+
Blue V- Common
Black Output
Drain (bare) Shield Shield
Figure 1
Pressure Range Proof Pressure Burst Pressure
psi psi psi
23000 33300 58000
36000 50500 87000
58000 72500 116000
72000 87000 145000
87000 101500 159500
100000 116000 159500
115000 145000 174000
145000 159000 174000
