D/P Module
4 mA to 20 mA Pressure Transmitter
Model 5900
Effective: September, 2010 (replaces February, 1998)
EX-1710-1
Operation/Calibration Manual
User Guide to Range Calculation, Calibration
Procedures, Zero/Span Adjustments
for Differential Pressure Transmitters
Multiple Tank Level Display
KING-GAGE, A NOSHOK Company I 1010 West Bagley Road, Berea, Ohio 44017 I Ph: 855-367-2494 I www.king-gage.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KING-GAGE 5900 and is the answer not in the manual?

Questions and answers

Summary of Contents for NOSHOK KING-GAGE 5900

  • Page 1 Effective: September, 2010 (replaces February, 1998) EX-1710-1 Operation/Calibration Manual User Guide to Range Calculation, Calibration Procedures, Zero/Span Adjustments for Differential Pressure Transmitters Multiple Tank Level Display KING-GAGE, A NOSHOK Company I 1010 West Bagley Road, Berea, Ohio 44017 I Ph: 855-367-2494 I www.king-gage.com...
  • Page 2 Model 5900 D/P Module EX-1710-1 © 2010 King Engineering Corp. All rights reserved. The information contained in this manual was accurate at the time of release. Specifications are subject to change without notice. WARRANTY—All King Engineering products are guaranteed to be free from defects in material and workmanship for one year from the date of purchase.
  • Page 3: Table Of Contents

    Model 5900 D/P Module EX-1710-1 Table of Contents Specifications ..................... 4 Span Adjustment Range ................4 Pressure Connections ................. 5 Power Requirement ................... 5 Load Capacity at Supplied Voltage ............. 5 Calibration—Zero/Span Adjustment ............6 Low Pressure Input (for differential pressure) ..........8 Calibration Test Setup (Typical) ..............
  • Page 4: Specifications

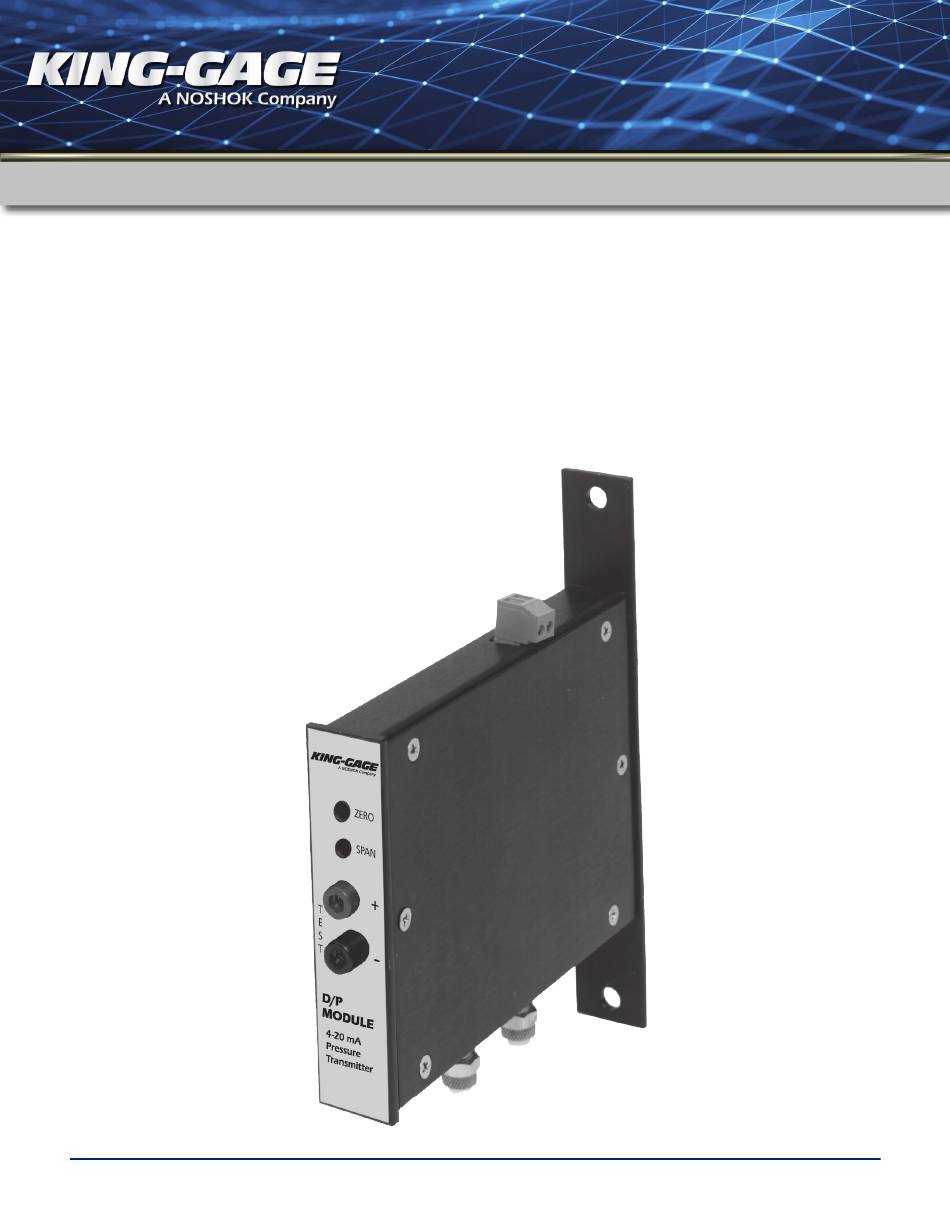

    Model 5900 D/P Module EX-1710-1 Application The D/P Module is a pneumatic-to-current, differential pressure transmitter. It provides a two-wire 4-20 mA output signal suitable for process control or tank level gauging. Model 5900 D/P Module This surface mount transmitter is intended for control room or other protected locations.
  • Page 5: Pressure Connections

    Model 5900 D/P Module EX-1710-1 Pressure Connections Power Requirement D/P Module Transmitter incorporates two (2) 1/8" NPT The D/P transmitter requires a source of DC power (14– 40 ports for HIGH and LOW differential pressure inputs. Vdc) for operation. Minimum excitation voltage must be no less than 14 Vdc Any receiver installed on the signal vent plug for atmospheric reference (or low pressure loop (meters, data loggers, controllers, etc.) must be taken...
  • Page 6: Calibration-Zero/Span Adjustment

    Model 5900 D/P Module EX-1710-1 Test Point Terminals (TP1, TP2)—Test meter terminals In-Process Zero/Span Adjustment are provided (see diagram) for measuring the output signal It is possible to make adjustments to the zero setting while without disturbing the signal loop. Do not connect any the D/P transmitter is installed at the tank.
  • Page 7 Model 5900 D/P Module EX-1710-1 D/P Range Adjustment DIP Switch Settings DIP Switch The D/P transmitter span can be adjusted from 70% Maximum mA to 140% of the nominal range indicated by the model Output number. (Refer to Model No. Designation on page 3.) This 1 2 3 4 is how the transmitter’s pressure range can be changed for a specific application.
  • Page 8: Low Pressure Input (For Differential Pressure)

    Model 5900 D/P Module EX-1710-1 Low Pressure Input Coarse Range Setting—Alternate Version Previous versions of the D/P transmitter employ similar DIP switches, but only offer 5 increments of coarse adjustment. Internal Tank Pressure or Vacuum With these versions, the span potentiometer offers greater In a closed, pressurized or evacuated tank, it is necessary to range of adjustment.
  • Page 9: Calibration Test Setup (Typical)

    Model 5900 D/P Module EX-1710-1 Calibration Test Setup (Typical) This D/P transmitter has a specified accuracy of ± 0.15%. To ensure your calibration maintains this degree of accuracy, 20.00 the equipment used to check zero and span settings must conform to the recommendation listed below. Use of equipment with less than specified accuracy figures will not VOLTS AC provide acceptable results.
  • Page 10: Pressure Range Calculation

    Model 5900 D/P Module EX-1710-1 Pressure Range Calculation A second tank gauging application is illustrated in Figure 2. The “reserve” represents the distance from the lowest There are two simple equations that can be used to point on the bottom of the tank to the installed sensor. determine the actual range (span) required for the “Full”...
  • Page 11: Troubleshooting

    Model 5900 D/P Module EX-1710-1 Troubleshooting No signal • Check that Vdc power is connected to the signal loop circuit (V+ at transmitter + signal terminal). • Polarity reversed- check by reversing the + and - leads at the input terminals. Output greater than 20.0 mA •...
