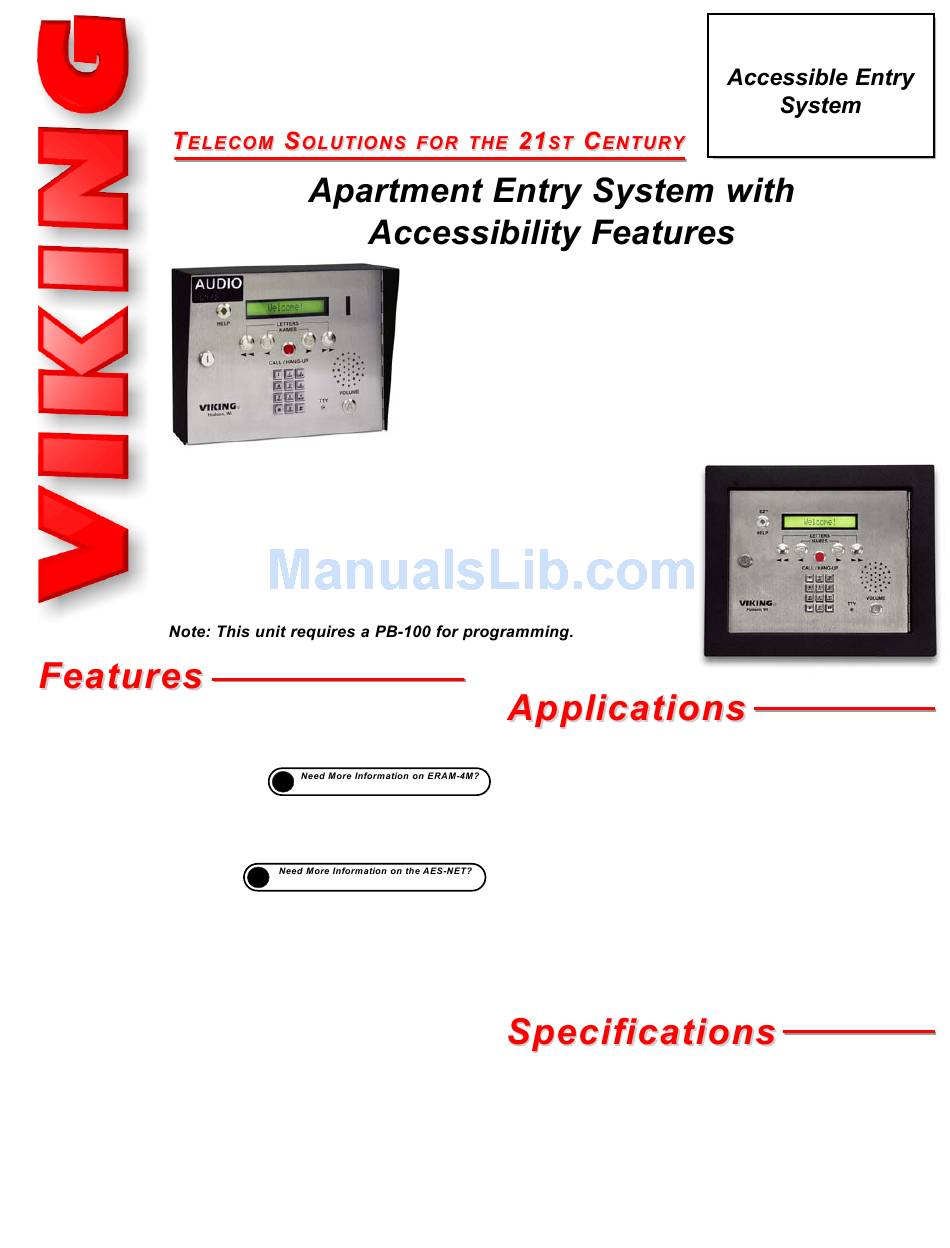

AES-2000S Surface Mount
nication has been established, the tenant can activate a remote door
strike by entering a Touch Tone command. A second relay is also pro-
vided to operate an automatic door. The AES-2000 will also support
keyless entry at the door via its built-in keypad, or by adding Wiegand-
type proximity card readers, such as the Viking HID-1.
The unit is available in flush (AES-2000F) and surface mount (AES-
2000S) configurations and features a highly vandal resistant housing.
• 16 position, back-lit display with 1/2" tall characters
• Non-volatile digital voice announcer
• Factory configured to handle 75 apartments (expandable
to 525 apartments using
ERAM-4M expansion kits)
• Non-volatile data memory for names, phone numbers
and access codes
• Volume control
• AES-NET card reader
interface now included
• TTY jack for connection to personal teletypewriter (TTY)
• Postal lock switch input
• Available in surface mount (AES-2000S) or flush mount
(AES-2000F) configurations
• Keyless entry capability
• 5 Amp door strike/magnetic lock control relays
• Vandal resistant features:
- 12 gauge stainless steel front panel
- 1/4" thick abrasion resistant polycarbonate display lens
- Metal keypad and push button switches
- Front panel lock
- Speaker protection screen
• Weather resistant features:
- Conformal coated circuit board
- Gasketing behind lens, speaker, keypad and perimeter
of front panel
- Sealed switches and keypad
The AES-2000 Accessible Entry System provides both audio and visu-
al assistance for those with disabilities.
The LCD display with large 1/2" tall characters is back-lit and will display
a directory of tenants as well as directions and prompts. A built in voice
recorder and announcer can also provide a supporting audio message.
When the EZ™ Access button is pressed, instructions on how to use the
system are both displayed and announced.
The built in directory can support up to 525 tenant names and phone
numbers and will dial a pre-programmed phone number upon selection
of a tenant. Once two-way commu-
?
Call (715) 386-4345 and select 854.
?
Call (715) 386-4345 and select 196.
P
r
a
c
t
i
c
e
P
r
a
c
t
i
c
e
AES-2000F
Flush Mount
• High rise apartment buildings
• Condos
• Senior citizen buildings
• Assisted care centers
• Retirement homes
• Gated communities
P
P
h
t
t
p
:
/
/
w
w
w
.
h
t
t
p
:
/
/
w
w
w
.
Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided
Dimensions: AES-2000S (Surface): 311.4mm x 245.36mm x
107.9mm (12.26" x 9.66" x 4.25"), AES-2000F (Flush): 383.5mm
x 320mm x 82.55mm (15.1" x 12.6" x 3.25")
Shipping Weight: 7.7kg (17 lbs)
Environmental: -26° C to 54° C (-15° F to 130° F) with 5% to
95% non-condensing humidity (see Installation for details)
Display: 16 position, 0.5" x 4.25" back-lit LCD
Relay Contacts: 5A @ 30V DC/250V AC maximum
Connections: (14) cage clamp screw terminals
AES-2000
AES-2000
September 15, 2008
h
o
n
e
.
.
.
7
1
5
.
3
8
6
h
o
n
e
.
.
.
7
1
5
.
3
8
6
v
i
k
i
n
g
e
l
e
c
t
r
o
n
i
c
s
v
i
k
i
n
g
e
l
e
c
t
r
o
n
i
c
s
.
8
8
6
1
.
8
8
6
1
.
c
o
m
.
c
o
m
Advertisement
Table of Contents
Related Manuals for Viking AES-2000F
Summary of Contents for Viking AES-2000F
- Page 1 Wiegand- type proximity card readers, such as the Viking HID-1. The unit is available in flush (AES-2000F) and surface mount (AES- 2000S) configurations and features a highly vandal resistant housing.
-
Page 2: Returning Product For Repair
Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of one year from the date of purchase from any authorized Viking distributor or 18 months from the date manufactured, which ever is greater. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016. - Page 3 A. Flush Mount Chassis (AES-2000F) The AES-2000F comes with a zinc-plated steel rough-in box and a black powder-painted steel mounting ring. The rough-in box is meant to be framed into the wall. Make sure the outer edge of the box is within 1/4 inch of the finished surface of the wall, but not protruding past the surface level.
- Page 4 B. Surface Mount Chassis (AES-2000S) The AES-2000S comes with a black powder painted steel surface mount chassis. A knockout is provided on the bot- tom of the chassis as an alternate wire entrance. The four outer holes on the back of the chassis are for mounting the box to the wall.
-
Page 5: Wiring Connections
This programming is done through the telephone line interface using the PB-100 with special software. This allows either remote programming from a distant location, or local programming using the Viking DLE-300 line simulator. The PB-100 is connected to a serial port of a P.C. -
Page 6: Apartment Selection
That code can be used as a keyless code even though keyless codes have been disabled. If the apartment phone line is wired through a Viking C-3000, the phone number field must start with a “C”. The list can be sorted according to name, apart- ment number, phone number, or code numbers by selecting the "Sort"... - Page 7 2. Download Names Screen 3. Download Statistics Screen The Download Statistics screen (right) allows the user to retrieve the AES-2000’s building entry log. Each time the AES-2000 energizes the door strike, it adds to the log, recording the date, time name/type (tenant allowing the entry) and code (type of actuation).
- Page 8 A TTY jack is available for TTY (teletypewriter) communication between tenants and the door. Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or subsidiaries assume no responsibility for errors and omissions contained in this information.
