Instructions for use

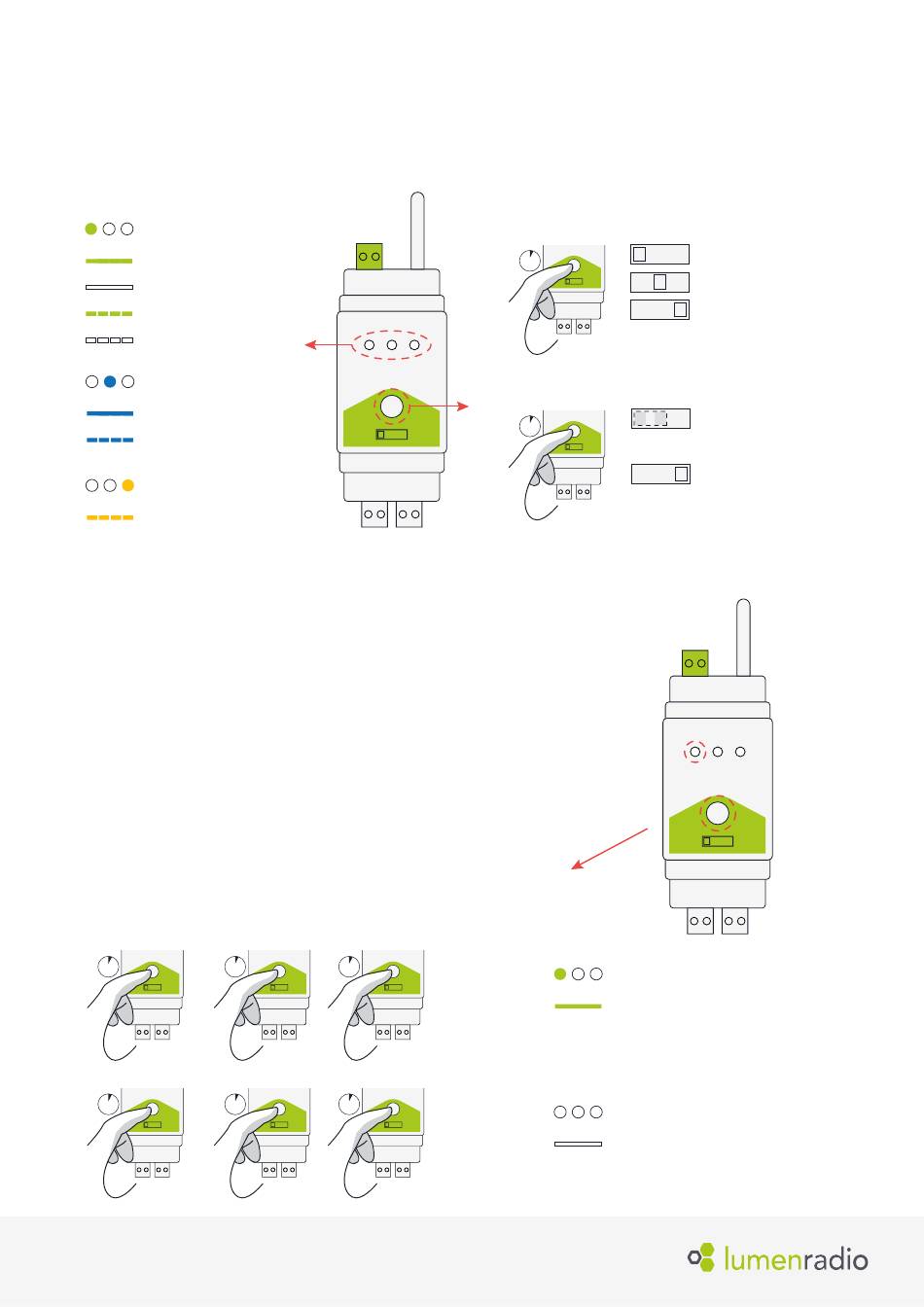

W-DALI DIN RAIL OPERATION
Power ok, wireless DALI mode
Power ok, DALI forward mode
Linking
Linking
App mode - connected
Available for connecting with phone
DALI data detected
W-DALI DIN RAIL MODES
Green LED indicates LumenRadio wireless DALI mode
for DALI transparent operation. This is the default mode.
White LED indicates DALI forward frame mode for basic
lighting control setups. In this mode only DALI forward
frames will be sent.
Only the W-DALI DIN rail requires modes settings, no
additional settings are needed for the W-DALI node.
>5s
<5s
>5s
<5s
Wireless Without Worries
>5s
>5s
<1s
<1s
Power OK, wireless DALI mode
Power OK, forward frame mode
Link subnet 1
Link subnet 2
Connect with phone
Stop linking and go to
secure mode
Non connectable with phone
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LumenRadio W-DALI
Summary of Contents for LumenRadio W-DALI
- Page 1 White LED indicates DALI forward frame mode for basic lighting control setups. In this mode only DALI forward frames will be sent. Only the W-DALI DIN rail requires modes settings, no additional settings are needed for the W-DALI node. >5s >5s...
- Page 2 To manually link W-DALI nodes to the system, follow these steps: 1. On both the W-DALI DIN rail and W-DALI node, set 4. Wait for all W-DALI nodes to join the system. the subnet switch to either subnet 1 or 2. This will al- 5.
- Page 3 2. Change the position of the switch to the opposite setting. 3. Restore power to the W-DALI node. 4. The W-DALI node is now reset and ready to be linked again. AC OFF AC OFF...
- Page 4 An alternative method for manually linking W-DALI nodes in systems with more than 2 subnets: 1. Disconnect the power supply to the W-DALI node 5. Restore power to the next batch of W-DALI nodes that should not be linked. that should be linked to the next W-DALI DIN rail.
