INSTRUCTIONS W-DALI
Instructions for use
X

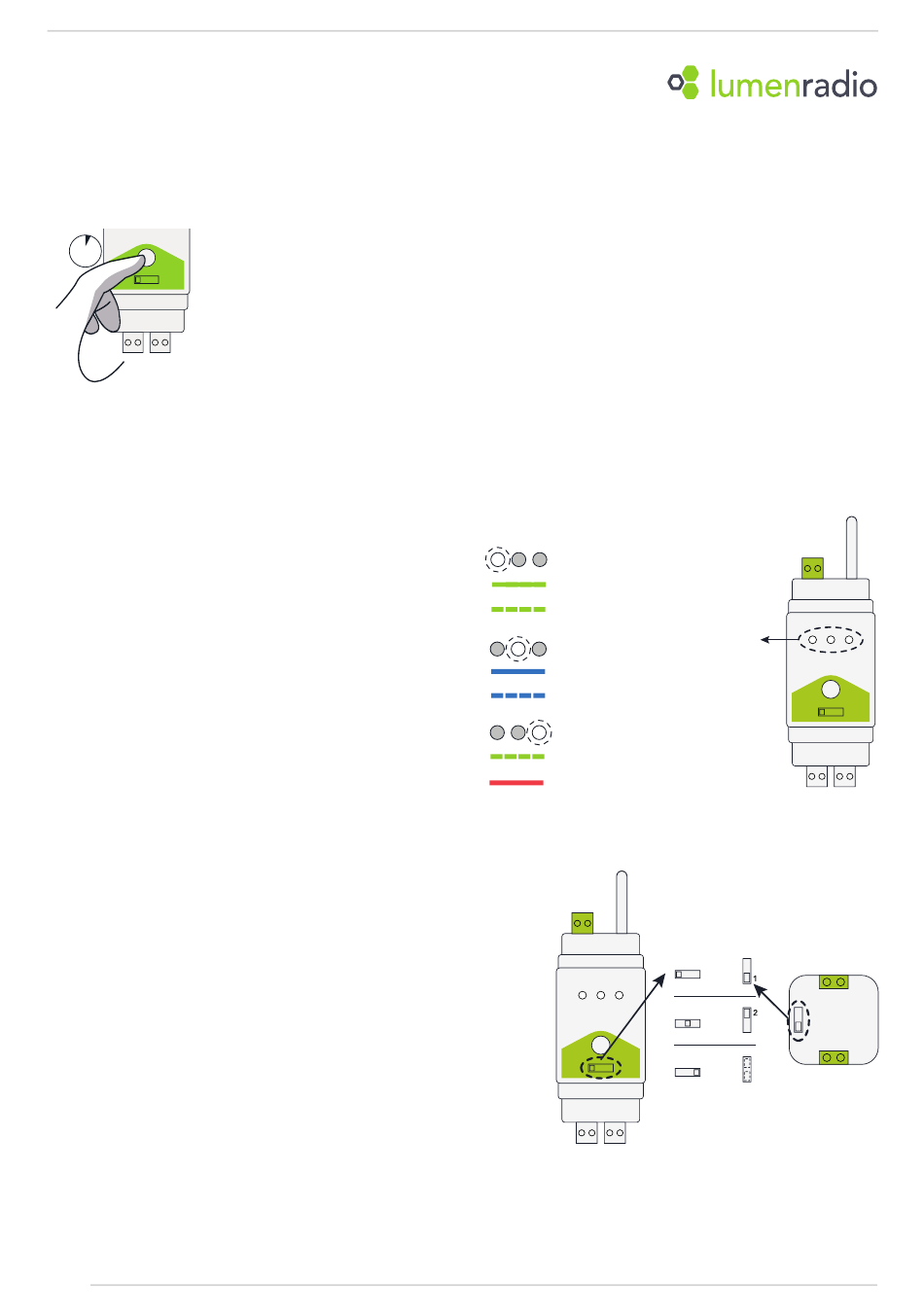

DIN RAIL DEFAULT MODE
The following describes the LED indicators on the DIN rail unit
when operating in Secure DALI Standard Mode (default mode,
applicable in most use cases).
To set the DIN rail unit to Receiver Mode or switch to one of
the special modes (White or Yellow), follow the steps described
on page 6).
Secure DALI standard mode
Linking DALI standard mode
Secure DALI standard mode
(RESET not blocked)
SUBNETS
Linking DALI standard mode
(RESET not blocked)
When using the app for setting up the system, the subnet
switch on the W-DALI Node can be set to any position. The
Secure DALI forward mode
subnet setting does not affect the configuration or operation
Linking DALI forward mode
during setup with the app. See page 2 for more details.
When not using the app for setup, the subnets (Subnet 1 and
Subnet 2) on the W-DALI devices are used to create a mesh
App mode - connected
network. During linking, a W-DALI Node will join a DIN rail with
App mode - connectable
the same subnet. See page 3 for more details.
DALI data detected
DALI data detected
DALI data detected
DALI error
1
DIN rail Button press intervals
These will be referred to in later parts of
the instruction.
P1 = push the button for 1s.
P5 = push the button for 5-10s.
P10 = push the button for 10-15s.
P15 = push the button for more than 15s.
Secure DALI standard mode
Linking DALI standard mode
Secure DALI standard mode
Secure DALI standars mode
(RESET not blocked)
Linking DALI standard mode
Linking DALI standard mode
(RESET not blocked)
Secure DALI forward mode
Linking DALI forward mode
App mode - connected
App mode - connected
App mode - connectable
App mode - connectable
DALI data detected
DALI data detected
DALI data detected
DALI data detected
DALI error
DALI error
Subnet 1
Subnet 2
App
