8' x 24' Chicken Coop Plan
Up to 50 chickens

Advertisement

loading
Need help?

Need help?

Do you have a question about the Chicken Coop Plan 8x24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EASY COOPS Chicken Coop Plan 8x24

Summary of Contents for EASY COOPS Chicken Coop Plan 8x24

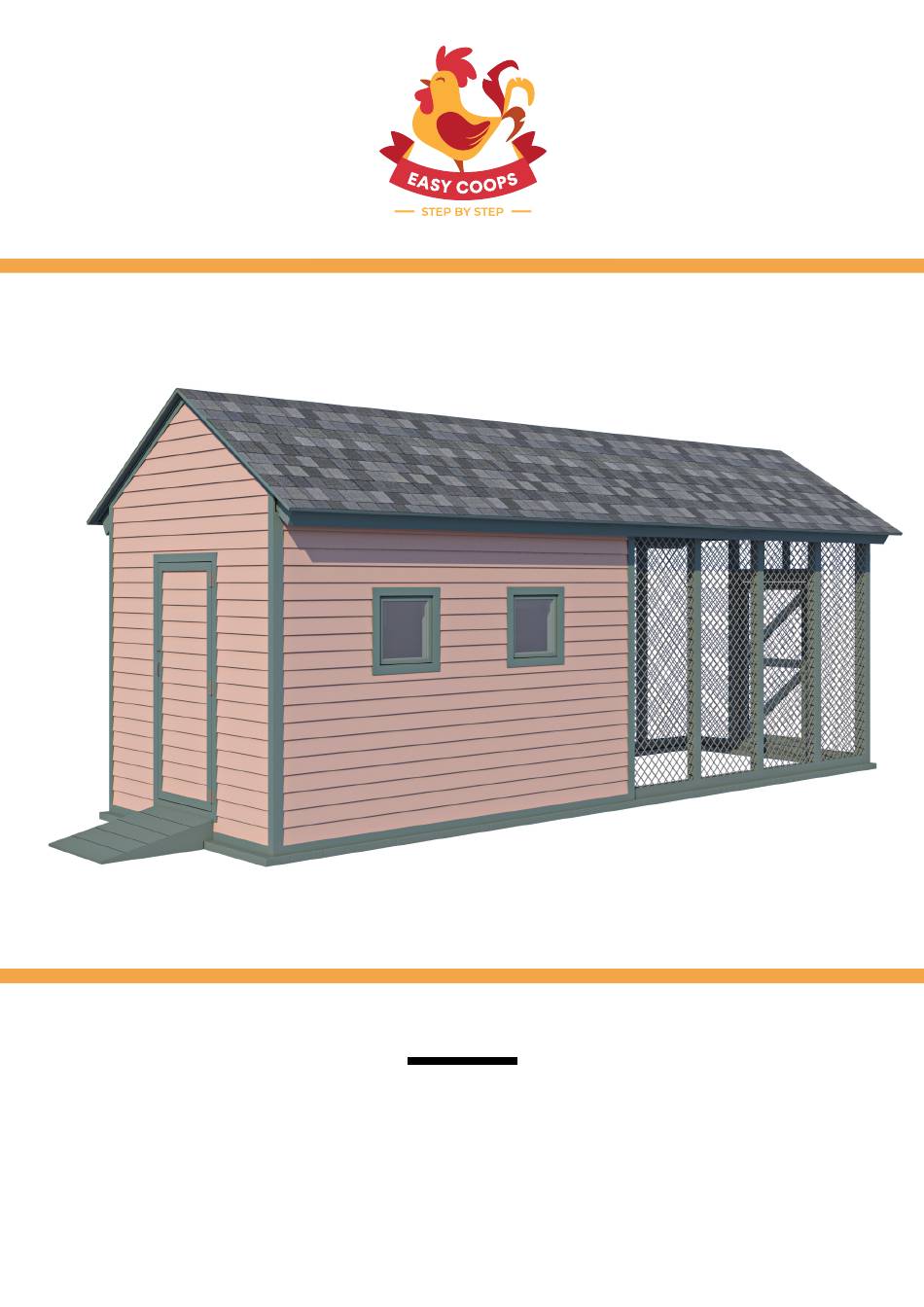

  • Page 1 8' x 24' Chicken Coop Plan Up to 50 chickens...
  • Page 2 Compare Free vs. Premium plan Free plan Premium edition Pages Illustrations for Each Step Print Ready Step By Step Instructions Full Materials and Cuttings List Additional Illustrations Additional Blueprints Tools List Fastening Elements List Technical Support TRY PREMIUM...

  • Page 3: Material List

    24'x8' chicken coop material list Walls Exterior Siding Site Preparation Concrete • Pressure-Treated Lumber • Bricks • Wood siding boards • Top Frame Bottom Frame • Pressure-Treated Lumber • Pressure-Treated Lumber Fasteners & Hardware • Plywood Walls Frames • Corner braces •...
  • Page 4 STEP 1 Framing the Coop's Floor 1.1 Assemble the frame using 1 1/2" x 7 1/4" pressure-treated lumber. You will need eight boards cut to 7'-6 1/4" that will be the joist. 1.2 Secure the beams with 8x3" wood screws. 1.3 Using a speed square or carpenter's square, check the corners to make sure they are 90°.
  • Page 5 STEP 2 Assemble Side Wall Frames 2.1 Using 1 1/2" x 3 1/2", 1 1/2" x 5 1/2" and 3 1/2" x 3 1/2" pressure-treated lumber, construct right side wall frame using the drawing below as a reference. For each wall you will need nine boards cut to 6'-11", four boards cut to 5'-1/2"...
  • Page 6 STEP 3 Assemble Front and Back Wall Frames 3.1 Using 1 1/2" x 3 1/2" and 1 1/2" x 5 1/2" pressure-treated lumber, construct front wall frame using the drawing below as a reference. You will need six boards cut to 6'-11" and two boards cut to 5'-10 1/2" that will be studs, two boards cut to 2'-3 1/4"...
  • Page 7 STEP 4 Assemble Aviary Side Wall Frames 4.1 Using 1 1/2" x 3 1/2" and 3 1/2" x 3 1/2" pressure-treated lumber, construct side wall frames for aviary using the drawing below as a reference. For each side wall you will need four boards cut to 7'-5" that will be the studs and two boards cut to 12'-1 1/4"...
  • Page 8 STEP 5 Assemble Aviary Front Wall Frame 5.1 Using 1 1/2" x 3 1/2", 1 1/2" x 5 1/2" and 3 1/2" x 3 1/2" pressure-treated lumber, construct aviary front wall frame using the drawing below as a reference. You will need four boards cut to 7'-5" and two boards cut to 5'-10 1/2"...
  • Page 9 STEP 6 Assemble the Roof Frame 6.1 Using 1 1/2" x 5 1/2" pressure-treated lumber, cut thirty eight rafters 5'-5 3/4" long according to the dimensions in drawings below. 6.2 Using 1 1/2" x 3 1/2" pressure-treated lumber, cut sixteen collar ties 5' long according to the dimensions in drawings below.
  • Page 10 STEP 7 Install Building Paper 7.1 Cover the walls with building paper. You will need 295 sq ft.
  • Page 11 STEP 8 Coop's Roof Sheathing Installation 8.1 You will need 285 Sq Ft of building paper and asphalt shingle roofing. 8.2 Cover the plywood and drip edge with building paper. Try to install sheets with 1" overlapping. Use 2" nails to secure the sheets. 8.3 Install asphalt shingle roofing using an industrial stapler.

  • Page 12: Front Wall

    STEP 9 Assemble and Install Front and Back Doors 9.1 Build the door frame using 3/4" x 3 1/2" pressure-treated lumber. You will need two boards cut to 5'-11 1/2" that will be the vertical girts, two boards cut to 2'-1/2" that will be the horizontal girts and one board cut to 5'-9"...
  • Page 13 STEP 10 Assemble and Install Windows You will need to assemble four windows 10.1 Using 1 1/2" x 1 1/2" pressure-treated lumber, assemble the outer frame for the window as shown in the drawing below. You will need four boards cut to 1'-7 1/2" that will be the vertical and horizontal girts. Cut the recesses in each beam for splicing connection and mill a recess for the glass.
  • Page 14 STEP 11 Assemble The Nesting Boxes You will need to assemble two nesting boxes. 11.1 Cut 5/8" plywood for the box according to the drawing. You will need to cut one 10" x 6'-8 3/4" sheet for the top plane, one 1'-8" x 6'-8 3/4" sheet for the bottom plane, one 2'-6"...
  • Page 15 STEP 12 Assemble The Roost You will need to assemble two roosts. 12.1 Assemble the roost using 1 1/2" x 2 1/2" pressure-treated material. You will need two boards cut to 4' and two boards cut to 3'-1". 12.2 Connect the beams with 3" wood screws. 12.3 Install the roost to the walls with the help of 3"...
  • Page 16 STEP 13 Assemble and Install Door Ramp You will need to prepare two ramps: for the front and back doors. 13.1 Using 3/4" x 3 1/2", 3/4" x 5 1/2", 1 1/2" x 3 1/2" and 1 1/2" x 7 1/4" pressure-treated lumber, construct door ramp using the drawing below as a reference.

  • Page 17: Final Touches

    STEP 14 Final Touches Now that your chicken coop is all done, you are ready to decorate it any way you want using your favorite paint, stain, or preservative.
  • Page 18 Compare Free vs. Premium plan Free plan Premium edition Pages Illustrations for Each Step Print Ready Step By Step Instructions Full Materials and Cuttings List Additional Illustrations Additional Blueprints Tools List Fastening Elements List Technical Support TRY PREMIUM...
  • Page 19 For more great HOW-TO plans please visit: https://easycoops.com/ Copyright The text and illustrations that appear here are the exclusive property of shedplans.org and are protected by federal copyright laws. The duplication, sale or distribution of any portion of these plans without prior written consent from the original designer will be subject to the appropriate penalties for copyright infringement.
