Summary of Contents for EASY COOPS Chicken Coop Plan 4x6

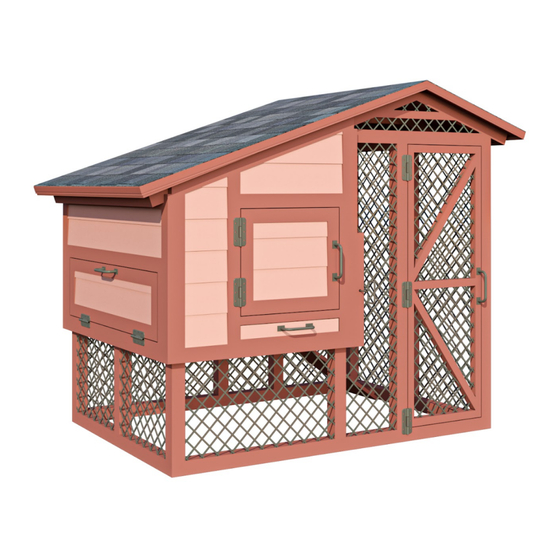

- Page 1 4´x 6´ Chicken Coop Plan Up to 10 chickens...
- Page 2 Compare Free vs. Premium plan Free plan Premium edition Pages Illustrations for Each Step Print Ready Step By Step Instructions Full Materials and Cuttings List Additional Illustrations Additional Blueprints Tools List Fastening Elements List Technical Support TRY PREMIUM...
-
Page 3: Material List
4'x6' chicken coop material list Walls Exterior Siding Site Preparation Concrete • Pressure-Treated Lumber • Bricks • Wood siding boards • Top Frame Bottom Frame • Pressure-Treated Lumber • Pressure-Treated Lumber Fasteners & Hardware • Plywood Walls Frames • Corner braces •... - Page 4 STEP 1 Assemble the Main Frame 1.1 Using 2 1/2˝ x 2 1/2˝ pressure-treated lumber, install the wall studs using the drawing below as a reference. You will need seven boards cut to 4´-7˝ and two boards cut to 3´-9 1/2˝ that will be studs, two boards cut to 3´-7˝...
- Page 5 STEP 2 Assemble The Top Plates 2.1 Assemble the top plates using 2 1/2˝ x 2 1/2˝ pressure-treated lumber. You will need two boards cut to 2´-7˝, two boards cut to 2´-9 1/2˝ and three boards cut to 4´. 2.2 Connect the beams with 3˝ wood screws. 2.3 Using a speed square or carpenter's square, check the corners to make sure they are 90°.
- Page 6 STEP 3 Assemble Back Side Wall Frame 3.1 Using 1 1/2˝ x 2 1/2˝ pressure-treated lumber, construct back side wall frame using the drawing below as a reference. You will need two boards cut to 1´-11˝ that will be studs, one board cut to 10 1/2˝ that will be top plate and two boards cut to 1´...
- Page 7 STEP 4 Assemble Left Side Wall Frame 4.1 Using 1 1/2˝ x 2 1/2˝ pressure-treated lumber, construct left side wall frame using the drawing below as a reference. You will need two boards cut to 1´-11˝ that will be studs. 4.2 Connect the beams with 3˝...
- Page 8 STEP 5 Assemble Right Side Wall Frame 5.1 Using 1 1/2˝ x 2 1/2˝ pressure-treated lumber, construct right side wall frame using the drawing below as a reference. You will need one board cut to 2´-11˝ that will be stud and one board cut to 1´-9 3/4˝...
- Page 9 STEP 6 Assemble Front Side Wall Frame 6.1 Using 1 1/2˝ x 1 1/2˝ pressure-treated lumber, construct the front side wall frame using the drawing below as a reference. You will need one board cut to 1´-11˝ that will be a stud, one board cut to 1´-9˝ that will be a litter tray header and one board cut to 8 1/2˝...
- Page 10 STEP 7 Assemble the Roof Frame 7.1 Using 1 1/2˝ x 2 1/2˝ pressure-treated lumber, cut four rafters 2'-1/2˝ long and four rafters 5´ long according to the dimensions in drawings below. 7.2 Using 1 1/2˝ x 1 1/2˝ pressure-treated lumber, cut four collar ties 1´-8˝ long according to the dimensions in drawings below.
- Page 11 STEP 8 Install Plywood for the Nesting Box 8.1 Cut sheet of 5/8˝ plywood for the nesting box sheathing using the drawing below as a guide. You will need one 1´ x 4´ sheet for the top and two 1´ x 1´ sheets for inner partitions. 8.2 Secure the plywood with 2˝...
- Page 12 STEP 9 Assemble and Install Front Door 9.1 Build the door frame using 3/4˝ x 2 1/2˝ pressure-treated lumber and secure with 5˝ wood screws. You will need two boards cut to 1´-6 3/4˝ that will be the vertical girts, two boards cut to 1´-3 3/4˝ that will be the horizontal girts and one board cut to 1´-8 3/4˝...
- Page 13 STEP 10 Assemble and Install Window 10.1 Using 1 1/2˝ x 1 1/2˝ pressure-treated lumber, assemble the outer frame for the window as shown in the drawing below. You will need two boards cut to 11 1/2˝ that will be the horizontal girts and two boards cut to 1´-3 1/2˝...
- Page 14 STEP 11 Coop's Roof Sheathing Installation 11.1 You will need 34 Sq Ft of building paper and asphalt shingle roofing. 11.2 Cover the plywood and drip edge with building paper. Try to install sheets with 1˝ overlapping. Use 2˝ nails to secure the sheets. 11.3 Install asphalt shingle roofing using an industrial stapler.
- Page 15 STEP 12 Assemble and Install Aviary's Door 12.1 Build the door frame using 1 1/2˝ x 1 1/2˝ pressure-treated lumber and secure with 5˝ wood screws. You will need two boards cut to 4´-6 3/4˝ that will be the vertical girts, three boards cut to 1´-3 3/4˝...
- Page 16 STEP 13 Assemble The Litter Tray 13.1 Assemble the litter tray using 3/4˝ x 1 1/2˝ and 3/4˝ x 2 1/2˝ pressure-treated lumber and 5/8˝ plywood. You will need two boards cut to 3´-9 1/2˝, one board cut to 1´-5 3/4˝ and one board cut to 1´-8 3/4˝.
- Page 17 STEP 14 Assemble The Roost 14.1 Assemble the roost using 3/4˝ x 2 1/2˝ and 1 1/2˝ x 1 1/2˝ pressure-treated lumber. You will need two boards cut to 3´-10 1/4˝ and four boards cut to 1´-9˝. 14.2 Connect the beams with 2˝ wood screws. 14.3 Install the roost at the studs with the help of 3˝...
- Page 18 STEP 15 Assemble The Chicken Ladder 15.1 Assemble the ladder using 3/4˝x 3/4˝, 3/4˝ x 1 1/2˝ and 3/4˝ x 5 1/2˝ pressure-treated lumber. You will need one board cut to 1´, two boards cut to 3´ and four boards cut to 11˝. 15.2 Connect the beams with 2˝...
-
Page 19: Final Touches
STEP 16 Final Touches Now that your chicken coop is all done, you are ready to decorate it any way you want using your favorite paint, stain, or preservative. - Page 20 Compare Free vs. Premium plan Free plan Premium edition Pages Illustrations for Each Step Print Ready Step By Step Instructions Full Materials and Cuttings List Additional Illustrations Additional Blueprints Tools List Fastening Elements List Technical Support TRY PREMIUM...
- Page 21 For more great HOW-TO plans please visit: https://easycoops.com/ Copyright The text and illustrations that appear here are the exclusive property of shedplans.org and are protected by federal copyright laws. The duplication, sale or distribution of any portion of these plans without prior written consent from the original designer will be subject to the appropriate penalties for copyright infringement.
