HumanCentric 101-1064 Manual

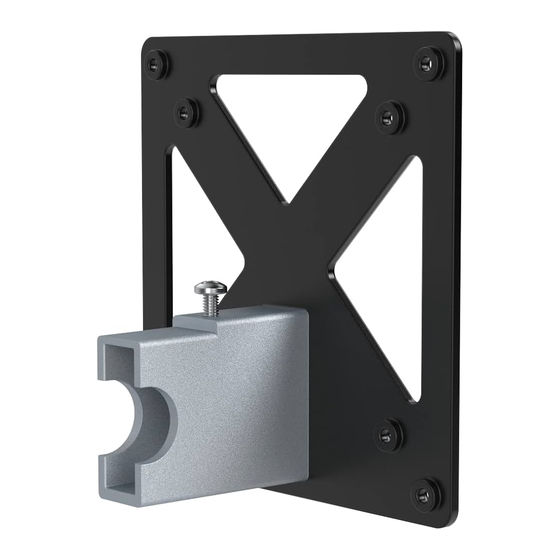

Vesa adapter for hp m-series monitors

VESA Adapter for HP M-Series Monitors

Model 101-1064

Full product speciﬁcations: www.humancentric.com/101-1064

Need help? Contact support: support@humancentric.com

To reduce the risk of injury to persons, read all important precautions and warnings listed below.

HumanCentric assumes no responsibility for personal injury or property damage sustained by or through

the use of this product:

1. Read all instructions carefully.

2. Incorrect installation may lead to damage or serious injury. Ensure the product is secured before use.

3. If using a VESA stand or VESA arm, ensure it can support the combined weight of the bracket, monitor,

and any mounted devices.

Compatible with models:

M22F, M24F, M24FW, M24FD, M24FWA, M27F, M27FD, M27FQ, M27FW, M27FWA, M32F

A (x1)

VESA Adapter Plate

Phillips Screw Driver

WARNING

B (x1)

Monitor Adapter

www.humancentric.com/patents

C (x5)

M4 x 12mm Panhead Screw

D (x2)

M4 x 10mm Flat Head Screw

www.humancentric.com

Table of Contents

Do you have a question about the 101-1064 and is the answer not in the manual?

Page 1 WARNING To reduce the risk of injury to persons, read all important precautions and warnings listed below. HumanCentric assumes no responsibility for personal injury or property damage sustained by or through the use of this product: 1. Read all instructions carefully.
Page 2 Make sure that the adapter is fully pushed on and the button is fully seated in the square cutout. You will hear a “click” when the button seats. click © 2023 HumanCentric Ventures LLC www.humancentric.com...
Page 3 Secure the VESA Adapter Plate (A) to the Monitor Adapter using two ﬂat head screws (D). The screws should sit ﬂush with the plate surface in the countersunk holes. Countersunk Holes © 2023 HumanCentric Ventures LLC www.humancentric.com...
Page 4 Mount the monitor to your VESA Mount using four panhead screws (C). © 2023 HumanCentric Ventures LLC www.humancentric.com...
