• Auto dials 1 (up to 32 digits) programmable
speed dial number
• Multi-number dialer mode adds 5 (up to 16
digits) speed dial numbers
• Touch Tone or pulse dialing
• Touch Tone keypad
• Non-volatile memory (no batteries required)
• Operates on analog PABX and key system
extensions or analog Centrex and C.O. lines
• Programmable 6 digit security code
• Touch Tone programmable
• Vandal resistant features: 1/8" thick stainless
steel panel, armored cable, metal cradle and
sealed metal keypad
• Programmable pre-dial pause
• Blocks fraudulent calls from hand held pocket
dialers
• Limited toll restriction in dumb phone mode
• Hearing aid compatible amplified handset
with sealed push button volume control
• 54" armored handset cord on K-1900-8-EWP
• Optional Enhanced Weather
Protection (EWP)
S
S
C
O
M
O
L
U
T
I
O
N
S
C
O
M
O
L
U
T
I
O
N
S
Attractive, Vandal Resistant,
Hot-Line Phone with Built-in Keypad!

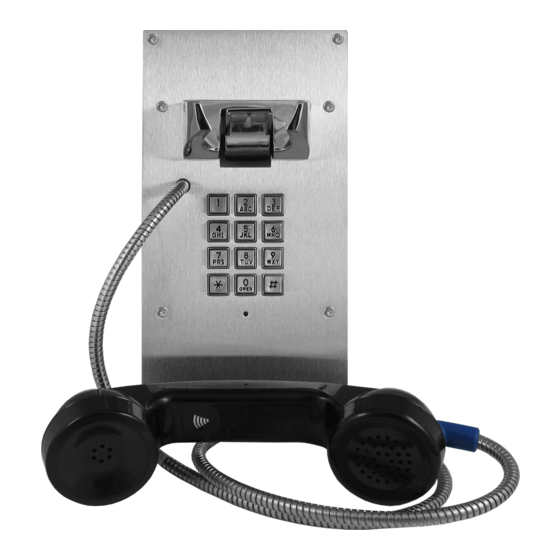

The K-1900-8 panel phone can either auto-dial a phone number each time the
handset is lifted, be used as a multi-number auto-dialer, or be used as a standard
(dumb) phone. The unit will Touch Tone or pulse dial and will not auto-dial on
incoming calls.
The K-1900-8 housing consists of a heavy gauge stainless steel panel, a metal
Touch Tone keypad, an armored cable, a heavy duty handset, and an all metal
cradle. The K-1900-8 can be easily Touch Tone programmed at the shop or
installation site. All programming is stored in non-volatile memory.
For outdoor or harsh environments, the K-1900-8-EWP is available with
Enhanced Weather Protection (EWP). The EWP version includes faceplate,
transmitter and receiver gaskets, hand soldered silicon sealed connections, gel-
filled butt connectors, as well as a urethane potted circuit board with weather
sealed, field-adjustable trim pots and DIP switches for easy on-site programming.
h
o
n
e
.
.
.
7
1
5
.
3
8
6
.
h
o
n
e
.
.
.
7
1
5
.
3
8
6
.
Need More Information on EWP?
?
Call (715) 386-4345 and select 859.
P
r
a
c
P
r
a
c
2
1
C
2
1
C
F
O
R
T
H
E
S
T
F
O
R
T
H
E
S
T
A
p
p
l
A
p
p
l
8
8
6
1
8
8
6
1
• Catalog sales
• Kiosks
• Courtesy and customer service phones
• Automated tellers (ATM's)
• Hot-line reservation phones
• Security and emergency phones
• Replaces leased ringdown circuits
• Gate/entrance communication in noisy
locations (diesel trucks, factory noise, etc.)
h
t
h
t
S
p
e
c
S
p
e
c
Power: Telephone line powered (20V DC/18mA minimum)
Dimensions: Overall - 127mm x 254mm x 102mm (5" x 10" x 4")
Shipping Weight: 1.8 kg ( 4 lbs.)
Operating Temperature: -34°C to 60°C (-30°F to 140°F)
Humidity: Standard - 5% to 95% non-condensing
EWP - Up to 100% condensing
Panel Material: .125 inch thick stainless steel
Handset Cable Length: Standard K-1900-8 - 86cm (34")
Mounting: Flush mount or surface mount with optional VE-5x10
Dial Speed: Touch Tone - Normal = 120ms on/off, Fast = 50ms
on/off; Pulse - Normal = 10 pps, Fast = 20 pps
Connections: (2) gel-filled butt connectors
K-1900-8 and
K-1900-8 and
K-1900-8-EWP
K-1900-8-EWP
t
i
c
e
Hot-Line Panel Phone
t
i
c
e
E
N
T
U
R
Y
E
N
T
U
R
Y
February 20, 2007
