ABB DB BREAKER Retrofitting Manual page 7

2

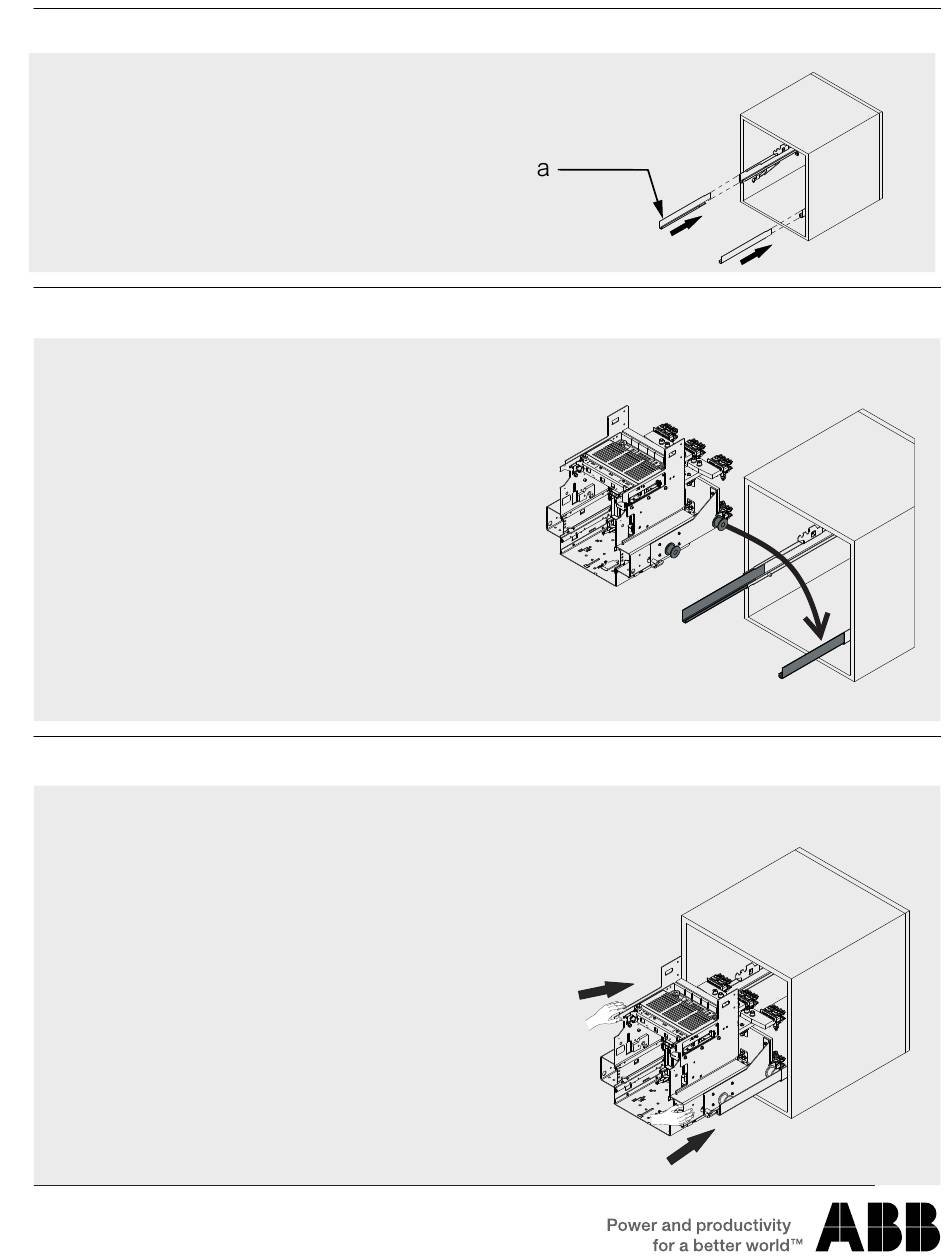

Ÿ Place the Extended cradle rails
(a)(fig. 3) onto Switchgear rails
until the side levers drop down to
lock the switchgear rails
3
WARNING: THE CiC ADAPTER COULD DROP DURING THIS OPERATION. ATTACH APPROPRIATELY SIZED
AND RATED LIFTING DEVICES WHICH EXCEED THE RATINGS LISTING IN TABLE B ON PAGE 1
BEFORE PROCEEDING.
Ÿ Lower the CiC adapter onto the rails from the
lifting points as shown so that the rollers rest in
the guide rails.
4
Ÿ Push the CiC adapter on the cradle rails into
the switchgear cell.
Fig. 3
Fig. 4
Fig. 5
