2GIG-PHB1-345
PERSONAL HELP BUTTON
INSTALLATION INSTRUCTIONS
The Personal Help Button Pendant (2GIG-PHB1-345) is a battery-powered transmitter,
designed for use with the provided panel. The transmitter is referred to as the "Pendant".
The panel is the "Console".Both Pendant and Console together is referred to as a "System".
The Personal Help Button Pendant is a miniature, water-resistant, (Water-resistance is not
tested by ETL) supervised transmitter designed for use with compatible 345MHz receivers
(security panels, PERS consoles, and Libris Smart Cradles). The transmitter ships attached
to a permanent mounting accessory, which can be worn on its adjustable lanyard with a
breakaway release.

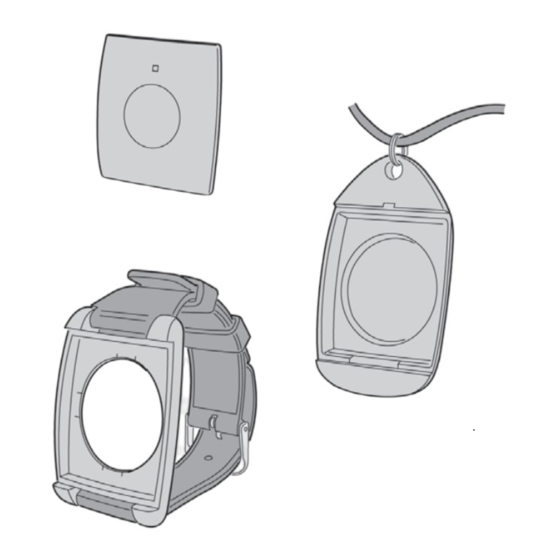

Figure 1. Personal Help Button
For further information regarding testing recommendations, safety precautions, use, and
operation of the Pendant and the Console, consult the more detailed instructions included
with the Console and also found in the literature section of the following link: www.
numera.com/product-manuals
Figure 2. Pendant Features and Functions
SNAP TRANSMITTER
WRISTBAND
STYLE
TRANSMITTER WORN ON THE WRIST
AND ACTIVATED BY PRESSING THE
BUTTON WITH THE OTHER HAND.
Box Contents
Verify that the package includes the following:
1 - Personal Help Button
1 - Adjustable Lanyard with Breakaway Release
1 - Wristband Mount
INTO HOLDER
TRANSMITTER
RELEASE SLOT
2-COLOR
SIGNAL
INDICATOR
GREEN = BATTERY OK
RED = BATTERY LOW
HELP
BUTTON
TRANSMITTER WORN WITH THE
BUTTON TOWARDS THE CHEST
TO ALLOW EASY THUMB PRESS
ACTIVATION, AND PROVIDE THE
WEARER WITH A DISCRETELY
STYLED DEVICE.
OPERATION
Initial Activation of Pendant & General Use
When your Pendant arrives, you must immediately call the monitoring service provider
that provided the Pendant to you and ask them to confirm that the Pendant has been
programmed and is properly transmitting.
The Pendant also comes with a Battery Supervision Feature, aimed to identify Systems
that are not functioning, either because the battery has died, or because the Console
connection was lost. To turn the Battery Supervision Feature ON, you must press the
Help Button five times. When you release the Help Button, its LED indicator flashes
GREEN three times to indicate that the Battery Supervisor Feature is working and the
Pendant is active.
Pressing the button should also initiate a two-way voice communication through the
Console with your monitoring services provider. If the two-way voice communication
is not initiated when you press the button, you should call your monitoring service
provider immediately to report the problem.
Once activated, the Pendant should be worn daily and tested weekly, as further explained
in the following Important Safety and Battery Instructions section.
You must be within range of the Console in order for the Pendant to communicate with the
Console, for either emergency or low Pendant battery report.
The operating range of the Pendant is limited. The exact range of a System depends on
the type of Console and other variables, such as the local radio frequency environment.
Depending on these factors, range is expected to be approximately 300 to 500 feet line
of sight. Range can be reduced by walls and other barriers. You can ensure that you
are in range at any time by pressing the button to test the system. Please refer to the
instructions included with your Console and also found in the literature section of the
following link for more information regarding the range of your System: www.numera.
com/product-manuals
The Pendant is designed to be water-resistant. Only the provided breakaway release
lanyard should be used; no other lanyard is approved for use with the Pendant.
The Pendant is sealed and the battery contained therein is not replaceable. When the
battery in the Pendant is low, the LED indicator on the Pendant will display RED, and it
is designed to send a signal to the Console, which will communicate to your monitoring
service provider that your battery is low. Your monitoring service provider should then
contact you to coordinate delivery of a replacement Pendant. As a precautionary measure,
PENDANT in order to ensure that the battery does not deplete before you receive a replacement
STYLE
Pendant, if you see that the light on your Pendant is RED, you should contact your
monitoring service provider to arrange for a replacement Pendant as soon as possible
- DO NOT WAIT for the monitoring service provider to contact you.
The Pendant may be worn around the neck on an adjustable lanyard. IF YOU
WEAR THE LANYARD AROUND YOUR NECK AND IT BECOMES ACCIDENTALLY
ENTANGLED, AS WITH ANY CORD WORN AROUND THE NECK, IT MAY PRESENT
A CHOKING OR STRANGULATION HAZARD THAT COULD RESULT IN SERIOUS
INJURY OR DEATH. FOR THIS REASON, USE ONLY THE PROVIDED BREAKAWAY
LANYARD. TO REDUCE RISK OF STRANGULATION, THE PROVIDED LANYARD IS
DESIGNED TO BREAK APART UNDER CERTAIN CONDITIONS. MODIFIED, OR OTHER
LANYARDS, ARE NOT TO BE USED. These risks apply especially to subscribers who
may use wheelchairs, walkers, beds with guard rails, or similar objects such as
door knobs with protrusions on which a lanyard could become entangled. Users and
caregivers should exercise care with the lanyard to ensure it does not get caught or
tangled in some such equipment or other objects.
TO REDUCE THE RISK OF SEVERE INJURY OR DEATH TO PERSONS, REVIEW
IMPORTANT
THIS SAFETY INFORMATION PRIOR TO USE.
